DOREL ASIA
Model No:
DA6527 (ESPRESSO)
NURSERY IN A BOX
UPC CODE:
3 IN 1 CRIB
0-65857-16660-6
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTANC
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PRODU
Advertisement
Table of Contents
Related Manuals for Baby Relax DA6527
Summary of Contents for Baby Relax DA6527
- Page 1 DOREL ASIA Model No: DA6527 (ESPRESSO) NURSERY IN A BOX UPC CODE: 3 IN 1 CRIB 0-65857-16660-6 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
- Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part.
- Page 3 Changing Table WARNING FALL HAZARD - To prevent death or serious injury, always keep child within arm's reach. Avoid serious injury. Never leave child unattended. Read all instructions before use of the changing table. KEEP INSTRUCTIONS FOR FUTURE USE. DO NOT use the changing table if it is damaged or broken. The changing table is to be used with a changing pad measuring 16 inches X 32 inches and not exceeding 2 inches in thickness (excluding the height of any contoured edges).
- Page 4 NURSERY IN A BOX 3 IN 1 CRIB DA6527 HARDWARE LIST Ø1/4" X 13mm X 75mm Ø1/4" X 13mm X 55mm BOLT BOLT 8 PCS 12 PCS Ø1/4" X 13mm X 15mm Ø1/4" X 13mm X 35mm MATTRESS SUPPORT BOLT...
-
Page 5: Parts List

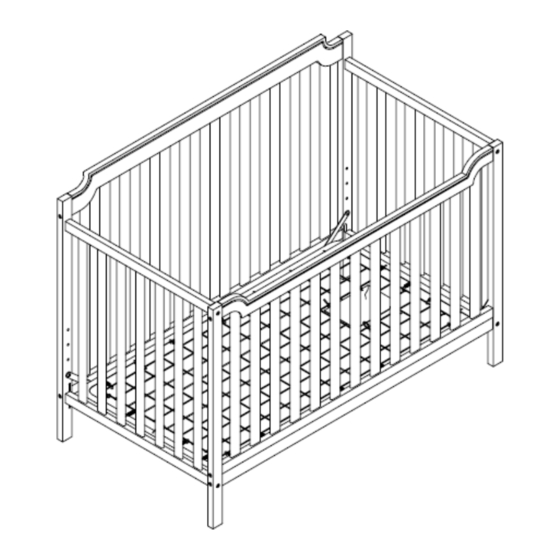

NURSERY IN A BOX 3 IN 1 CRIB DA6527 PARTS LIST FRONT POST BACK POST BACK PANEL LEFT SIDE PANEL 2 PCS 2 PCS 1 PC 1 PC RIGHT SIDE PANEL FRONT PANEL CRIB FRONT RAIL MATTRESS SUPPORT 1 PC... - Page 6 NURSERY IN A BOX 3 IN 1 CRIB DA6527 CRIB ASSEMBLY INSTRUCTION NOTE: When inserting bolts, turn clockwise until tight. Then loosen 1/2 - 3/4 of a turn. After crib is completely assembled, return to each bolt and tighten. Use wax or soap on all bolts to facilitate assembly.
- Page 7 NURSERY IN A BOX 3 IN 1 CRIB DA6527 STEP 1 Attach right back post (B2) to right side panel (E) with bolts (2) and barrel nuts (6) as shown. Use Allen Key (5) to tighten all bolts (2). Repeat this step to attach left back post (B1) to left side panel (D).
- Page 8 NURSERY IN A BOX 3 IN 1 CRIB DA6527 STEP 2 Attach crib front rail (G) to front panel (F) with bolts (2). Use Allen Key (5) to tighten all bolts (2).
- Page 9 NURSERY IN A BOX 3 IN 1 CRIB DA6527 STEP 3 Insert wood dowels (7) and barrel nuts (6) into front panel (F) as shown. Attach left front post (A1) to front panel (F) and crib front rail (G) with bolts (1 & 2) as shown.
- Page 10 NURSERY IN A BOX 3 IN 1 CRIB DA6527 STEP 4 Insert barrel nuts (6) into side panels (D & E) as shown. Attach right side panel (E) to right front post (A2) with bolts (2) using Allen Key (5).
- Page 11 NURSERY IN A BOX 3 IN 1 CRIB DA6527 STEP 5 Attach mattress support (H) to the posts with mattress support bolts (3). Use Allen key (5) to tighten the mattress support bolts (3). ③ INCORRECT- Raised edge should face...
- Page 12 NURSERY IN A BOX 3 IN 1 CRIB DA6527 STEP 6 Insert barrel nuts (6) into back panel (C ). Insert wood dowels (7) into left back posts (B1 & B2). Attach back panel (C) to left back posts (B1 & B2) with bolts (1) and Allen Key (5).
- Page 13 NURSERY IN A BOX 3 IN 1 CRIB DA6527 WARNINGS: * ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES (69CM BY 131CM) WITH A MINIMUM THICKNESS OF 4 INCHES (10CM) BUT NOT EXCEEDING 6 INCHES (15CM).
- Page 14 NURSERY IN A BOX 3 IN 1 CRIB DA6527 FULL SIZE BED ASSEMBLY INSTRUCTION (HEADBOARD ONLY) NOTE: FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAMS ARE FOR REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION. STEP 1 Attach the full size conversion rails (not included) to the assembled headboard (B1,B2 &...
- Page 15 NURSERY IN A BOX 3 IN 1 CRIB DA6527 OPEN CHANGER ASSEMBLY INSTRUCTION...
- Page 16 NURSERY IN A BOX 3 IN 1 CRIB DA6527 STEP 1 Insert wood dowels (7) into upper rail (K). Attach upper rail (K), top panel rail (L), and middle rail (M) to left side frame (I) with bolts (4). Use Allen key (5) to tighten the bolts (4).
- Page 17 NURSERY IN A BOX 3 IN 1 CRIB DA6527 STEP 2 Slide top panel (N) and shelf panels (O) into the grooves of rails (L & M). Make sure they rest inside the grooves of left side frame (I).
- Page 18 NURSERY IN A BOX 3 IN 1 CRIB DA6527 STEP 3 Insert wood dowels (7) into upper rail (K). Attach upper rail (K), top panel rail (L), and middle rails (M) to left side frame (I) with bolts (4). Use Allen key (5) to tighten the bolts (4).
- Page 19 NURSERY IN A BOX 3 IN 1 CRIB DA6527 STEP 4 Insert wood dowels (7) into upper rails (K). Attach right side frame (J) to rails (K, L & M) with bolts (4). Use Allen key (5) to tighten the bolts (4).
- Page 20 NURSERY IN A BOX 3 IN 1 CRIB DA6527 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 21 MODEL #: DA6527 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
