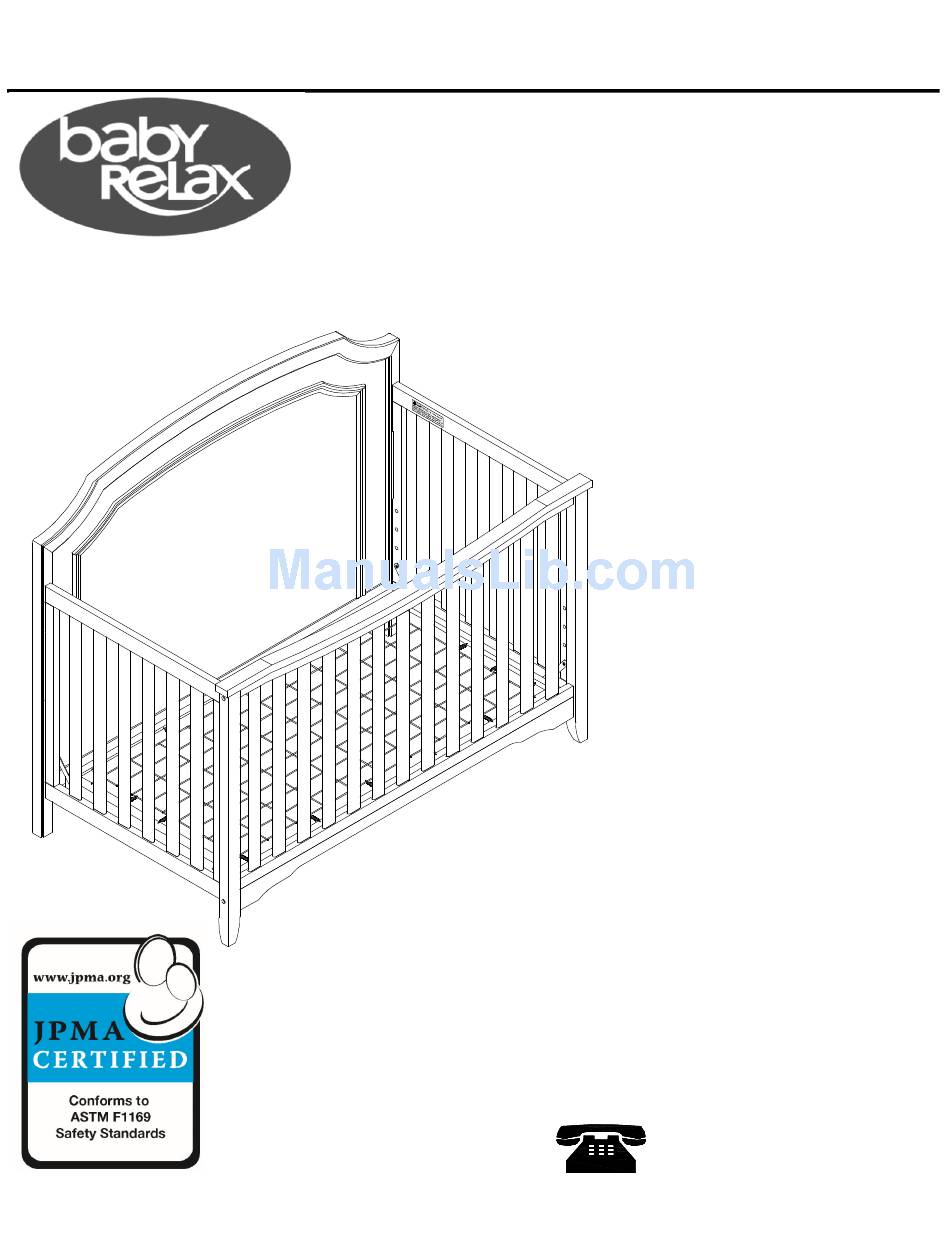

INSTRUCTION MANUAL

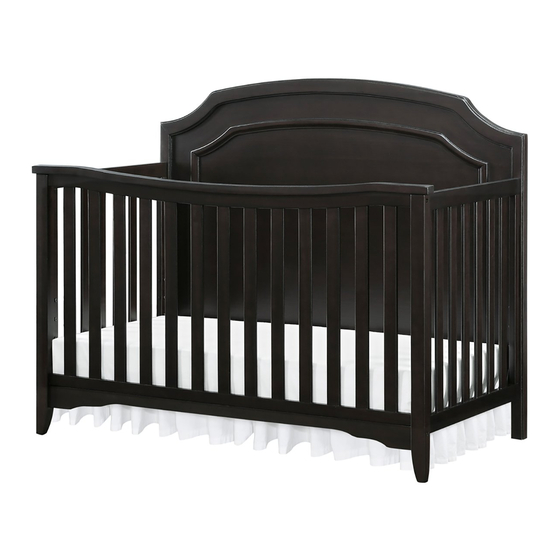

4-in-1 Lakeley Convertible
Crib
If a part is missing or damaged, contact our customer service
_____________________________________
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
department. We will replace the part FREE of charge.
Model No:
DA7253B4E (Espresso)
DA7253B4W (White)
UPC CODE:
0-65857-17020-7
0-65857-17021-4
030-08-3334
030-08-3329
Lot number:
(TAKEN FROM CARTON)
Date of purchase:
Tel #: 1−800−295−1980
E−Mail: das@dorel.com
Fax #: 514−353−7819
DPCI#:
Advertisement
Table of Contents
Related Manuals for Baby Relax DA7253B4W
Summary of Contents for Baby Relax DA7253B4W
- Page 1 INSTRUCTION MANUAL Model No: DA7253B4E (Espresso) DA7253B4W (White) 4-in-1 Lakeley Convertible Crib UPC CODE: 0-65857-17020-7 0-65857-17021-4 DPCI#: 030-08-3334 030-08-3329 Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
- Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No.
- Page 3 NOTES Ensure all parts and components are present before beginning assembly. Assemble on a soft, smooth surface to prevent damage to product finish. Phillips head screwdriver is not included. DO NOT use power tools. CAUTIONS: Adult assembly required. Assembly will require two people. Estimated assembly time: 30 minutes.
- Page 4 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W HARDWARE LIST Ø10mm x 50mm Ø1/4" x 1-3/4" WOOD DOWEL BOLT 14 PCS 6 PCS Ø1/4" x 3-1/8" Ø1/4" x 1/2" BOLT MATTRESS SUPPORT BOLT 8 PCS 16 PCS Ø6mm x 10mm x 1.2mm...
- Page 5 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W PARTS LIST LEFT POST RIGHT POST LEFT SIDE PANEL 1 PC 1 PC 1 PC RIGHT SIDE PANEL BACK PANEL FRONT PANEL 1 PC 1 PC 1 PC FRONT RAIL MATTRESS SUPPORT 1 PC...
- Page 6 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W STEP 1: Insert the wood dowels (1) into the left and right side panels (C & D). Attach the left and right posts (A & B) to the side panels (C & D) with bolts (2) and spring...
- Page 7 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W STEP 2: Insert wood dowels (1) into the left side panel (C). Attach the left side panel (C) to the back panel (E) with bolts (3) and spring washers (7) as shown. Use Allen key (6) to tighten the bolts.
- Page 8 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W STEP 3: Attach the mattress support (H) to the left and right side panels (C & D) with mattress support bolts (4) and spring washers (5). Use Allen key (6) to tighten the bolts.
- Page 9 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W STEP 4: Insert wood dowels (1) into the front rail (G). Attach the front rail (G) to the front panel (F) with bolts (2) and spring washers (7) as shown. Use Allen key (6) to tighten the bolts.
- Page 10 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W STEP 5: Attach the front panel (F) to left and right posts (A & B) with wood dowels (1), bolts (3) and spring washers (7) as shown. Use Allen key (6) to tighten the bolts.
- Page 11 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W DAY BED ASSEMBLY INSTRUCTION WARNINGS: * Any mattress used in this crib must be at least 27-1/4 inches by 51-5/8 inches (69cm by 131cm) with a thickness not exceeding 6 inches (15cm). * The day bed is not intended for children under 15 months of age or over 50 pounds (22.7 kgs).
- Page 12 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W FULL SIZE BED ASSEMBLY INSTRUCTION FULL SIZE BED ASSEMBLY INSTRUCTION FULL SIZE BED ASSEMBLY INSTRUCTION FULL SIZE BED ASSEMBLY INSTRUCTION (HEADBOARD ONLY) (HEADBOARD ONLY) (HEADBOARD ONLY) (HEADBOARD ONLY) FULL SIZE CONVERSION RAILS AND LEGS ARE NOT INCLUDED. DIAGRAMS ARE FOR REFERENCE ONLY.
- Page 13 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W FULL SIZE BED ASSEMBLY INSTRUCTION (HEADBOARD AND FOOTBOARD) FULL SIZE CONVERSION RAILS AND LEGS ARE NOT INCLUDED. DIAGRAMS ARE FOR REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION. STEP 1: Attach the full size conversion rails (not included) to the back panel (E) and assembled front panel (A, B, C &...
- Page 14 4-in-1 Lakeley Convertible Crib DA7253B4E / DA7253B4W CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 15 MODEL #: DA7253B4E / DA7253B4W Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
