DW DWC-MD44WA User Manual page 10

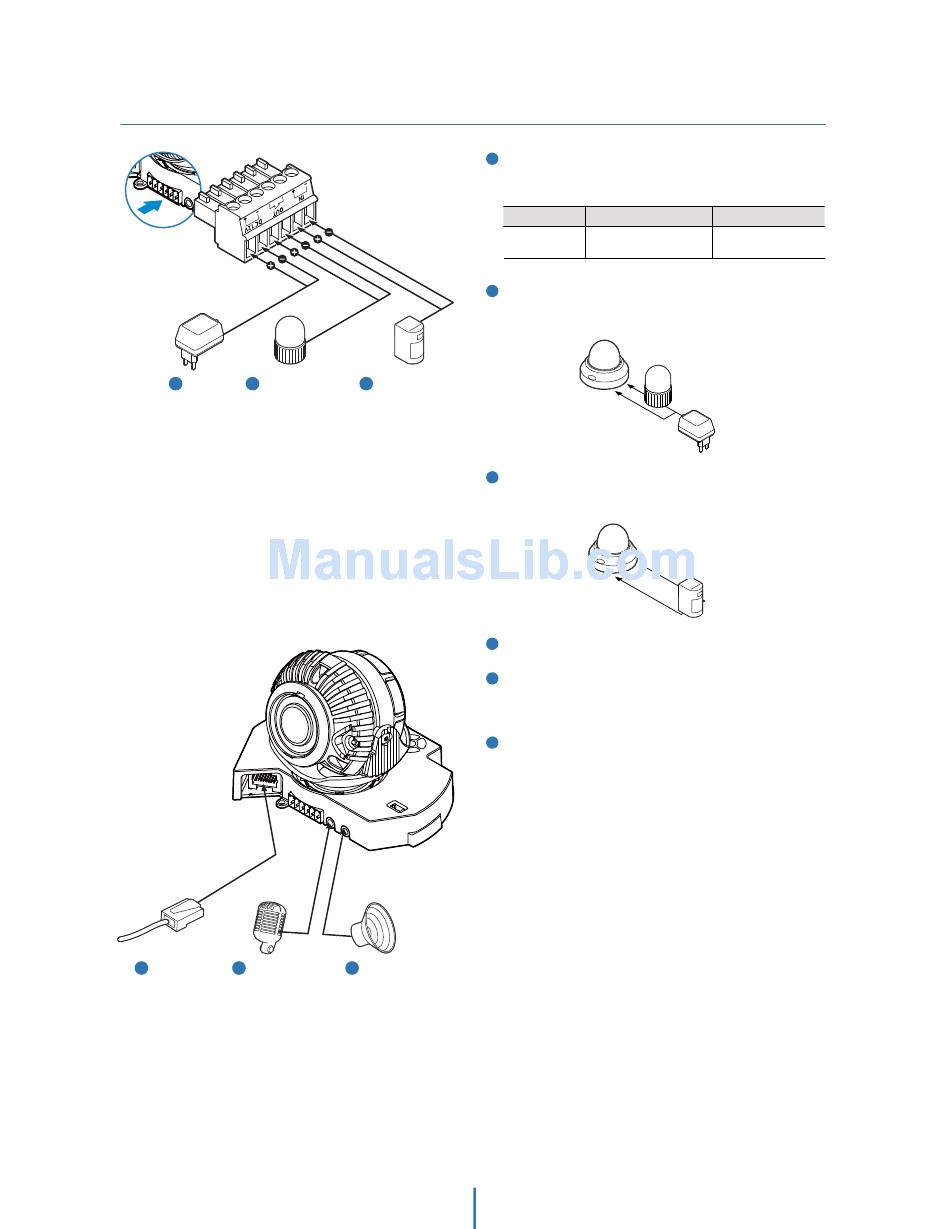

Installation -
Cabling
1 2
Power
Relay/Alarm
Output
4 5
Network Audio Input
Connection
1
Power Connection
Please, check the voltage and current capacity of rated
power carefully.
Rated Power
2
Relay/Alarm Output
It connects to the alarm lights, siren or lamps, and it is
activated according to the Setup menu setting.
3
Sensor/Alarm
Input
3
Sensor/Alarm Input
It connects to IR sensor, IrDA sensor or door switch. If the
sensor is activated, it can activate to work the alarm device.
4
Network Connection
5
Audio Input
Cable of the sensor/alarm input device should connect to
alarm in+ and alarm in- of the cable slot.
6
Audio Output
It connects to the alarm lights, siren or lamps and the sensor
types are normal open and normal close.
Cable of the alarm output device should connect to alarm
out+ and alarm out- of the cable slot.
6
Audio Output
10
Current Consumption
AF Working Max 7.5W
DC 12V
IR ON : 4.2W / OFF : 2.5W
PoE
IEEE 802.3af Class3
