Headlamp Adjustment

Correct headlamp adjustment is
extremely important. Check and
readjust headlamps at regular
intervals and when a bulb has
been replaced.

Replacing Bulbs

Do not touch glass portion of bulb
with bare hands. Use plain paper
or a clean cloth.
Install only 12 volt bulbs with the
specified watt rating.

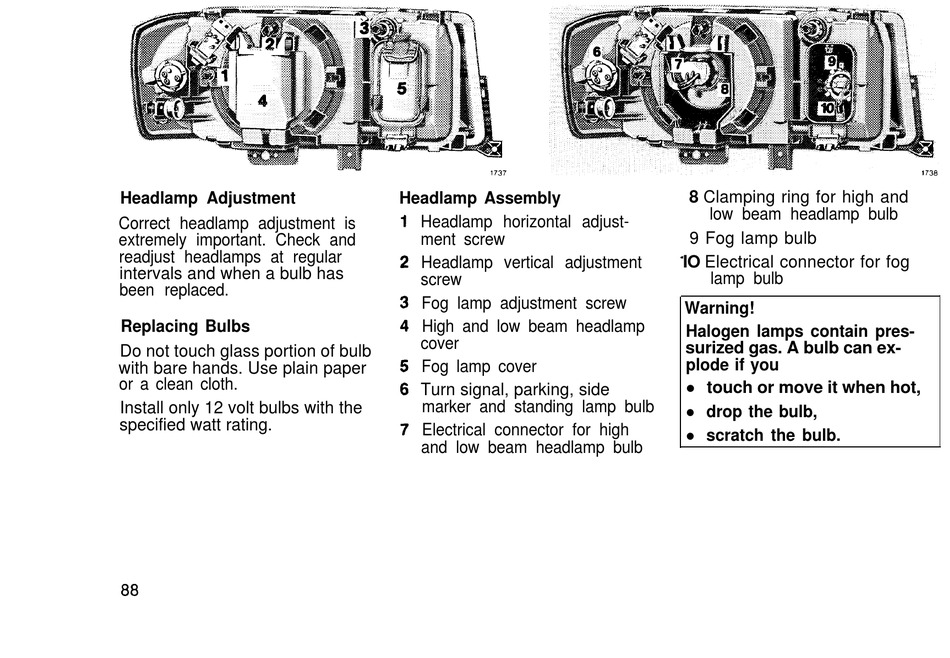

Headlamp Assembly
Headlamp horizontal adjust-
ment screw
Headlamp vertical adjustment
screw
Fog lamp adjustment screw
High and low beam headlamp
cover
Fog lamp cover
Turn signal, parking, side
marker and standing lamp bulb
Electrical connector for high
and low beam headlamp bulb
8 Clamping ring for high and
low beam headlamp bulb
9 Fog lamp bulb
IO Electrical connector for fog
lamp bulb
Warning!
Halogen lamps contain pres-
surized gas. A bulb can ex-
plode if you
touch or move it when hot,
l
drop the bulb,
l
scratch the bulb.
l
