AR42.10-P-1700-02W
Move rear axle brakepads into assembly position
Model
117, 156, 166, 172, 176, 190, 242, 246, 292
Model
205
up to model year 2019
Model
217, 222, 231
Model
253
up to model year 2020
Variant 1: Move to assembly position (via workshop menu in
instrument cluster)

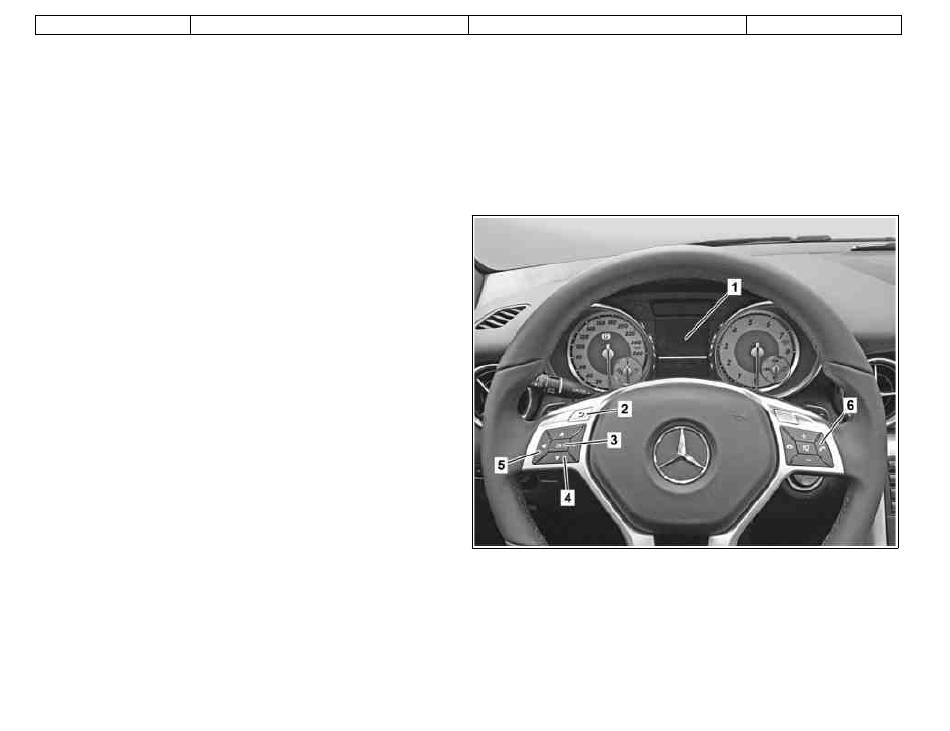

Shown on steering wheel, variant 1
Switch on ignition in circuit 15R position.
1
© Daimler AG, 7/30/20, L/04/20, ar42.10-p-1700-02w, Move rear axle brakepads into assembly position
Model 117, 156, 166, 172, 176, 190, 242, 246, 292 Model 205 up to model year 2019 Model 217, 222, 231 Model 253 up to model year 2020
Switch off ignition.
7
P42.10-3094-11
Page 1 of 5
