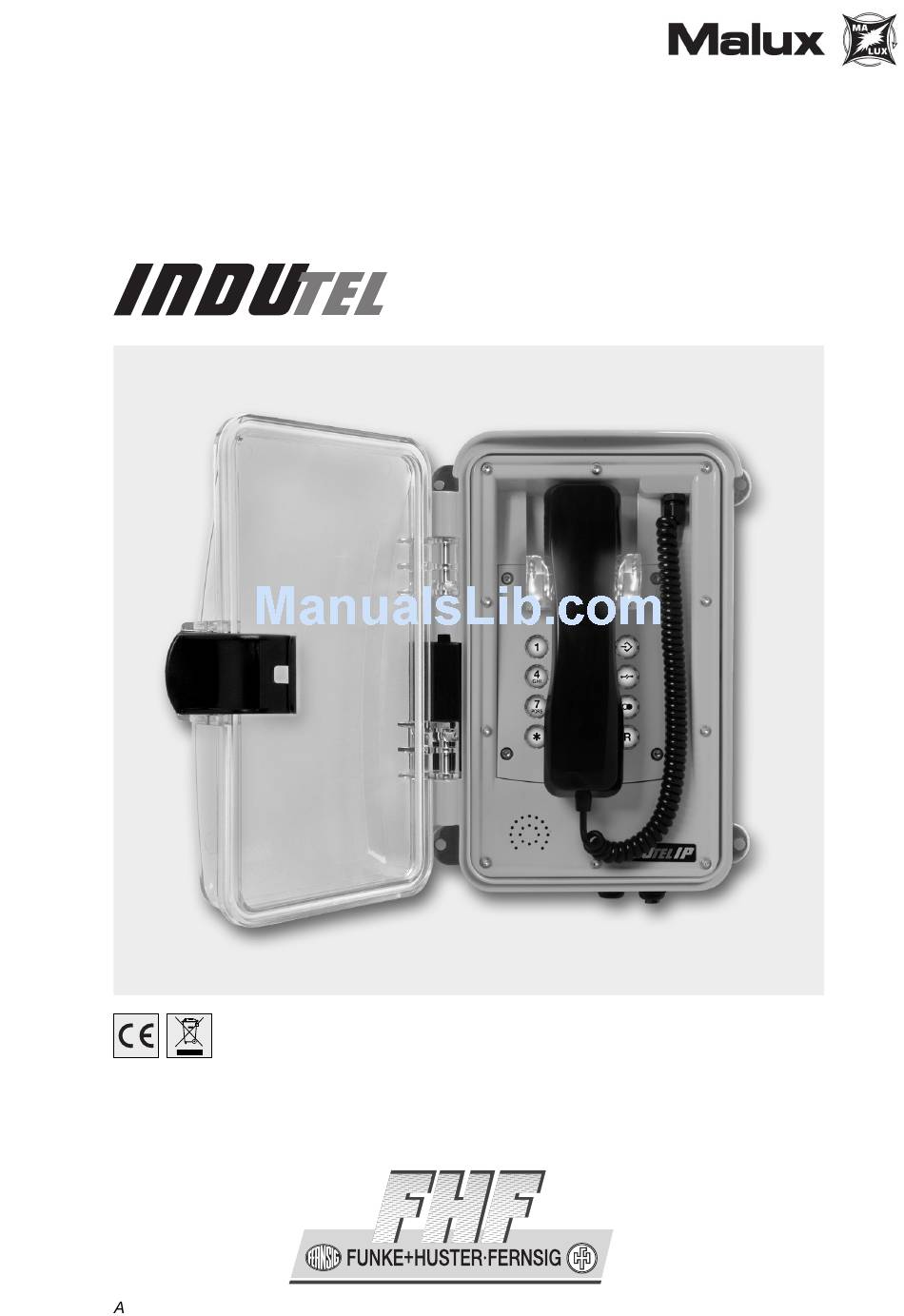

- Page 1 Weatherproof telephone Operating manual FHF B 9605-03 04/14 www.malux.se...
-
Page 2: Table Of Contents
Change Password .................. 16 Manual Upgrade ..................16 General notes ..................17 Service ......................17 Servicing and maintenance ................17 Warning and safety instructions ..............17 Technical data ..................18 Declaration of conformity ..............19 Directives ..................... 19 Disposal ....................19 www.malux.se... -
Page 3: General Notes On Operation
General notes on operation 1. The InduTel IP is the VoIP (Voice over Internet Protocol) version of the telephone InduTel and is operated on a 10/100 BaseT Ethernet network. The connections are established with the Session Initiation Protocol (SIP). The operation corresponds to that of an analogue telephone. -
Page 4: At The Time Of Delivery
At the time of delivery Contents of the packaging o Telephone InduTel IP o These operating instructions o LAN device connector plug Default settings of the telephone IP address 192.168.0.77 Netmask 255.255.255.0 Announcement of the current Dial *558800 Master Reset to Factory... -
Page 5: Assembly And Installation
If a separate DC voltage supply and connection of the internal relay contact are not required, it is to be ensured that the sealing element is in the screwed cable gland. Terminal configuration Relay contact DC voltage supply www.malux.se... -
Page 6: Assembly Of Rj45 Connector
Assembly of LAN-Connector RJ45 PIN assignment depends on the condition of installation on site recommended tool: LogiLink Crimpzange Universal WZ0003 Operating elements Execution with keypad Speed dialing (1st key) Disconnect Re-dialing Consultation / toggling ________________________ Number keys www.malux.se... -
Page 7: Dimensions
Dimensions Drilling dimensions www.malux.se... -
Page 8: Operation
Announcement of the current IP address The InduTel IP is able to announce the current IP address. For this purpose, the following “telephone number” must be dialed: IP announcement = *558800 The address will be announced on the telephone earpiece. -
Page 9: Web Server
IMPORTANT / GENERAL NOTE: BEFORE PARAMETERS CAN BECOME EFFECTIVE THEY HAVE TO BE SAVED WITH “APPLY CHANGES”. In the case of certain parameters, the InduTel IP must be restarted in order for them to become effective. Authentication The web server is accessed via a web browser. You should use an up-to-date version of a commonly used web browser. -
Page 10: Menus
Status: This part indicates which state the telephone is in (unregistered, ready, dialing, startcall, talking, busy, incoming, callended, fault) and what the registration status of the PBX is (auth., request, registered, failed, - ) Version: The current hardware and software version are shown here. www.malux.se... -
Page 11: About
It is therefore recommended to limit the number of pings or hops and start with a small number (one or two) and to increase these step by step if necessary. www.malux.se... -
Page 12: Configuration
You can also configure the IP address of an NTP server so that the date and time in the bottom left-hand corner of the web server are shown correctly. Inserting the NTP address via DHCP is not possible. www.malux.se... - Page 13 “Register Timeout” indicates the time in seconds that passes after each failed attempt before the telephone makes another attempt. With “Qualify Connection” is used to define a certain time span until the InduTel IP monitors if a previously established PBX connection still existed.
-
Page 14: Phone Settings
Selecting “active call” on the other hand ensures that the relay is on “on” for as long as an existing connection is active. The “switch” function makes it possible for the relay to be controlled locally from the InduTel IP. Switch Function: The code is entered here which must be entered via the keypad (an “internal call”... -
Page 15: Audio Settings
Ringer Settings: “Ringing Time” indicates how long the InduTel IP is to ring for before an incoming call is refused. The volume can be changed using the “Volume” control. The ring tone is selected via the “Melody” control. -
Page 16: Speed Dial
In the submenu “Speed Dial” you can assign a telephone number to each number key. When speed dialing with the key sequence “ ,, number key”, the telephone number assigned to the number key will then be dialed if activation has been carried out under “SIP Settings Speed Dial”. www.malux.se... -
Page 17: System Administration
System Administration Username & Password In this submenu you can change the username and the password. www.malux.se... -
Page 18: Manual Upgrade
In this submenu you can perform a telephone software upgrade. The greatest care is to be taken in doing so. It is to be ensured that only one InduTel IP ever accesses the TFTP server at the same time, since a corruption of the transferred data will be caused otherwise and ultimately a failed upgrade process. - Page 19 Master Reset: The telephone can be set to its default settings at any time by means of a “Master Reset”. To do this, the handset must be taken off and the following telephone number dialed: Master Reset = **314159265359 www.malux.se...
-
Page 20: General Notes
10. Changes to the product which serve for technical advancement may be made without being announced beforehand. 11. In accordance with EN60950-1:2006, the relay must not be subjected to voltages of greater than 42.4 V peak value or 60 V DC voltage. www.malux.se... -
Page 21: Technical Data
Normal operating position Vertical wall assembly Handset Mouthpiece Electret microphone Earphone capsule Dynamic capsule with magnetic field generation Environmental conditions Ambient operating temperature -40°C… +55°C Transport and storage temperature -55°C… +70°C Degree of protection in accordance IP 66 (closed) with IEC60529 www.malux.se... -
Page 22: Declaration Of Conformity
For this reason, they must not be disposed of together with unsorted municipal waste (domestic refuse). In order to protect our environment, there are therefore public collection points available for the disposal of the electrical and electronic old devices marked with this symbol. www.malux.se... - Page 23 www.malux.se...
- Page 24 Subject to alterations or errors FHF Funke + Huster Fernsig GmbH Gewerbeallee 15-19 · D-45478 Mülheim an der Ruhr Phone +49 / 208 / 82 68-0 · Fax +49 / 208 / 82 68-286 http://www.fhf.de · e-mail: info@fhf.de www.malux.se...
