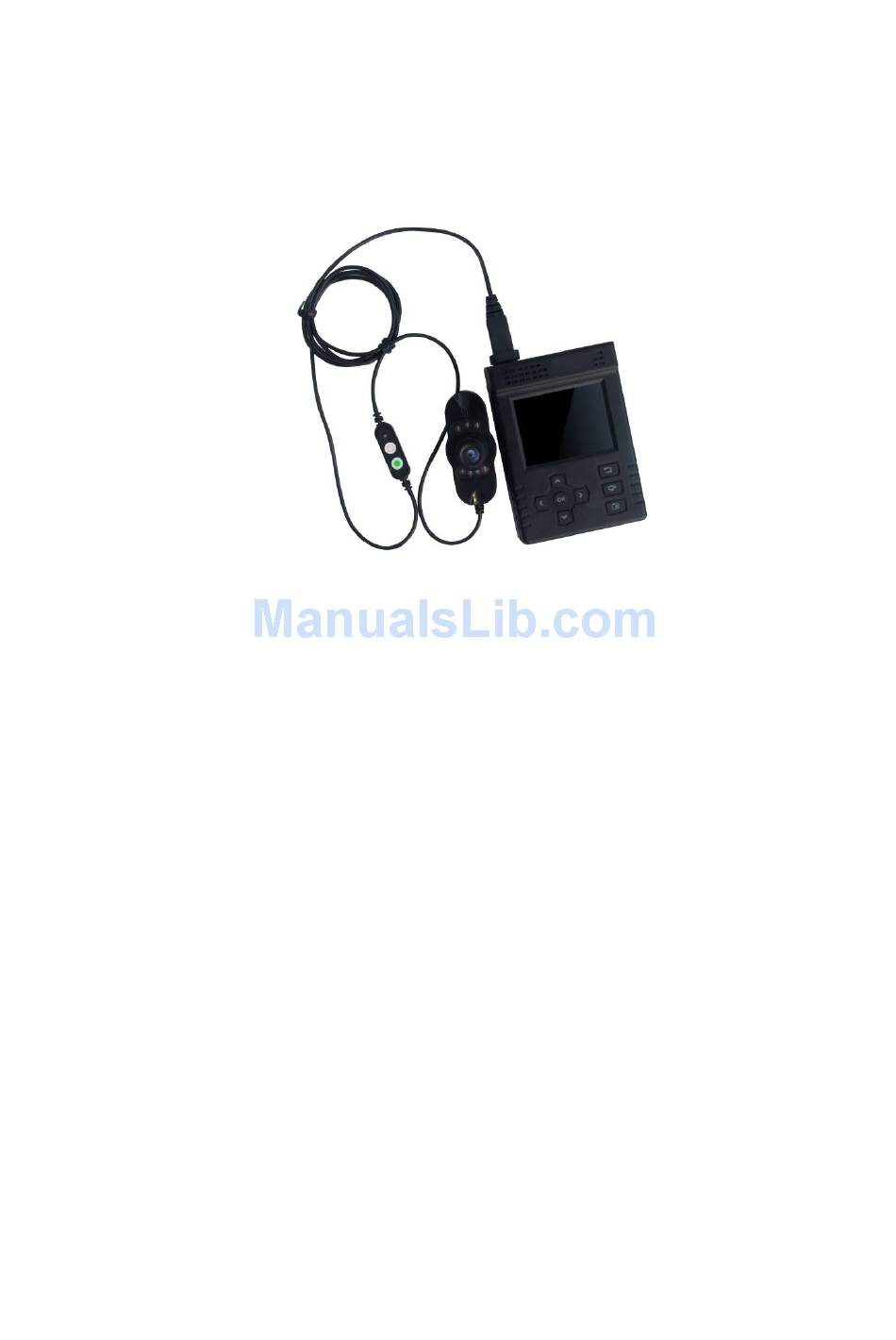

PVR210 User's Manual
Version 1.3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVR210 and is the answer not in the manual?

Questions and answers

Related Manuals for Dahua PVR210

Summary of Contents for Dahua PVR210

  • Page 1 PVR210 User’s Manual Version 1.3...

  • Page 2: Table Of Contents

    Table of Contents General Introduction ......................7 Features ........................7 Specifications......................7 Framework ..........................9 General Structure.....................9 Front Panel........................9 Port ...........................10 Cable Control Introduction..................10 PVR Interface and Operation .....................12 Boot up and Shutdown..................12 Standby and Wake up ...................12 Lock/Unlock ......................12 System Monitor and Management Interface............13 Record Operation....................15...
  • Page 3 Main Menu ......................16 3.6.1 Playback ......................16 3.6.2 Snapshot ......................19 3.6.3 Parameter Setup .....................20 3.6.4 Format.......................32 3.6.5 Shut Down......................33 Appendix Toxic or Hazardous Materials or Elements ............34...
  • Page 4 Welcome Thank you for purchasing our PVR210 series product! This user’s manual is designed to be a reference tool for the installation and operation of your system. Please read the following safeguard and warnings carefully before you use this series product!
  • Page 5 Safeguard and Warnings 1．Electrical safety All the installation and operations here should conform to your local electric safety rules. We assume no liability or responsibility for all the fires or electrical shock caused by unauthorized handling or installation. 2. Environments Always transport, storage and install the device in the specified temperature and humidity environments.
  • Page 6 remove the SD card! Otherwise it may result in upgrade failure and system can not restore to the proper running status! Please make sure PVR device connection is right before you begin recording. Warning Do not dismantle PVR device without authorization! Improper battery use may result in fire, explosion, or personal injury! When replace the battery, please make sure you are using the same model! Some functions listed in this user’s manual are optional.

  • Page 7: General Introduction

    It is portable and is compatible with semi-stational use. PVR is very convenient to carry and is easy to operate. 1.2 Specifications Name PVR210 Record resolution Max 1024*768 Video Compression algorithm H.264...
  • Page 8 SD card alarm When the card is about to full (about five- minutes recording time left), you can hear buzzer beeps to alert you to replace a SD card. Cable control light Monitor status: Cable control light flashes once in every three seconds. Record status：Cable control light is on.

  • Page 9: Framework

    2 Framework 2.1 General Structure Please refer to Figure 2-1 for general structure. Cable control slot Chassis bottom cover Chassis up cover Port side cover 接口侧盖 Battery cover Function key Figure 2-1 2.2 Front Panel Please refer to Figure 2-2 for external keys. There are nine keys.

  • Page 10: Port

    2.3 Port Please refer to Figure 2-3 for external ports. Cable control port：Here you can input cable control to provide audio and video signal, the key control signal input and status indication light. SD card port：Input ordinary SD card. Please pay attention to SD card installation direction. It supports SD1.0, SD1.1 and SD 2.0 standard.
  • Page 11 Indication light Cable control buckle Camera Microphone IR light Figure 2-4 About the cable control lens daily maintenance Do not touch the camera of the cable control; you can use the blower to clean the dust on the surface of the lens. You can use the dry cloth with some alcohol or mild detergent to clear if necessary.

  • Page 12: Pvr Interface And Operation

    3 PVR Interface and Operation 3.1 Boot up and Shutdown There are two ways for you to boot up the device. Press the Power button of the device for over two seconds, PVR system boots up. System goes to real-time monitor status by default. Press the Record button of the cable control for over two seconds, PVR system boots up.

  • Page 13: System Monitor And Management Interface

    Figure 3-1 3.4 System Monitor and Management Interface After the system booted up, press the Power button of the device for a long time, you can go to the monitor interface. See Figure 3-2. The white block at the bottom means you are in monitor interface. Figure 3-2 You can refer to the following sheet for detailed information.
  • Page 14 This icon becomes highlighted when the cable control is available. Battery capacity When the battery left power capacity is less than 10 minutes, the buzzer begins beeping regularly to alert you to recharge. Interface operation prompt information. Camera zoom control You can use the up/down button to adjust the zoom when you want to record or snapshot.

  • Page 15: Record Operation

    Figure 3-4 3.5 Record Operation There are two ways for you to go to the record interface. You can click the Record button of the cable control when the device is off. After system boots up, please click Record button of the cable control or the Record button at the front panel to begin recording.

  • Page 16: Main Menu

    System default recording package time is 60 minutes. When the file is about to full (about five- minutes recording time left), you can hear buzzer beeps to alert you to replace a SD card. All recorded files are automatically created and are storage under RECORD folder. File name format is: Year_Month_Date_Hour_Minute_Second.mp4.
  • Page 17 Detailed Operation Please use Up/Down to select playback file and then click OK button to view. System automatically plays the next file after completing current one. After it played all files in RECORD folder, system goes back to playback list interface (Figure 3-7). In playback list interface, select one file and then click right button for a long time, you can go to remove file dialogue box.
  • Page 18 When the playback control bar is hidden, you can click Left or Right button once to play. Fast forward Please use Left and Right button to select and then click /fast backward OK button to confirm. Now you can realize fast forward or backward function.

  • Page 19: Snapshot

    Figure 3-11 3.6.2 Snapshot In the main menu, select Snapshot item and then click OK button. You can see the image file list. See Figure 3-12. Figure 3-12 Basic Information In playback file list interface you can view all recorded images in SD card PICTURE folder. They are arranged in accordance with time.

  • Page 20: Parameter Setup

    Figure 3-13 Please refer to the following sheet form detailed information. You can use the left/right button to select and then click the OK button to confirm current operation. Icon Name Function Zoom Zoom in to the original size or zoom out to suite the LCD size. You can use the direction keys (up/bottom/left/right) to view after you zoom in.

  • Page 21: Power Setup

    select year/month/date/hour/minute. You can use Left and Right button to increase or decrease number. Please use Up and Down button to move the cursor to highlight setup button and then click OK button to save current modification. You can click ESC button to go back to previous interface after you completed setup. Figure 3-15 3.6.3.2 Power Setup In Figure 3-14, please use Left and Right button to highlight power item.
  • Page 22 3.6.3.3 System Information and Firmware Upgrade System Information In Figure 3-14, please use Left and Right button to highlight System item and then click OK button to go to system setup interface. See Figure 3-17. Here you can view hardware version, software version and SD card capacity. In this interface, you can also upgrade system.
  • Page 23 Important! Please note you can see the corresponding prompting dialogue box if you want to set the video resolution, video frame rate, video bit rate, audio bit rate when the device is recording! If system is recording right now, your setup here can not be valid immediately. You need to stop the record first and then enable record again to activate current setup.
  • Page 24 When the resolution is 640*480/704*576, the frame rate can be： VBR/5/6/8/10/12/15/18/20/22/25/30. When the resolution is 1024*768, the frame rate can be： VBR/3/4/5/6/7/8/9/10/11/12/13/14. The bit rate may vary due to different video resolution and frame rate setup. Bit rate There are two options: on/off. Auto focus When this function is on, the device can automatically adjust the lens focus.
  • Page 25 same. Click it to cancel your current setting. Cancel Here is to restore extra stream factory default setup. Click the Restore button, Restore you can see the system pops up a dialogue box asking you to restore factory default setup or not. Click OK button, system will begin restoring. Please note if the device is recording, system can not restore the factory default setup.
  • Page 26 It is to display the current network connection status： Connection 1）SSID：It is the SSID of the router you are going to connect to. 2）State：Here you can see current network status. It includes two statuses: connected or disconnected. 3）Online time：It is to display the connection time. You can set the network parameter if necessary.
  • Page 27 Figure 3-23 If current router has been encrypted, you need to input the corresponding password. See Figure 3-24. You can also input SSID, encrypt way, password manually and then click the OK button to save current setup. Figure 3-24 Connect Click the Connect button in Figure 3-21 to connect to the network.
  • Page 28 Figure 3-26 Disconnect Click Disconnect button in Figure 3-21 to disconnect to the WIF network. 3.6.3.6.1.2 Information Here you can view the corresponding device network connection information of your setup. See Figure 3-27. Figure 3-27 3.6.3.6.1.3 Register Highlight the Register button and then click the OK, the interface is shown as below. See Figure 3-28.
  • Page 29 Please refer to the following sheet for detailed information. Name Function You can input server domain name here. Server domain name You can input connection server IP here. Server IP Server port You can input server port here. It is the unique symbol that the device registered to one media server. The Device ID string format is: PVR-random number.
  • Page 30 Previous page << Next page >> Click it to remove the last input character. It can delete two bytes in Pinyin Delete mode and it can delete one byte in other input mode. Output the current input contents to the above layer. Enter 3.6.3.6.3 3G Network...
  • Page 31 Figure 3-31 Please refer to the following sheet for detailed information. Name Function You can input the additional 3G dial command manually. Extra command You can input dial number manually. Dial number User name and The user name and password you get from your operator. It can be modified password if necessary.

  • Page 32: Format

    Figure 3-33 Disconnect Click Disconnect button in Figure 3-30 to disconnect to the 3G network. 3.6.3.6.3.2 Information You can view the corresponding IP address, subnet mask, gateway, DNS information from the operator after successful network connection. 3.6.3.6.3.3 Register Please refer to the register section of the WIFI setup. 3.6.4 Format In the main menu, select Format item and then click OK button.

  • Page 33: Shut Down

    3.6.5 Shut Down Please stop record operation first, and then in the main menu, use Left and Right button to highlight Shutdown item and then click OK button to turn off the PVR directly. See Figure 3-35. You can press the power button for a long time or cable control key to turn off the PVR. Figure 3-35...

  • Page 34: Appendix Toxic Or Hazardous Materials Or Elements

    Appendix Toxic or Hazardous Materials or Elements Component Toxic or Hazardous Materials or Elements Name Cr VI PBDE Construction ○ ○ ○ ○ ○ ○ Material Circuit Board ○ ○ ○ ○ ○ ○ Internal ○ ○ ○ ○ ○ ○...
