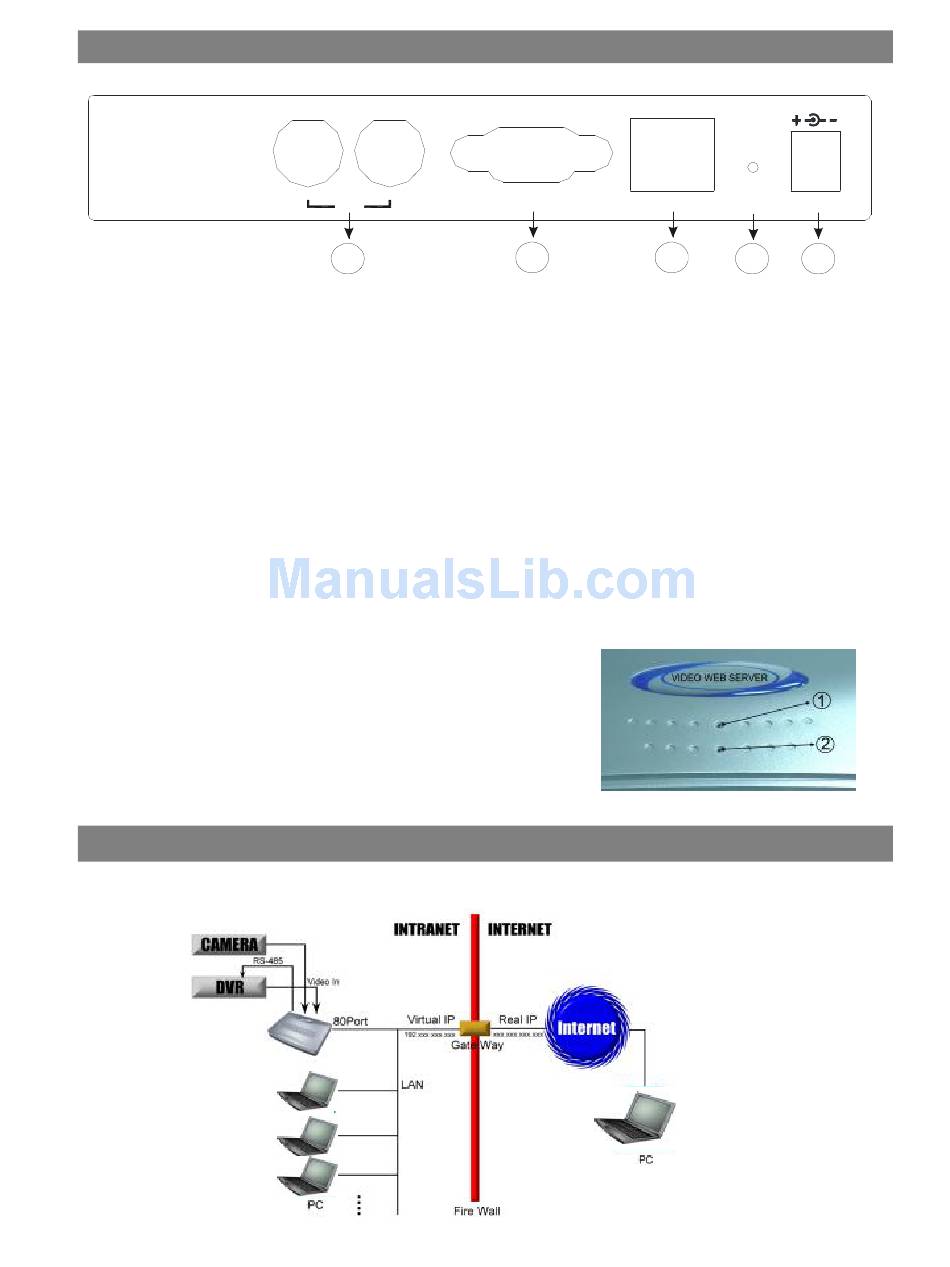

REAR PANEL

1. VIDEO INPUT (2 channels)
Connect to video source, such as camera or DVR video output.
2. ALARM I/O (optional for advanced applications)
Connect control devices, such as PTZ, DVR and external alarm signal input.
3. LAN
Connect Video Web Server to the Internet or LAN with cable or connect directly to PC with standard
pass through cable.
4. RESET
Press this button to default setting.
5. POWER
Plug in the supplied power adaptor (12V / 1.25A).
**LED light
1)When it lights, that means the network is normal.
2)When it glitters, that means the system is normal.

HARDWARE CONNECTION AT SERVER SITE

A.Connection Structure
2 1 1
Video
1
LAN
ALARM I/O
3
2
NOTE:RS-485 for DVR controlling is optional.
2
Reset
DC 12V
4
5
