ORBELLE TRADE INC
347 CLINTON STREET
HEMPSTEAD N.Y.11550
516-481-1500
READ ALL INSTRUCTIONS BEFORE ASSEMLING.
SAVE INSTRUCTIONS FOR FUTURE USE.
CAREFULLY REMOVE AND LAY OUT ALL PARTS.FAMILIARIZE YOURSELF WITH
ALL DIAGRAMS TO FACILITATE THE ASSEMBLY OF YOUR BED.
CHECK PARTS AND THE ENCLOSED HARDWARE BAG WITH THE HARDWARE
LIST TO BE SURE ALL ARE INCLUDED AND QUANTITIES ARE CORRECT.
DESTROY CARDBOARD AND PLASTIC BAGS IMMEDIATELY.
ATTENTION: IN ORDER TO PROPERLY ASSEMBLE THE BED,FOLLOW THE
INSTRUCTIONS IN THE SPECIFIED ORDER.FAILURE TO ASSEMBLE THE TODDLER
BED IN THE MANNER RECOMMENDED COULD MAKE THE TODDLER BED
HAZARDOUS.
SEE MORE PRODUCTS AT:
WWW.ORBELLE.COM
ASSEMBLY INSTRUCTIONS

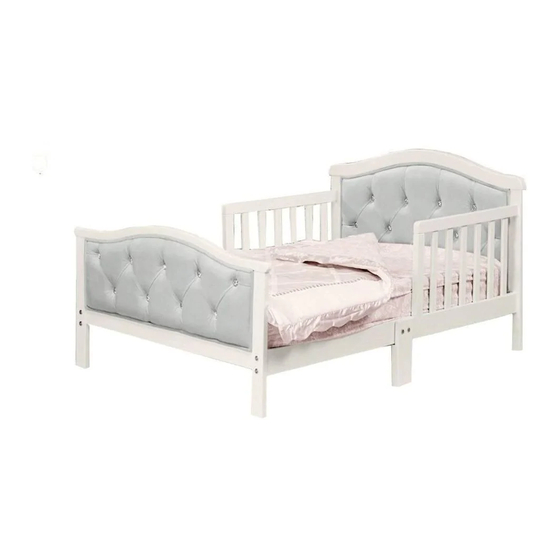

TODDLER BED
#417
DO NOT RETURN TO STORE
CALL OR EMAIL FOR
REPLACEMENT 516-481-1500
or customerservice@orbelle.com
1
.
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for ORBELLE 417
Summary of Contents for ORBELLE 417
- Page 1 TODDLER BED #417 ORBELLE TRADE INC SEE MORE PRODUCTS AT: 347 CLINTON STREET WWW.ORBELLE.COM HEMPSTEAD N.Y.11550 516-481-1500 DO NOT RETURN TO STORE CALL OR EMAIL FOR REPLACEMENT 516-481-1500 or customerservice@orbelle.com ASSEMBLY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE ASSEMLING. SAVE INSTRUCTIONS FOR FUTURE USE.
- Page 2 A FREQUENT AND PEDRIODICALLY CHECK SHOULD BE MADE TO CONFIRM ALL THE SCREWS AND NUTS REMAIN TIGHT. · NEVER USE THIS PRODUCT IF THERE ARE ANY LOOSE, MISSING FASTENERS, LOOSE JOINTS,BROKEN PARTS, OR TORN MESH/FABRIC. CALL OR EMAIL ORBELLE 516-481-1500 OR CUSTOMERSERVICE@ORBELLE.COM FOR REPLACEMENT AND INSTRUCTIONAL LITERATURE IF NEEDED.
- Page 3 PARTS LIST FOR # 417 Left guard rail (1PC) Head board (1PC) Foot board (1PC) Right guard rail (1PC) Middle mattress base slat (1PC) Split leg (2PCS) Left rail (1PC) Mattress base slat (8PCS) Right rail (1PC) HARDWARES FOR # 417 3/5”...
- Page 4 STEP 1 Connect the left rail (B) to the left rail (G) by wood dowels (d). Connect the right rail (C) to the right rail (H) by wood dowels (d). STEP 2 Connect the guard rail (B&C) to the rail(G&H) by L metal plate(e)and selfdrilling screw (b).
- Page 5 STEP 3 Insert the middle mattress base slat (E) and mattress base slat (F) to the right guard rail (C) and right rail (H) , then attach the split legs (J) to the middle mattress base slat (E) by bolts (a) and barrel nuts (c) . STEP 4 Insert the middle mattress base slat (E) and mattress base slat (F) to the left guard rail (B) and left rail (G) , then attach the split legs (J) to the middle...
- Page 6 STEP 5 Connect the head board (A) to the left guard rail (B) and right gurad rail(C) using bolts (a) and barrel nuts (c). STEP 6 Connect the left rail (G) and the right rail ( H ) to the foot board (D) by using bolts (a) and barrel nuts (c) .
- Page 7 CONGRATULATIONS : Your toddler bed is successfully assembled. DO NOT RETURN T O S T ORE CAL L or EMAI L FOR REPLACEMENT 516-481-1500 or customerservic e @orbelle.com...
