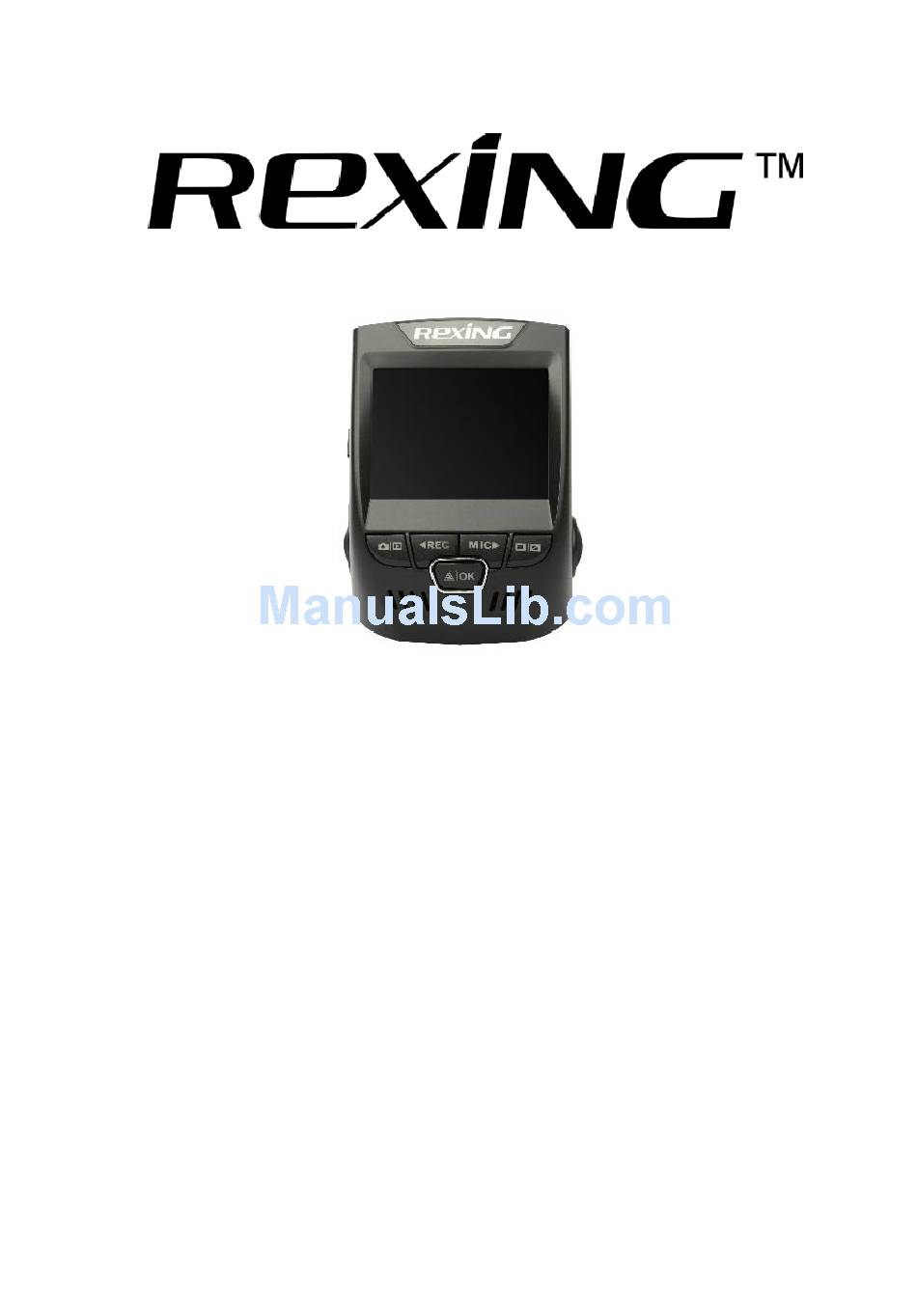

USER MANUAL

V1
All brand and product names are trademarks or registered trademarks of
DWCO ELECTRONICS CO., LTD.
The information in this manual is subject to change without notice.
www.rexingusa.com
04/2017Rev8
1
© 2015 REXING All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rexing V1

Summary of Contents for Rexing V1

  • Page 1: User Manual

    USER MANUAL All brand and product names are trademarks or registered trademarks of DWCO ELECTRONICS CO., LTD. The information in this manual is subject to change without notice. www.rexingusa.com 04/2017Rev8 © 2015 REXING All Rights Reserved.

  • Page 2: Safety Information

    Failure to comply with safety warnings and regulations can result in serious injury or death. Rexing Dash Cam is not intended to be touched, modified, or calibrated while operating a vehicle. Rexing is not responsible for any damages resulting from the user's misuse of the camera.
  • Page 3 • Rexing cannot be responsible for the user’s safety when using accessories or supplies that are not approved by Rexing. Do not drop the charger or device, or subject them to impact. Handle and dispose of the charger and device with care.
  • Page 4 If children use the device, make sure they use the device properly. • Never use a damaged charger. Do not handle a damaged or leaking lithium ion (Li-Ion) battery. For safe disposal of your Li-Ion battery, contact your nearest authorized service center. © 2015 REXING All Rights Reserved.
  • Page 5 If you notice strange smells or sounds coming from your device, or if you see smoke or liquid leaking from the device, stop using the device immediately and take it to a Rexing Service Center. Failure to do so may result in fire or explosion.
  • Page 6 Do not attempt to disassemble, repair, or modify your device. • Any changes or modifications to your device can void your manufacturer’s warranty. If your device needs servicing, take it to an authorized Rexing Service Center. © 2015 REXING All Rights Reserved.
  • Page 7 Do not distribute copyright-protected material. Doing so without the permission of the content owners may violate copyright laws. The manufacturer is not responsible or liable for any legal issues that result from the user’s illegal use of copyrighted material. © 2015 REXING All Rights Reserved.
  • Page 8 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. © 2015 REXING All Rights Reserved.
  • Page 9 ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL REXING BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES...
  • Page 10 Third party services may be terminated or interrupted at any time, and Rexing makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Rexing has no control.

  • Page 11: About This Manual

    Content may differ from the final product or from software provided by service providers, and is subject to change without prior notice. • For the latest version of this manual, refer to the Rexing website at www.rexingusa.com. • Available features and additional services may vary by device and software.

  • Page 12: Table Of Contents

    Formatting the memory card ..........25 Turning the Device On and Off ..........26 Basic Operating ............... 27 VIDEO SETTINGS ................. 28 Resolution ................28 Loop Recording ............... 28 Time-lapse Record ..............29 WDR (Wide Dynamic Range) ..........29 © 2015 REXING All Rights Reserved.
  • Page 13 TV Mode ................. 32 Light Frequency ..............32 Format ..................32 DST ..................32 Screen Saver ................32 GPS ..................33 Update time of GPS ..............33 Restore Default Factory Settings ..........33 Version ..................33 © 2015 REXING All Rights Reserved.
  • Page 14 Quick Review ................36 Date Stamp ................36 Updating Firmware ..............37 Playback Mode ................38 Deleting Files................38 PC Playback Function .............. 39 Driving Recorder Player Instruction ........40 General Troubleshooting ............42 © 2015 REXING All Rights Reserved.

  • Page 15: Product Specifications

    3 min / 5 min / 10 min / OFF Loop Recording 15 Secs / 1 min / 3 min / OFF Screen Saver 3 min / 5 min / 10 min / OFF Auto Shutdown Microphone Mute ON / OFF © 2015 REXING All Rights Reserved.

  • Page 16: Getting Started

    Getting Started Overview of your V1 Dashboard Camera GETTING STARTED Device Layout 1. Mode Button Power On/ Off Switch 2. Up Navigation Button Reset Button Record Button Menu Button 3. OK (Confirm) Button 10. Lens Angle Adjuster Emergency Lock Button 11.

  • Page 17: Buttons

    Getting Started Understanding your V1 Dashboard Camera Buttons Button Functions POWER – Press and hold to turn the device on or off • Press to confirm a selection while in Setting Mode • Recording Mode Hot Key: Emergency Lock (Press to manually lock the file during recording) MENU –...

  • Page 18: Status Icons

    Getting Started Understanding your V1 Dashboard Camera Status Icons Icon Meaning Video Resolution Blinking – Recording Wide Dynamic Range Charging Battery Power Level Microphone Mute Microphone On Video Recording Mode Video Playback Mode Photo Mode Loop Recording © 2015 REXING All Rights Reserved.
  • Page 19 Getting Started Understanding your V1 Dashboard Camera Memory Card Inserted G- Sensor Sensitivity White Balance GPS Signal (Green-GPS OK, Blue-Acquiring GPS) License plate number Current video file locked © 2015 REXING All Rights Reserved.

  • Page 20: Package Contents

    All supplied items are designed for use only with this device and may not be compatible with other devices. Malfunctions resulting from the use of unapproved accessories are not covered by the warranty service. For more information about available accessories, refer to the Rexing website at www.rexingusa.com. © 2015 REXING All Rights Reserved.

  • Page 21: Installation

    You will need to insert a memory card before you can begin recording. The recorder supports MicroSD cards with a capacity of up to 128GB. For reliable operation, use a Class 10 memory card with a capacity of at least 8GB. © 2015 REXING All Rights Reserved.

  • Page 22: Charging The Battery

    12V DC power outlet. • Battery is mainly used to save files in emergency. Please always connect Rexing V1 to external power while it is in use. • When device detects no power supply, it will automatically power off after 5 seconds.

  • Page 23: Inserting The Memory Card

    • If the device is not charging properly, take the device and the charger to an authorized Rexing Service Center. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

  • Page 24: Removing The Memory Card

    Removing the memory card Before removing a memory card from your computer, you must first unmount it for safe removal. Before removing a memory card from your device: © 2015 REXING All Rights Reserved.

  • Page 25: Formatting The Memory Card

    Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss or corruption, or damage to the memory card or device. Rexing is not responsible for losses that result from the use of damaged memory cards, including the loss of data.

  • Page 26: Turning The Device On And Off

    A goodbye message will be displayed onscreen as shown in the image below. Note: The V1 Dashboard Camera will switch on and off automatically if you keep it permanently connected to the car charger. V1 will automatically start recording when power on.

  • Page 27: Basic Operating

    Getting Started Quick Start Basic Operating • Rexing Dash cam will atomically start recording once power on, the indicator and the red dot icon on screen should flashing while recording. • During recording, press EMERGICY button to lock current video clip, so the loop recording will not overwrite locked video clip. All locked video clip files can be found under \CARDV\MOVIE\RO folder in memory card.

  • Page 28: Video Settings

    Operating your V1 Dashboard Camera System Settings VIDEO SETTINGS On Video Recording Mode, Press OK to stop recording then press MENU button once open System Settings Menu. Resolution Recommend setting: 1080FHD Use this setting to set the recording resolution. Approximately recording time:...

  • Page 29: Time-Lapse Record

    Operating your V1 Dashboard Camera System Settings It is recommended that you reformat a memory card after every time that images are transferred from it to a computer, or at least once a month. This keeps important elements of data and file structure clean, helping to prevent error messages and missing images.

  • Page 30: Recording Audio

    Operating your V1 Dashboard Camera System Settings Recording Audio Recommend setting: On You may choose to record audio with video, or turn off the microphone so that all recorded videos will be muted. Alternatively, you can use a hot key shortcut for this feature. During Recording Mode, press the DOWN button to mute / unmute the microphone for video recording.

  • Page 31: System Settings

    Operating your V1 Dashboard Camera System Settings erased during Loop Recording; they remain on the memory card until manually deleted or the card is reformatted.) SYSTEM SETTINGS On Video Recording Mode, Press OK to stop recording then press MENU button twice open System Settings Menu.

  • Page 32: Language

    Operating your V1 Dashboard Camera System Settings Language Use the following procedure to change the device’s time and date. Language availability may vary depending on the region. TV Mode Recommend setting: NTSC This feature will setup video output format. Light Frequency...

  • Page 33: Gps

    Operating your V1 Dashboard Camera System Settings Alternatively, you can use a hot key shortcut for this feature. During Recording Mode, press and hold OK to turn the LCD screen on or off. Recommend setting: MI/H Select GPS speed unit (GPS Logger required)

  • Page 34: Photo Settings

    Operating your V1 Dashboard Camera Photo Settings PHOTO SETTINGS On Photo Mode, Press MENU button once open System Settings Menu. Resolution Recommend setting: 5M This option allows you to set the pixel resolution for captured images. Capture Mode Recommend setting: Single With this feature you can set a timer for automatically capturing images.

  • Page 35: White Balance

    Operating your V1 Dashboard Camera Photo Settings This feature will automatically enhance captured images for a clearer, more distinct picture. White Balance Recommend setting: Auto This setting allows you to adjust the lighting balance for different environments. Color Recommend setting: Auto This feature allows you to choose a color effect for captured images.

  • Page 36: Quick Review

    Operating your V1 Dashboard Camera Photo Settings Quick Review Enabling this feature will allow you to immediately view each captured image for a few seconds before taking the next photo. Date Stamp Recommend setting: Date/Time This feature will automatically apply a date and/or time stamp to captured images.

  • Page 37: Updating Firmware

    Operating your V1 Dashboard Camera Updating Firmware Updating Firmware The following procedure will allow you to use the Rexing website to update firmware for your V1 Dashboard Camera. This is necessary for enabling all available features on your device. 1. Download the firmware file to your computer 2.

  • Page 38: Playback Mode

    Operating your V1 Dashboard Camera Playback Playback Mode You can play back recorded video on your device using the following steps: 1. Press REC to stop recording 2. Press MODE twice to switch from Recording to Playback Mode 3. Press and hold the UP or DOWN button to navigate through the stored video files 4.

  • Page 39: Pc Playback Function

    Operating your V1 Dashboard Camera Playback To delete all files: 1. Press on UP or DOWN button to navigate through the video files 2. Press OK to enter "Video" 3. Press MENU to view options for this file: Delete/Protect/Slide Show 4.

  • Page 40: Driving Recorder Player Instruction

    Operating your V1 Dashboard Camera Playback Driving Recorder Player Instruction **APPLICIBLE TO THE GPS LOGGER ONLY** "Driving Recorder Player Software" is designed to play recorded videos along with displaying GPS data and driving routes on a computer. Minimum System Requirements: CPU: Intel Core 2 Duo 2.4GHz...
  • Page 41 Operating your V1 Dashboard Camera Playback MAC OS Users: If you cannot install the software successfully, check your OS X Security & Privacy settings and allow applications downloaded from Anywhere. This will allow 3rd party applications that are not from the Mac App Store to be installed on your computer.

  • Page 42: General Troubleshooting

    Operating your V1 Dashboard Camera Troubleshooting General Troubleshooting Problem Possible Cause Solution Memory card may be Reformat memory card or full or malfunctioning replace with a new one The captured image Image not being Make sure to stop is not stored...
  • Page 43 Operating your V1 Dashboard Camera Troubleshooting Charge the battery for 3 hours. Make sure unit is off Battery may be while charging. Turn on the depleted unit, unplug it. If it turns off Not holding charge immediately, contact Power cord may be...
  • Page 44 Operating your V1 Dashboard Camera Troubleshooting Disable Screen Saver Screen Saver feature feature Screen powers off is enabled unexpectedly Charge the battery Low battery Restore to default settings Use a different SD Card SD Card may not be compatible Restore to default settings...
  • Page 45 Operating your V1 Dashboard Camera Troubleshooting Stops Recording Loop Recording off Turn Loop Recording on after 20-40 minutes Use a different SD Card Stops Recording at SD Card is not random intervals Compatible Restore default settings G sensor may be too...
  • Page 46 Operating your V1 Dashboard Camera Troubleshooting Restore to default settings Stops Recording SD Card may not be after 1-3 looped Use a different SD Card compatible files Replace power cord “File error" is Memory card may be encountered when Reformat the memory card.
  • Page 47 Operating your V1 Dashboard Camera Troubleshooting This feature can only work Car charging port has Auto On/Off Not if it is being used in a continuous flow of working charging port that turns off power. with the vehicle. Update firmware...
