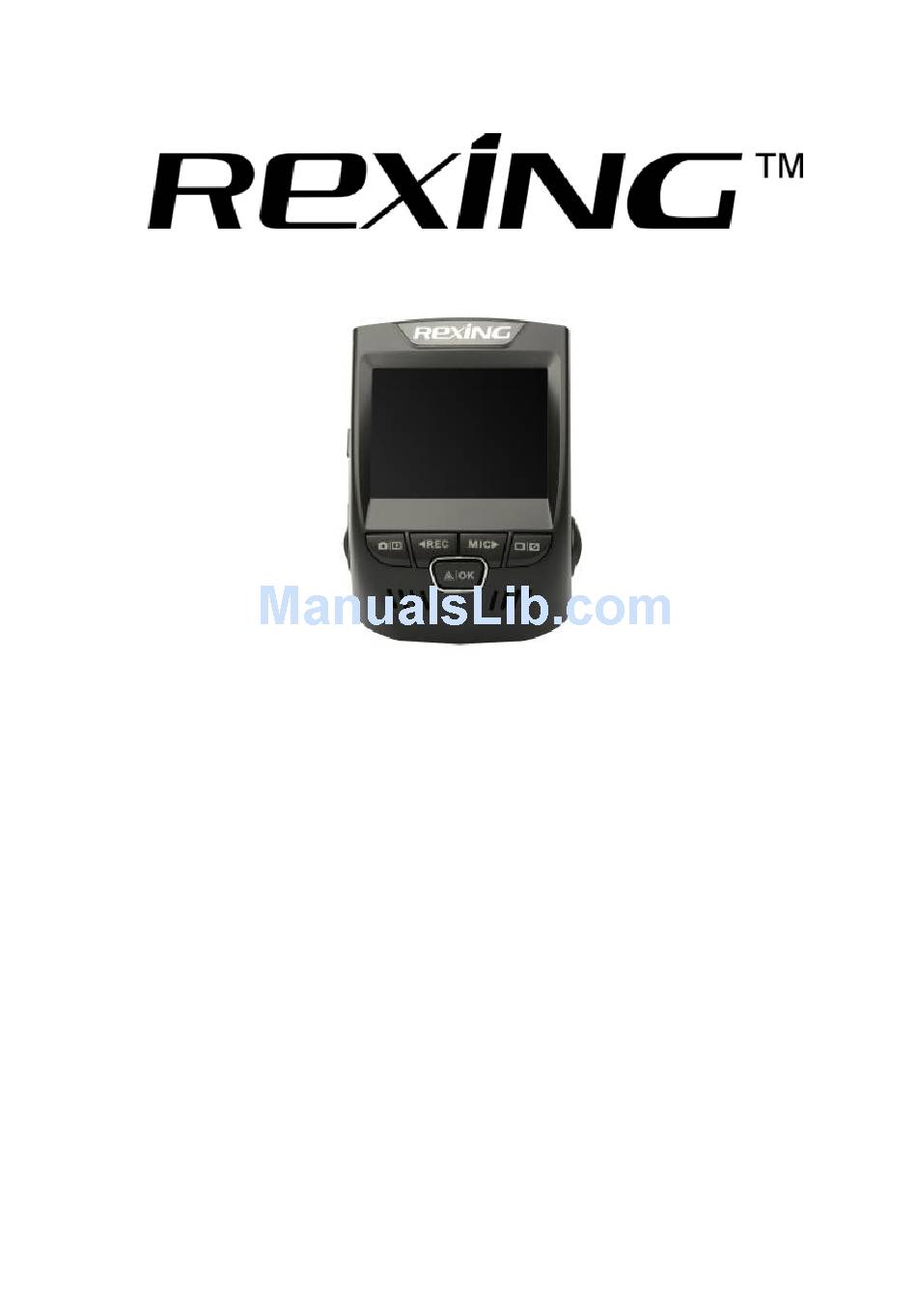

USER MANUAL

All brand and product names are trademarks or registered trademarks of
DWCO ELECTRONICS CO., LTD.
The information in this manual is subject to change without notice.
www.rexingusa.com
06/2016Rev3
1
© 2015 REXING All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V1P and is the answer not in the manual?

Questions and answers

Related Manuals for Rexing V1P

Summary of Contents for Rexing V1P

  • Page 1: User Manual

    USER MANUAL All brand and product names are trademarks or registered trademarks of DWCO ELECTRONICS CO., LTD. The information in this manual is subject to change without notice. www.rexingusa.com 06/2016Rev3 © 2015 REXING All Rights Reserved.

  • Page 2: Safety Information

    Use only manufacturer-approved batteries, chargers, accessories, and supplies.  Using generic chargers may shorten the life of your device or cause the device to malfunction. They may also cause fire or cause the battery to explode. © 2015 REXING All Rights Reserved.
  • Page 3  Rexing cannot be responsible for the user’s safety when using accessories or supplies that are not approved by Rexing. Do not drop the charger or device, or subject them to impact. Handle and dispose of the charger and device with care.
  • Page 4 Do not handle a damaged or leaking lithium ion (Li-Ion) battery. For safe disposal of your Li-Ion battery, contact your nearest authorized service center. © 2015 REXING All Rights Reserved.
  • Page 5 If you notice strange smells or sounds coming from your device, or if you see smoke or liquid leaking from the device, stop using the device immediately and take it to a Rexing Service Center. Failure to do so may result in fire or explosion.
  • Page 6 Do not attempt to disassemble, repair, or modify your device.  Any changes or modifications to your device can void your manufacturer’s warranty. If your device needs servicing, take it to an authorized Rexing Service Center. © 2015 REXING All Rights Reserved.
  • Page 7 Do not distribute copyright-protected material. Doing so without the permission of the content owners may violate copyright laws. The manufacturer is not responsible or liable for any legal issues that result from the user’s illegal use of copyrighted material. © 2015 REXING All Rights Reserved.
  • Page 8 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. © 2015 REXING All Rights Reserved.
  • Page 9 ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL REXING BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES...
  • Page 10 Third party services may be terminated or interrupted at any time, and Rexing makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Rexing has no control.

  • Page 11: About This Manual

    Content may differ from the final product or from software provided by service providers, and is subject to change without prior notice.  For the latest version of this manual, refer to the Rexing website at www.rexingusa.com.  Available features and additional services may vary by device and software.

  • Page 12: Table Of Contents

    Turning the Device On and Off ..............27 VIDEO SETTINGS .................... 28 Resolution ....................28 Dual Record ....................28 Loop Recording .................... 29 Time-lapse Record ..................30 WDR (Wide Dynamic Range) ............... 30 Exposure ...................... 31 © 2015 REXING All Rights Reserved.
  • Page 13 GPS ......................38 Update time of GPS ..................38 Restore Default Factory Settings ..............38 Playback Mode ..................... 39 Deleting Files ....................39 PHOTO SETTINGS ..................41 Resolution ....................41 Capture Mode ....................41 © 2015 REXING All Rights Reserved.
  • Page 14 ISO ....................... 44 Exposure ...................... 45 Anti-Shaking ....................45 Quick Review ....................46 Date Stamp ....................46 Playback Mode (Photo) ................47 Updating Firmware .................... 48 Driving Recorder Player Instruction ..............49 General Troubleshooting................... 51 © 2015 REXING All Rights Reserved.

  • Page 15: Product Specifications

    3 min / 5 min / 10 min / OFF Loop Recording 15 Secs / 1 min / 3 min / OFF Screen Saver 3 min / 5 min / 10 min / OFF Auto Shutdown Microphone Mute ON / OFF © 2015 REXING All Rights Reserved.

  • Page 16: Getting Started

    Getting Started Overview of your V1P Dashboard Camera GETTING STARTED Device Layout 1. Mode Button MircoSD Card Slot 2. Up Navigation Button Power On/ Off Switch Record Button Reset Button 3. OK (Confirm) Button Menu Button Emergency Lock Button 10. Lens Angle Adjuster 4.

  • Page 17: Buttons

    Getting Started Understanding your V1P Dashboard Camera Buttons Button Functions POWER – Press and hold to turn the device on or off  Press to confirm a selection while in Setting Mode  Recording Mode Hot Key: Emergency Lock (Press to manually lock the file during recording) MENU –...

  • Page 18: Status Icons

    Getting Started Understanding your V1P Dashboard Camera Status Icons Icon Meaning Video Resolution Wide Dynamic Range Charging via USB Charger Battery Power Level Microphone Mute Microphone On Video Recording Mode Video Playback Mode Photo Mode Loop Recording Memory Card Inserted...
  • Page 19 Getting Started Understanding your V1P Dashboard Camera G- Sensor Sensitivity White Balance GPS Signal (Green-GPS OK, Blue-Acquiring GPS) License plate number © 2015 REXING All Rights Reserved.

  • Page 20: Package Contents

    All supplied items are designed for use only with this device and may not be compatible with other devices. Malfunctions resulting from the use of unapproved accessories are not covered by the warranty service. For more information about available accessories, refer to the Rexing website at www.rexingusa.com. © 2015 REXING All Rights Reserved.

  • Page 21: Installation

    Getting Started Installing your V1P Dashboard Camera Installation Video guide: video.rexingusa.com 1. Attaching the front camera to the window mount Before the device can be used in a car, it is essential to first install a properly attached window mount. Make sure that you place the recorder in a safe, appropriate location where it will not obstruct the driver’s view.
  • Page 22 Class 10 memory card with a capacity of at least 8GB. 4. Connecting the charger to the car's 12V DC outlet Be sure to connect only the Rexing-approved charger designed and supplied specifically for use with your device. Using an incompatible charger can cause serious personal injury or damage to your device.

  • Page 23: Charging The Battery

    12V DC power outlet.  Battery is mainly used to save files in emergency. Please always connect Rexing V1P to external power while it is in use.  When device detects no power supply, it will automatically power off after 5 seconds.

  • Page 24: Inserting The Memory Card

    Getting Started Installing your V1P Dashboard Camera  If the device is not charging properly, take the device and the charger to an authorized Rexing Service Center. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

  • Page 25: Removing The Memory Card

    Getting Started Installing your V1P Dashboard Camera It is recommended that you reformat a memory card after every time that images are transferred from it to a computer, or at least once a month. Reformatting a memory card keeps important elements of data and file structure clean, helping to prevent error messages and missing images.

  • Page 26: Formatting The Memory Card

    Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss or corruption, or damage to the memory card or device. Rexing is not responsible for losses that result from the use of damaged memory cards, including the loss of data.

  • Page 27: Turning The Device On And Off

    A goodbye message will be displayed onscreen as shown in the image below. Note: The V1P Dashboard Camera will switch on and off automatically if you keep it permanently connected to the car charger. © 2015 REXING All Rights Reserved.

  • Page 28: Video Settings

    Operating your V1P Dashboard Camera Video Settings VIDEO SETTINGS Resolution Recommend setting: 1080FHD Use the following procedure to set the recording resolution: 1. Press MENU once to enter Video Settings 2. Press the UP or DOWN button to navigate to the "Resolution" option 3.

  • Page 29: Loop Recording

    Operating your V1P Dashboard Camera Video Settings Loop Recording Recommend setting: 3 Minutes With Loop Recording Mode enabled, the device will continuously erase older video as it records new video, keeping only the images captured over a user- selected time range. All video older than this range will be replaced with new video.

  • Page 30: Time-Lapse Record

    Operating your V1P Dashboard Camera Video Settings Time-lapse Record Recommend setting: Off Time-lapse photography is a technique whereby the frequency at which film frames are captured (the frame rate) is much lower than that used to view the sequence. When played at normal speed, time appears to be moving faster and thus lapsing.

  • Page 31: Exposure

    Operating your V1P Dashboard Camera Video Settings Exposure Recommend setting: +0.0 Adjust the camera exposure value for brighter or darker recorded video, according to your preference. 1. Press MENU once to enter Video Settings 2. Press the UP or DOWN button to navigate to the "Exposure" option 3.

  • Page 32: Date Stamp

    Operating your V1P Dashboard Camera Video Settings Date Stamp You have the option to display the date and time in your videos. Note that the date and time stamp cannot be removed from videos if this feature was enabled at the time of recording.

  • Page 33: Gravity Sensing

    Operating your V1P Dashboard Camera Video Settings Gravity Sensing Recommend setting: Low This feature acts as an accelerometer, measuring physical and gravitational forces acting on the camera itself. In the event that such forces are detected, the device will perform an automatic file lock. (Locked video files cannot be erased during Loop Recording;...

  • Page 34: System Settings

    Operating your V1P Dashboard Camera System Settings SYSTEM SETTINGS Date/ Time Setup Use the following procedure to change the device’s time and date: 1. Press MENU twice to enter System Settings 2. Press the DOWN button to navigate to the "Date/Time" option 3.

  • Page 35: Beep Sound

    Operating your V1P Dashboard Camera System Settings Beep Sound This setting allows you to turn the device's button sound effect on or off. 1. Press MENU twice to enter Setup 2. Press the UP or DOWN button to navigate to the "Beep Sound" option 3.

  • Page 36: Light Frequency

    Operating your V1P Dashboard Camera System Settings 5. Press OK to confirm your entry Light Frequency Recommend setting: 60Hz This option should be set according to the power supply specification used in your country or geographical region (U.S. users should select the "60Hz"...

  • Page 37: Dst

    Operating your V1P Dashboard Camera System Settings Enable/Disable Daylight Saving Time 1. Press MENU twice to enter System Settings 2. Press the UP or DOWN button to navigate to the "DST" option 3. Press OK to view the current ON/OFF status for this feature 4.

  • Page 38: Gps

    Operating your V1P Dashboard Camera System Settings Select GPS speed unit (GPS Logger required) 1. Press MENU twice to enter System Settings 2. Press the UP or DOWN button to navigate to the "GPS" option 3. Press OK to view the current selection: KM/H / MI/H / OFF 4.

  • Page 39: Playback Mode

    Operating your V1P Dashboard Camera System Settings 2. Press the UP or DOWN button to navigate to the "Default Settings" option 3. Press OK to view YES / NO confirmation for this operation 4. Press the UP or DOWN button to make your selection 5.
  • Page 40 Operating your V1P Dashboard Camera System Settings 3. Press the DOWN button once to select "Delete" 4. Press OK once to view options for "Current MOV" file or "ALL" files. Select "Current MOV" 5. Press OK twice to delete file To delete all files: 1.

  • Page 41: Photo Settings

    Operating your V1P Dashboard Camera Photo Settings PHOTO SETTINGS Resolution This option allows you to set the pixel resolution for captured images. 1. Press MODE once to enter Photo Mode 2. Press MENU once to enter Photo Settings 3. Press the UP or DOWN button to navigate to the "Resolution" option 4.

  • Page 42: Sequence Mode

    Operating your V1P Dashboard Camera Photo Settings Sequence Mode This feature allows you to capture a sequence of 3 quick photos with one button press. 1. Press MODE once to enter Photo Mode 2. Press MENU once to enter Photo Settings 3.

  • Page 43: Sharpness

    Operating your V1P Dashboard Camera Photo Settings Sharpness This feature will automatically enhance captured images for a clearer, more distinct picture. 1. Press MODE once to enter Photo Mode 2. Press MENU once to enter Photo Settings 3. Press the UP or DOWN button to navigate to the "Sharpness" option 4.

  • Page 44: Color

    Operating your V1P Dashboard Camera Photo Settings Color This feature allows you to choose a color effect for captured images. 1. Press MODE once to enter Photo Mode 2. Press MENU once to enter Photo Settings 3. Press the UP or DOWN button to navigate to the "Color" option 4.

  • Page 45: Exposure

    Operating your V1P Dashboard Camera Photo Settings Exposure This setting allows you to adjust the brightness level of captured images. The "+0.0" setting is recommended. 1. Press MODE once to enter Photo Mode 2. Press MENU once to enter Photo Settings 3.

  • Page 46: Quick Review

    Operating your V1P Dashboard Camera Photo Settings Quick Review Enabling this feature will allow you to immediately view each captured image for a few seconds before taking the next photo. 1. Press MODE once to enter Photo Mode 2. Press MENU once to enter Photo Settings 3.

  • Page 47: Playback Mode (Photo)

    Operating your V1P Dashboard Camera Photo Settings Playback Mode (Photo) Follow these steps to view captured images as a continuous slide show. 1. Press MODE twice to enter Photo View Mode 2. Press the UP or DOWN button to navigate through the stored image files 3.

  • Page 48: Updating Firmware

    Operating your V1P Dashboard Camera Updating Firmware Updating Firmware The following procedure will allow you to use the Rexing website to update firmware for your V1P Dashboard Camera. This is necessary for enabling all available features on your device. 1. Download the firmware file to your computer 2.

  • Page 49: Driving Recorder Player Instruction

    Operating your V1P Dashboard Camera Driving Recorder Player Driving Recorder Player Instruction "Driving Recorder Player Software" is designed to play recorded videos along with displaying GPS data and driving routes on a computer. Minimum System Requirements: CPU: Intel Core 2 Duo 2.4GHz...
  • Page 50 Operating your V1P Dashboard Camera Driving Recorder Player The Software Main Screen A. Menu B. Video player C. Longitude and latitude D. Speedometer E. Playlist Mini logger G. Google Map © 2015 REXING All Rights Reserved.

  • Page 51: General Troubleshooting

    Operating your V1P Dashboard Camera Troubleshooting General Troubleshooting Problem Possible Cause Solution 1. Memory card may be full 1. Reformat memory card or or malfunctioning The captured image replace with a new one 2. Image not being saved is not stored 2.
  • Page 52 Operating your V1P Dashboard Camera Troubleshooting Problem Possible Cause Solution Use a compatible class- Recording stops unexpect- Incompatible memory card 10 microSD card with a edly in Video Mode is inserted capacity of at least 8GB “File error" is encountered...
