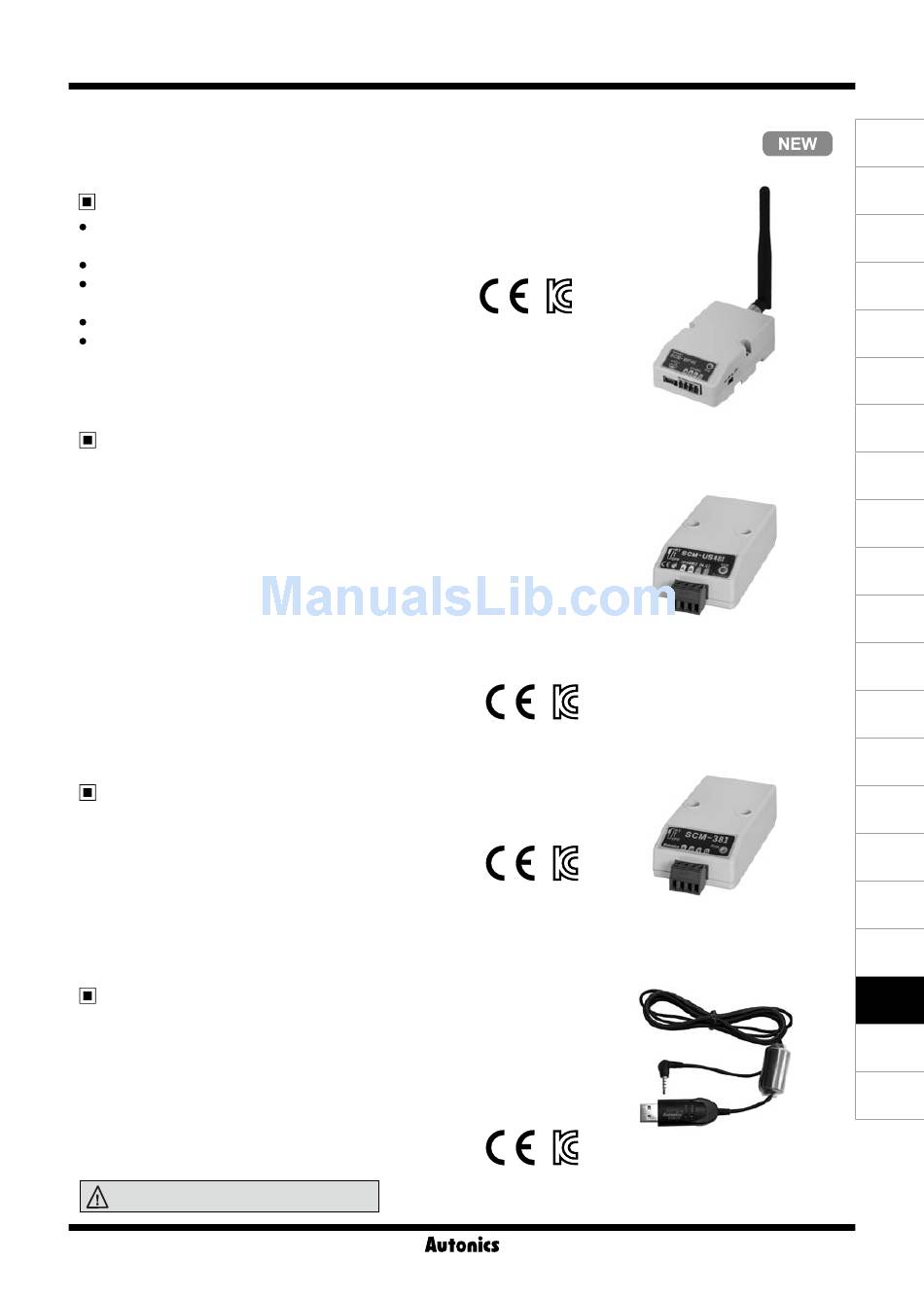

Autonics SCM-WF48 Quick Manual

SCM Series
SCM-WF48
Wi-Fi/RS485, USB wireless communication converter
(converting Wi-Fi to RS485, USB)
Features
Converting USB or RS485 signal to Wi-Fi signal and wireless
communication up to max. 100m
Compact size(W48×H25.3×L76mm, excepting antenna)
Built-in surge protection circuit,
reverse polarity protection circuit
Supports AP mode and infrastructure mode
DIN rail and panel mounting

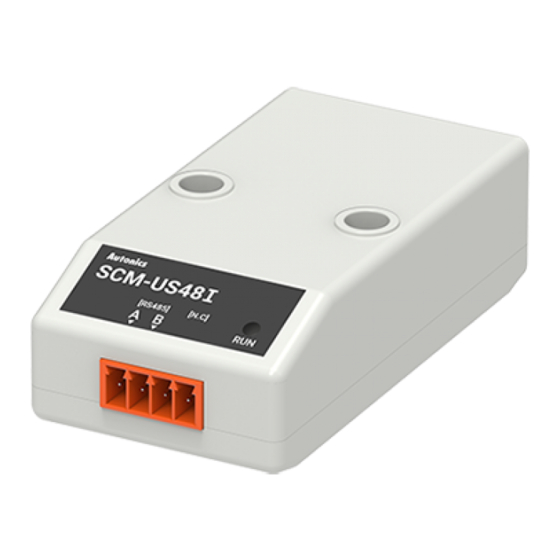

SCM-US48I
USB to Serial converter(converting signal USB to Serial)
Features
● Available to transmit signals to max. 1.2km by
converting USB signal to RS485 signal
● Realizing electrical insulation(2500V RMS) between
USB port and RS485 port through RS485 transceiver.
● Improved stability and durability with built-in protection circuit
● Easy connections between devices with bus power supplied
from USB host controller without external power supply
● Offering USB 2.0 A/B type cable with built-in ferrite core
for noise reduction
● Various operating systems supported
(Windows 98, 98SE, ME, 2000, Server 2003, XP, Vista, 7)
● User friendly features through compatibility with USB 1.1 and USB 2.0
SCM-38I
RS232C to RS485 converter(converting signal RS232C to RS485)
Features
● Built-in surge protection circuit
● The insulation type of signal line
(Insulating RS232C and RS485)
● Create Tx-Enable signal automatically
SCM-US
USB to Serial converter(converting signal USB to Serial)
Features
● Applicable OS : Windows 98, 98SE, ME, 2000,
Server 2003, XP, Vista, 7
● Both USB 1.1 and USB 2.0 compatible
● Data transmission / power supply indicating LED
● Easy to connect with PC
● Built-in protection circuit
● Ferrite core cable for noise reduction
● Non-isolation type
Please read "Caution for your safety" in operation
manual before using.
