Autonics CN-6000 Series Product Manual

TCD210080AA
Isolated Converters

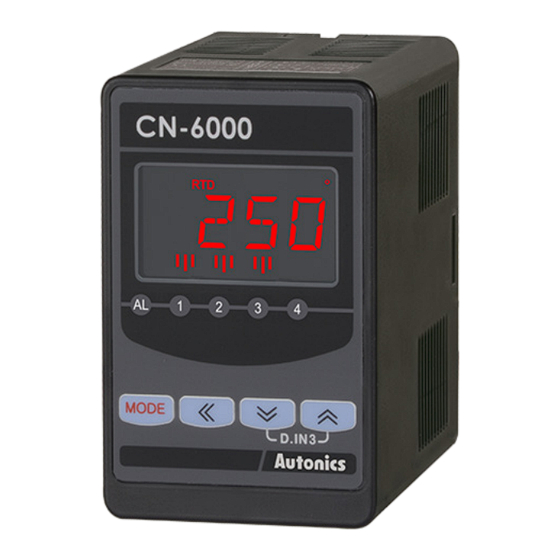

CN-6000 Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.

Features

• Multi-input
- CN-610□-□ : Thermocouple 12 types, RTD 5 types, Analog (mV, V, mA) 6 types
- CN-640□-□ : 0 to 50.00kHz
• Improved visibility with negative LCD
: 12 segment, 3 colors (selectable red, green, yellow)
• Displays input type and unit on display part
• Various outputs
- Alarm output: 1 EA / 2 EA / 4 EA
- 0 - 20 mA transmission output (adjustable insulation, output range), 0 - 10 VDCᜡ
voltage output (adjustable insulation, output range)
• Various functions
- High / Low peak input monitoring
- Alarm output (upper / lower, sensor break)
- Transmission output / display scale
- Digital input key (DI), etc.
• Built-in power supply for sensor / transmitter (24 VDCᜡ)
ᜢ ᜫ

Safety Considerations

• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime / disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable / explosive / corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Install on a device panel to use.
Failure to follow this instruction may result in fire or electric shock.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in electric shock.
05. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
06. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
03. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire.
Cautions during Use
• Follow instructions in 'Cautions during Use' .
Otherwise, It may cause unexpected accidents.
• Power supply should be insulated and limited voltage / current or Class 2, SELV power
supply device.
• Install a power switch or circuit breaker in the easily accessible place for supplying or
disconnecting the power.
• Keep away from high voltage lines or power lines to prevent inductive noise.
In case installing power line and input signal line closely, use line filter or varistor at
power line and shielded wire at input signal line.
• This unit may be used in the following environments.
- Indoors / Outdoors
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category II
