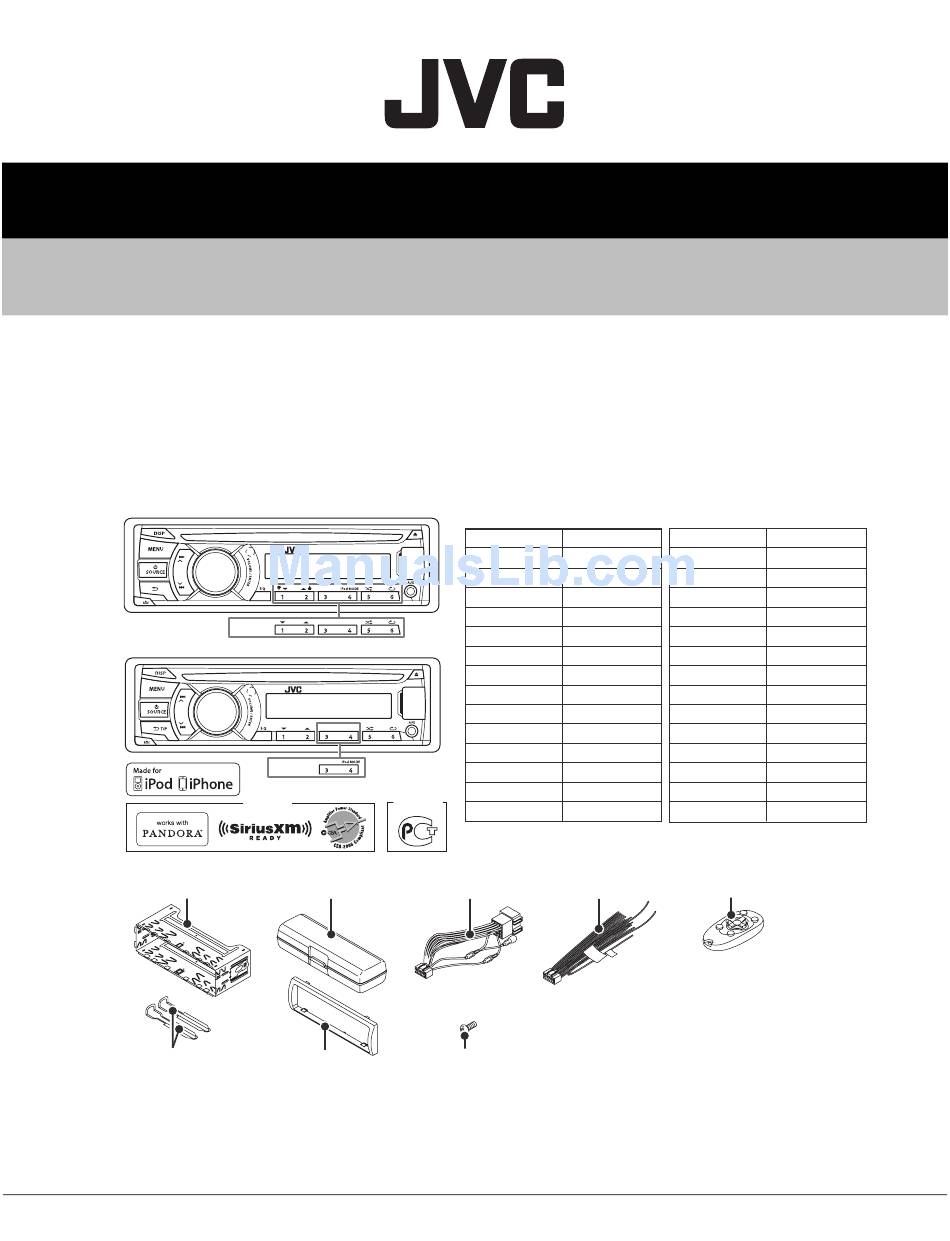

SERVICE MANUAL
KD-R440J, KD-R440JW, KD-R441E, KD-R441EN, KD-R441EU,
2013
5 S ERVICE MANUAL
MA538<Rev.003>
KD-R441EY, KD-R442E, KD-R442EN, KD-R442EY, KD-R443E,
KD-R443EN, KD-R443EY, KD-R444UI, KD-R445U, KD-R445UN,
KD-R446EU, KD-R446U, KD-R446UN, KD-R446UP, KD-R446UT,
KD-R447EE, KD-R449E, KD-R449EE, KD-R449UR, KD-R540J,
KD-R541E, KD-R541EN, KD-R541EY, KD-R547EE
For US
KD-R440
For Asia,Europe
For US
Mounting sleeve
(GE20316-001A)
Hook
(GE40643-001A) x2
COPYRIGHT © 2013 JVC KENWOOD Corporation
CD RECEIVER
KD-R541
For Erope
(RU,UK)
Hard case assy *
DC cord *
(GE32320-001A)
(QAM1344-00x)
Trim plate *
Tap screw (2x8) *
(QYSDSF2008ZA)
(GE2031x-001A)
Lead free solder used in the board (material: Sn-Ag-Cu, melting point: 219 Centigrade)
Lead free solder used in the board (material: Sn-Cu, melting point: 230 Centigrade)
COPYRIGHT © 2013 JVC KENWOOD Corporation
DETACHABLE PANEL
Model
Parts number
KD-R440J
CP-R440JD
KD-R440JW
CP-R440JD
KD-R441E
CP-R441ED
KD-R441EY
CP-R441ED
KD-R441EN
CP-R441ED
KD-R441EU
CP-R441ED
KD-R442E
CP-R442ED
KD-R442EY
CP-R442ED
KD-R442EN
CP-R442ED
KD-R443E
CP-R443ED
KD-R443EY
CP-R443ED
KD-R443EN
CP-R443ED
KD-R444UI
CP-R444UID
KD-R445U
CP-R445UD
DC cord *
(QAM13xx-001)
* It uses it by some models.
Refer to the parts list.
Model
Parts number
KD-R445UN
CP-R445UD
KD-R446EU
CP-R446UD
KD-R446U
CP-R446UD
KD-R446UN
CP-R446UD
KD-R446UP
CP-R446UD
KD-R446UT
CP-R446UD
KD-R447EE
CP-R447EED
KD-R449E
CP-R449EED
KD-R449EE
CP-R449EED
KD-R540J
CP-R540JD
KD-R541E
CP-R541ED
KD-R541EY
CP-R541ED
KD-R541EN
CP-R541ED
KD-R547EE
CP-R547EED
Remocon unit (RM-RK52) *
(RM-RK52xx)
No.MA538<Rev.003>
2013/5
