SERVICE MANUAL
System
Laser
Semiconductor laser
Signal format system
NTSC/PAL
Audio characteristics
DVD (PCM 96 kHz): 2 Hz to 44 kHz (–2 dB ± 1 dB at 44 kHz)
Frequency response
SACD: 2 Hz to 100 kHz (–3 dB ± 1 dB at 50 kHz)
CD: 2 Hz to 20 kHz (±0.5 dB)
Signal-to-noise ratio (S/N ratio)
115 dB (DVD VIDEO) (AUDIO OUT L/R 1/2 jacks only)
Harmonic distortion
0.002 %
Dynamic range
DVD VIDEO/SACD: 103 dB
CD: 99 dB
Wow and flutter
Less than detected value (±0.001% W PEAK)
Outputs
Jack name
Jack type
AUDIO OUT L/R
Phono jack
DIGITAL OUT (OPTICAL)
Optical output jack
DIGITAL OUT (COAXIAL) Phono jack
5.1CH OUTPUT
Phono jack
COMPONENT VIDEO
Phono jack
OUT(Y, P
/C
, P
/C
)
B
B
R
R
VIDEO OUT
Phono jack
S VIDEO OUT
4-pin mini DIN
PHONES
Phone jack
http://getMANUAL.com

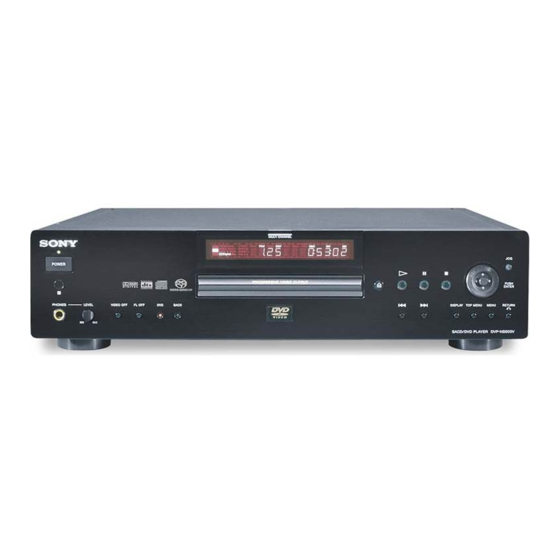

Photo: Titanium gray type

SPECIFICATIONS

Output level
Load impedance
2 Vrms (at 50 kilohms)
Over 10 kilohms
–18 dBm
Wave length: 660 nm
0.5 Vp-p
75 ohms terminated
2 Vrms (50 kilohms)
Over 10 kilohms
Y: 1.0 Vp-p
75 ohms, sync negative
P
/C
, P
/C
: 0.7 Vp-p
75 ohms
B
B
R
R
1.0 Vp-p
75 ohms, sync negative
Y: 1.0 Vp-p
75 ohms, sync negative
C: 0.3 Vp-p (PAL)
75 ohms terminated
0.286 Vp-p (NTSC)
12mW
32 ohms
DVP-NS900V
RMT-D139P/D140A/D140E/D140P
Hong Kong Model
General
Power requirements
120 V AC, 60 Hz (US, CND, MX)
220 to 240 V AC, 50/60 Hz (AEP, UK, RUS)
220 V AC, 60 Hz (HK, KR)
See page 2 for further information.
Power consumption
25 W (AEP, UK, RUS)
26 W (EXCEPT AEP, UK, RUS)
430 × 113 × 343 mm (w/h/d) incl. projecting parts
Dimensions (approx.)
Mass (approx.)
5.3 kg
5 ° C to 35 ° C
Operating temperature
Operating humidity
25 % to 80 %
Supplied accessories
Check that you have the following items:
• Audio/video cord (pinplug × 3 y pinplug × 3) (1)
• S VIDEO cord (1)
• Remote commander (remote) RMT-D139P (1) (AEP1, AEP3, UK1, RUS)
• Remote commander (remote) RMT-D140A (1) (US, CND, MX)
• Remote commander (remote) RMT-D140E (1) (HK, KR)
• Remote commander (remote) RMT-D140P (1) (AEP2, UK2)
• Size R6 (AA) batteries (2)
Specifications and design are subject to change without notice.
• Abbreviation
CND
: Canadian
HK
: Hong Kong
KR
: Korea
MX
: Mexican
RUS
: Russian
SACD/DVD PLAYER
US Model
Canadian Model
AEP Model
UK Model
Russian Model
Mexico Model
Korea Model
