- Use of the amplifier with an incorrect band filter selected, or without a well-
adjusted antenna, may damage the amplifier.

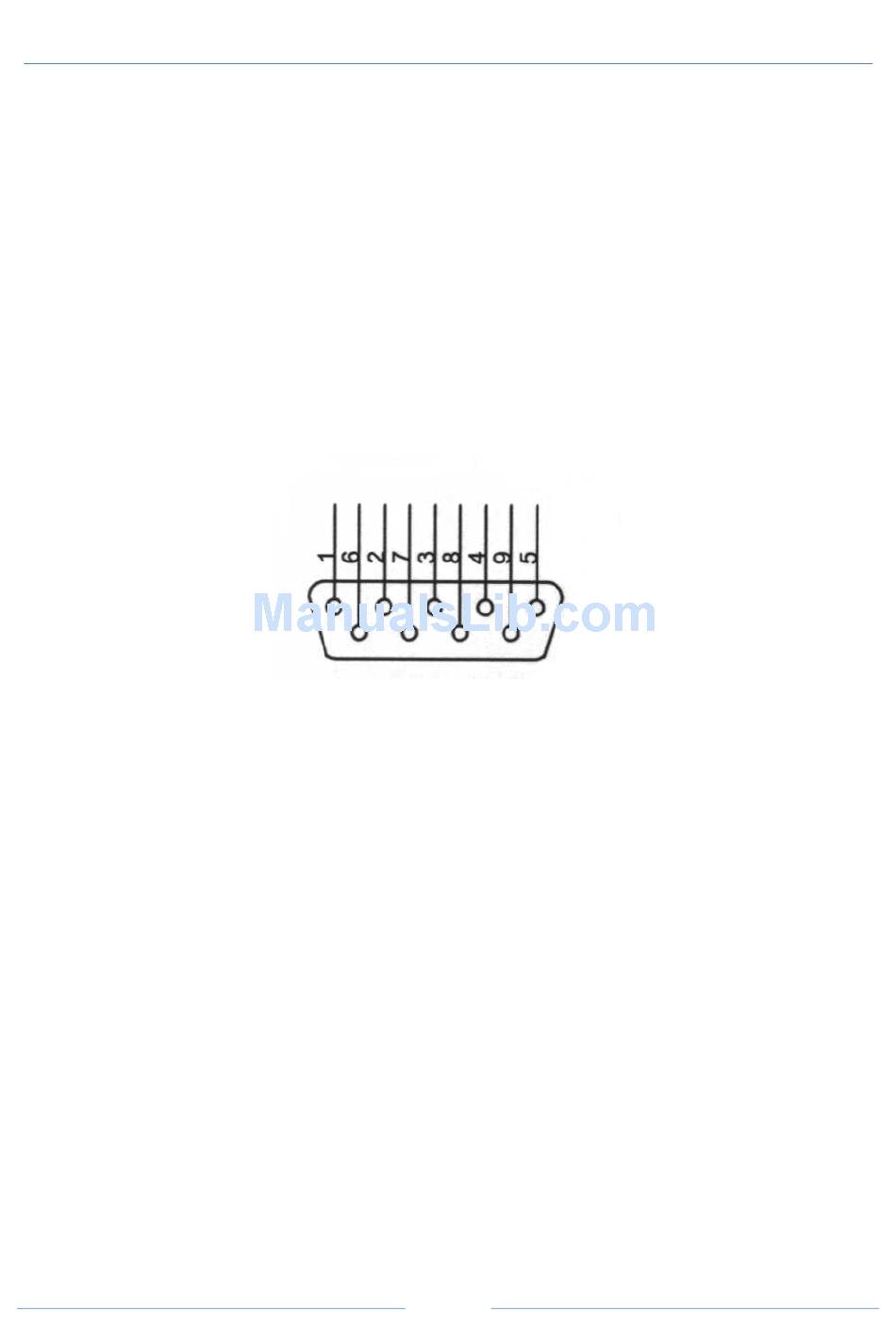

12 K3 ELECRAFT™ TRANSCEIVER CONTROL CABLE SCHEMATIC
DIAGRAM
This section explains the electrical connections to control the amplifier with a K3 ELECRAFT™
transceiver provided of D-SUBHD (15 pin) "ACC" connector.
D-SUB (9 pin) NR. :
1
2
3
4
5
6
7
8
9
Note: as cable use a five wire plus shield quality shielded cable.
PLUS
HVLA1K3
" AUTO B" D-SUB (9 pin) male connector
NOTE: as viewed from rear panel
CONNECT TO K3 ELECRAFT™ ACC CONNECTOR NAMED:
BAND0 OUT
BAND1 OUT
BAND2 OUT
BAND3 OUT
N.C.
KEYOUT-LP
N.C.
N.C.
GROUND
Page
15
USERS MANUAL
