- Use of the amplifier with an incorrect band filter selected, or without a well-
adjusted antenna, may damage the amplifier.
10 YAESU™ TRANSCEIVER CONTROL CABLE SCHEMATIC DIAGRAM
This section explains the electrical connections to control the amplifier with a YAESU™ transceiver
provided of "Band Data" pins.
D-SUB (9 pin) NR. :
1
2
3
4
5
6
7
8
9
Note: as cable use a five wire plus shield quality shielded cable.
PLUS
HVLA1K3

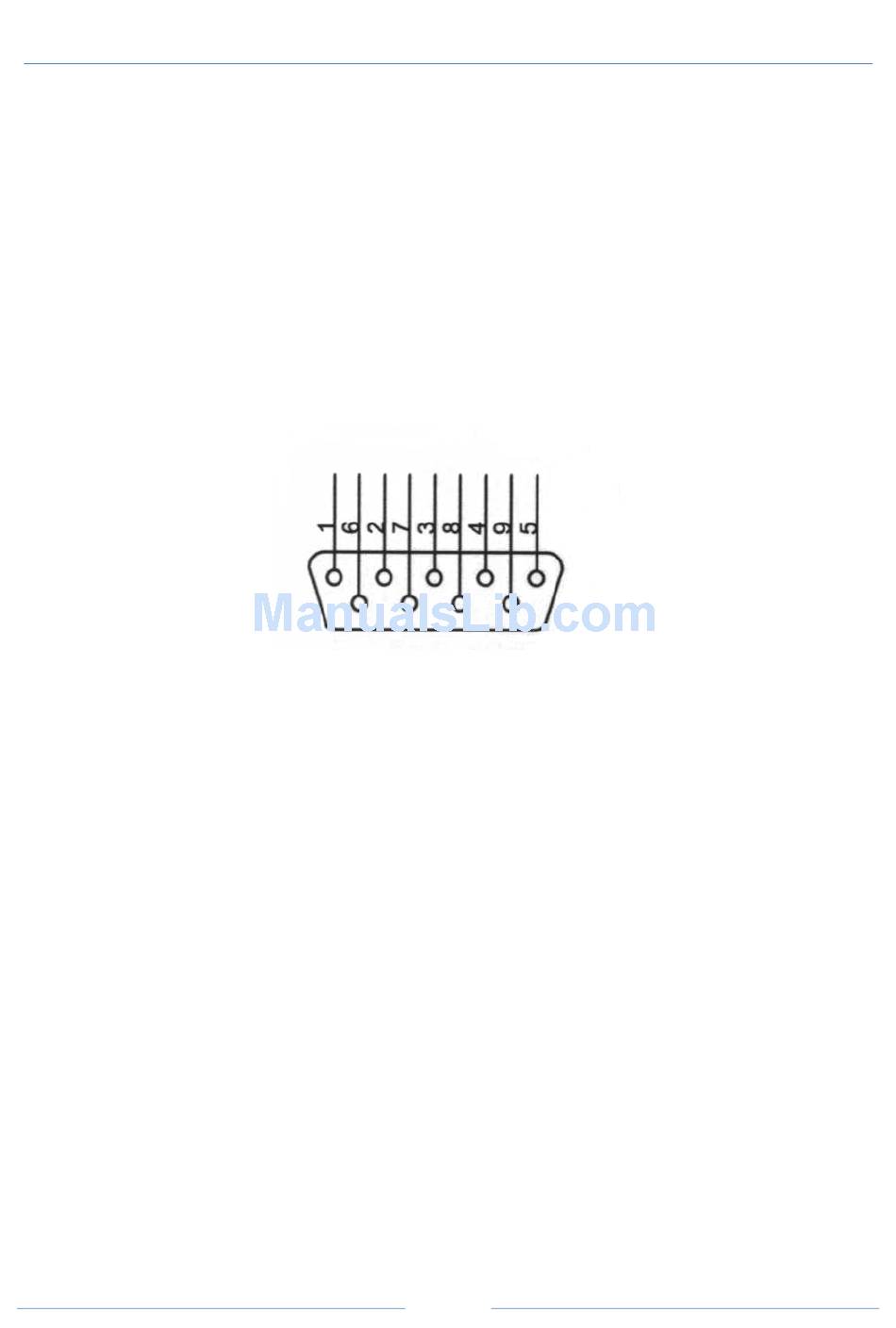

" AUTO B" D-SUB (9 pin) male connector
NOTE: as viewed from rear panel
CONNECT TO YAESU™ REMOTE TERMINALS NAMED:
(LINEAR – BAND DATA)
BAND DATA A
BAND DATA B
BAND DATA C
BAND DATA D
N.C.
TX GND
N.C.
N.C.
GND (GROUND)
