System Example - Alpine IVA-W520E Operating Instructions Manual

System Example

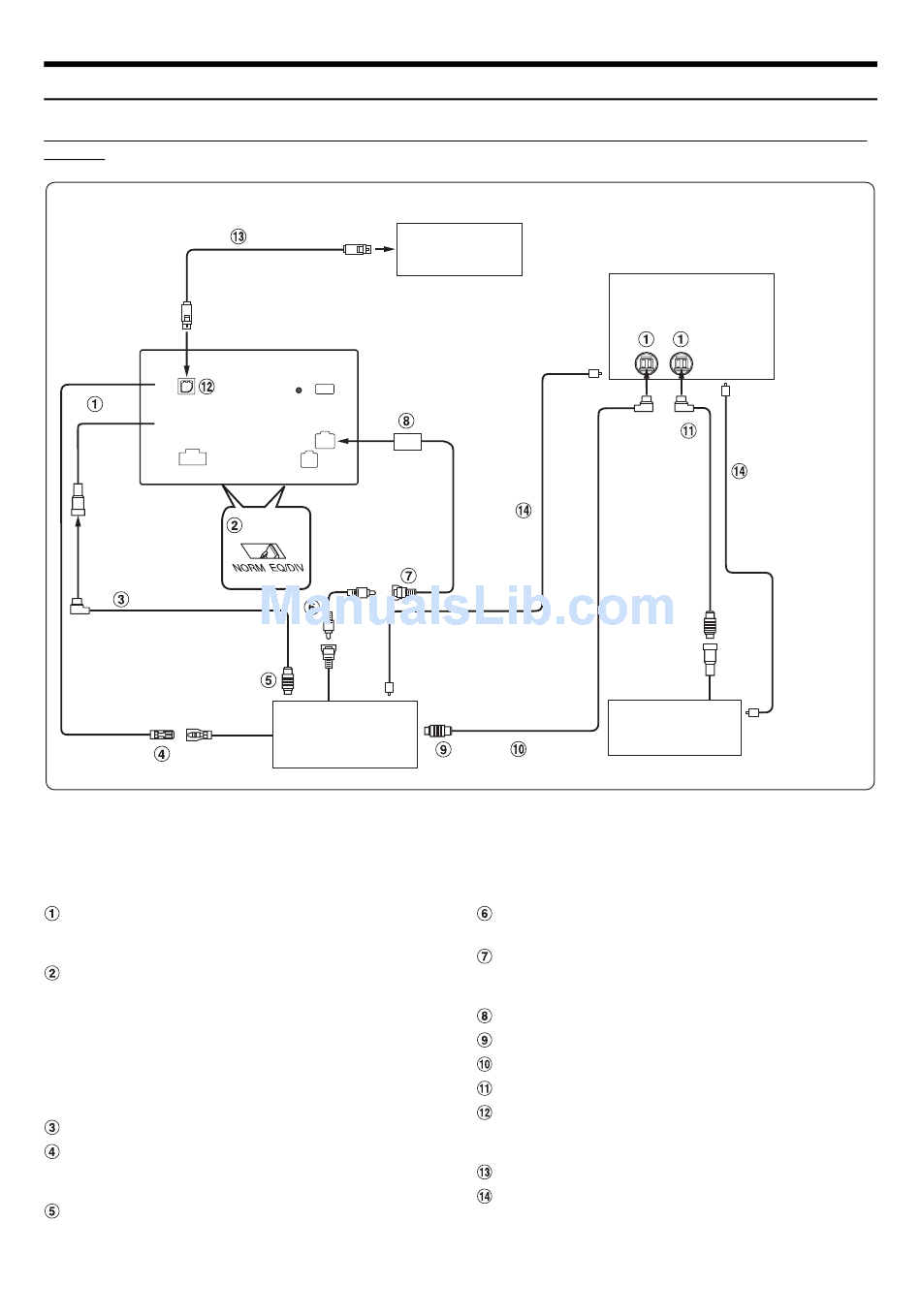

Connect the Ai-NET compatible audio processor (Fiber optic digital compatible), Navigation system, DVD player and
changer.
Ai-NET cable
(White/Brown)
(White/Brown)
REMOTE OUT
REMOTE IN
Please observe the following when using Fiber optic Cable.
• Do not coil the Fiber optic Cable smaller than a 30 mm radius.
• Do not place anything on top of the Fiber optic Cable.
• Be careful not to bend the Fiber optic Cable at a sharp angle.
Ai-NET Connector
Connect this to the output or input connector of other
product equipped with Ai-NET.
System Switch
When connecting an equalizer or divider using Ai-NET
feature, place the two switches in the EQ/DIV position.
When no device is connected, leave the switches in the
NORM position.
• Do not make the two switches to different settings.
• Be sure to turn the power off to the unit before changing the switch
position.
Ai-NET Cable (Included with DVD video player)
Remote Control Output Lead (White/Brown)
Connect this lead to the remote control input lead. This lead
outputs the controlling signals from the remote control.
To Ai-NET Connector (Grey)
70
-EN
Navigation system
(sold separately)
(Yellow)
DVD Video Player
(Ai-NET)
(DVA-5210, etc.)
(sold separately)
Audio Processor
(Ai-NET) (sold separately)
Fiber optic digital
Input terminal (for
DVD Player)
Fiber optic
cable
CD Changer
Ai-NET cable
(Ai-NET)
(sold separately)
*Only connect Fiber optic digital compatible CD Changer
RCA Extension Cable (Included with DVD video
player)
Video Input Connector (AUX INPUT) (Yellow)
Connect the video output lead of a DVD video player or
DVD changer to this terminal.
AUX I/O Connector
To Ai-NET Connector (Black)
Ai-NET Cable (Included with Audio Processor)
Ai-NET Cable (Included with CD Changer)
RGB Input Terminal
Connect this to the RGB output terminal of the Navigation
System.
RGB Cable (Included with Navigation)
Fiber Optic Cable (Sold Separately)
Fiber optic digital
Input terminal (for
Changer)
Ai-NET
cable * Fiber optic cable
