SERVICE MANUAL
DVD-VIDEO Player
TM
DIGITAL VIDEO
3 / 05-A
68E38377S01
DVE-5207

Advertisement

loading
Need help?

Need help?

Do you have a question about the DVE-5207 and is the answer not in the manual?

Questions and answers

Related Manuals for Alpine DVE-5207

Summary of Contents for Alpine DVE-5207

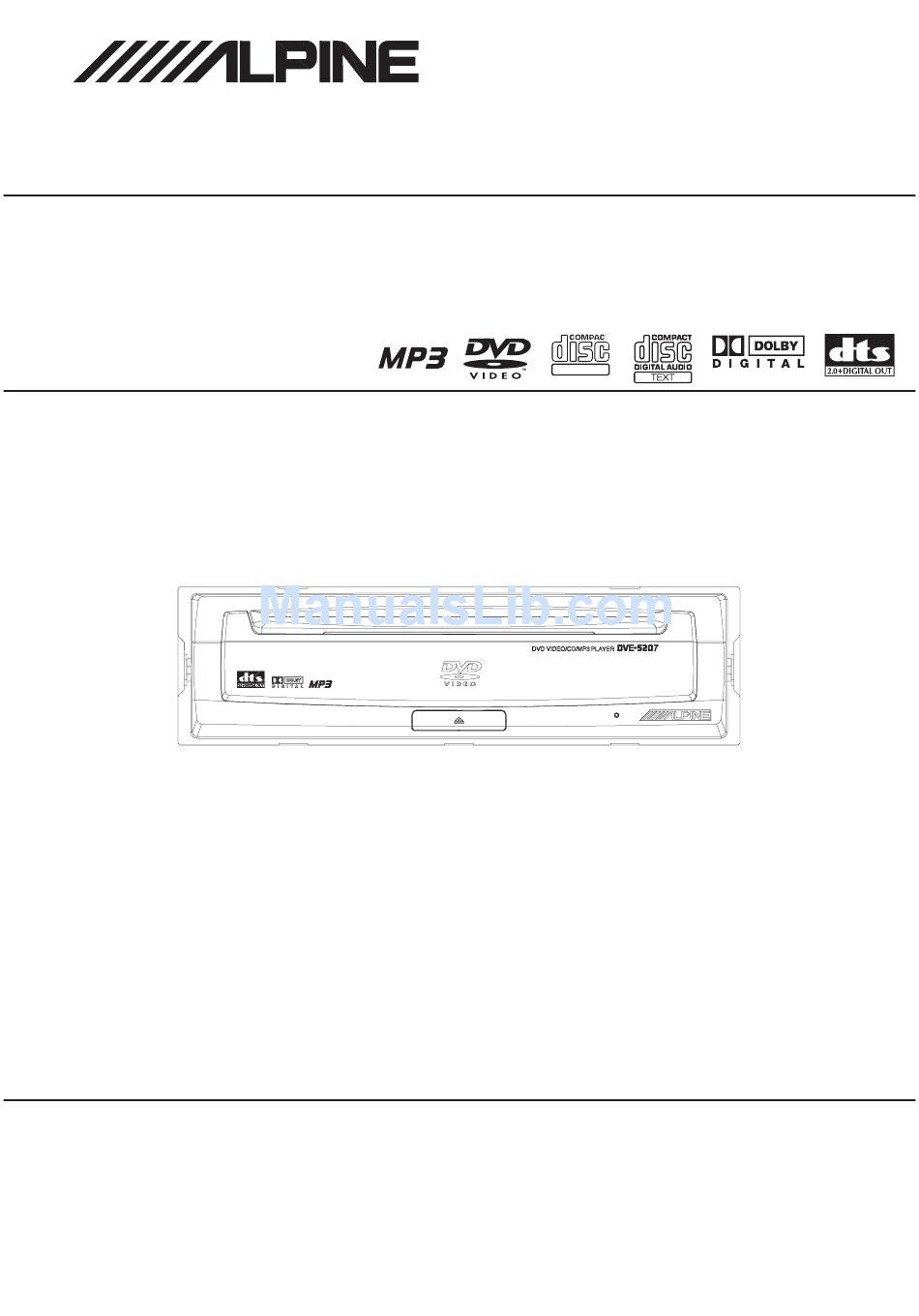

  • Page 1 SERVICE MANUAL DVD-VIDEO Player DIGITAL VIDEO 3 / 05-A 68E38377S01 DVE-5207...
  • Page 2 <Cautions for Safe Repair Work> The following cautions will prevent accidents in the workplace and will ensure safe products. *The symbols indicate caution is needed to prevent injuries and damage to property. The symbols and their meanings follow. If you ignore this symbol and handle the product incorrectly or unsafely, Warning serious injury or death may result.
  • Page 3 DVE-5207 Packing Assembly Parts List Symbol Part No. Description Symbol Part No. Description 01T25634Y02 ASSY,WIRE VIDEO 2000 #2 103-6 60S70585F01 BAT,LIT.3V (CR2025) 01T15832W11 ASSY,RCA CABLE 2.0-2 $1 104 15D00529K02 CASE,INNER $1 103-1 03S60820Y16 SCR,MCH 5X8 ZN A %1 104 15D00529K02 CASE,INNER $1,%1,&1,#2...

  • Page 4: System Connections

    • Remote Control Input Lead White/Brown REMOTE IN White/ To remote control This lead is used in combination with an ALPINE monitor Brown output lead with a remote control output lead. • Ground Lead Black Connect this lead to a good chassis ground on the vehicle.
  • Page 5 DVE-5207 System Example Connecting an Ai-NET compatible Head Unit, Digital Audio Processor (PXA-H701, PXA-H900, etc.) and ALPINE TV Monitor ALPINE TV Monitor (Sold Separately) ALPINE TV Tuner (Sold Separately) AUX Video Input Remote Control Digital Audio Processor Terminal (AUX1) Output Lead (AUX1)
  • Page 6 DVE-5207 Connecting Another Manufacturer’s TV Monitor TV Monitor (Sold Separately) TV Tuner (Sold Separately) AUX Video Input Terminal (AUX1) Not Used Remote Control Input Lead (White/Brown) Video Output Connector Remote Control DVD Player Eye Jack DVE-5207 RCA Extension Cable (Included)
  • Page 7 • Remote Control Input Lead White/Brown REMOTE IN To remote control White/ This lead is used in combination with an ALPINE monitor output lead Brown with a remote control output lead. • Ground Lead Black Connect this lead to a good chassis ground on the vehicle.
  • Page 8 DVE-5207 System Example Connecting an Ai-NET compatible Head Unit, Digital Audio Processor (PXA-H701, PXA-H900, etc.) and ALPINE TV Monitor ALPINE TV Monitor (Sold Separately) ALPINE TV Tuner (Sold Separately) AUX Video Input Remote Control Digital Audio Processor Terminal (AUX1) Output Lead (AUX1)
  • Page 9 DVE-5207 Connecting Another Manufacturer’s TV Monitor TV Monitor (Sold Separately) TV Tuner (Sold Separately) AUX Video Input Terminal (AUX1) Not Used Remote Control Input Lead (White/Brown) Video Output Connector Remote Control DVD Player Eye Jack DVE-5207 RCA Extension Audio Output...
  • Page 10 White/Brown REMOTE IN • Remote Control Input Lead To remote control White/ This lead is used in combination with an ALPINE monitor output lead Brown with a remote control output lead. • Ground Lead Black Connect this lead to a good chassis ground on the vehicle.
  • Page 11 DVE-5207 System Example Connecting an Ai-NET compatible Head Unit, Digital Audio Processor (PXA-H701, PXA-H900, etc.) and ALPINE TV Monitor ALPINE TV Monitor (Sold Separately) ALPINE TV Tuner (Sold Separately) AUX Video Input Remote Control Digital Audio Processor Terminal (AUX1) Output Lead (AUX1)
  • Page 12 DVE-5207 Connecting Another Manufacturer’s TV Monitor TV Monitor (Sold Separately) TV Tuner (Sold Separately) AUX Video Input Terminal (AUX1) Not Used Remote Control Input Lead (White/Brown) Video Output Connector Remote Control DVD Player Eye Jack DVE-5207 RCA Extension Cable (Included)

  • Page 13: Specifications

    DVE-5207 Specifications <CD/DVD SECTION> System ............................. Optical (DVD System) (CD AUDIO) Channel Balance (1kHz, TCD-782) ........................0±3dB Distortion (1kHz, TCD-782) ..........................0.3% Frequency Response (Ref. 1kHz, TCD-782) ..................17Hz : 0±3dB 127Hz : 0±2dB 10.007kHz : 0±2dB 19.997kHz : 0±4dB S/N Ratio (TCD-782) ............................
  • Page 14 DVE-5207 (VIDEO-CD) *AUDIO (MPEG Audio) : Title Number 4/Audio Stream 2/LPCM 48k Channel Balance (1kHz, TVD-581A or HLV-402) ..................... 0±3dB Distortion (1kHz, TVD-581A or HLV-402) ......................0.3% Frequency Response (Ref. 1kHz, TVD-581A or HLV-402) ..............21Hz : 0±4dB 127Hz : 0±2dB 10.007kHz : 0±2dB...

  • Page 15: Extension Cable

    DVE-5207 Extension Cable *Always connect the Extension Cable when making checks of voltage and repair. MAIN P.W.Board DVD Deck Mechanism DV37M150 CB101 CB501 CB103 CB502 CH501 (1) 01E38367S01 (2) 01E37778S01 CB401 (3) 01V38366S01 FRONT P.W.Board - 16 -...

  • Page 16: Block Diagram

    DVE-5207 Block Diagram Buffer MUTE V-OUT Pre-OUT MUTE Buffer A-Mute MUTE DRIVER REMOTE CONTROL POWER SUPPLY Main CPU BLOCK RESET Audio DAC Batt-Det / VDD BATT PWR-ON / DVD SERVO BAT DET SW ACC DET M-7V M-5V SWD+3.3V DC-3V DC-1V...
  • Page 17 Parts Layout on P.W.Boards and Wiring Diagram(1/3) DVE-5207 MAIN P.W.Board ET102 (Component Side View) ASSY, RCA WIRE 5207 (COM OUT) SHIELD ET801 (Rch OUT) ASSY, WIRE PWR RV5210 SHIELD SHIELD RED (ACC) (Lch OUT) WHT/BRN (REMOTE IN) YEL (BATT) FUSE...
  • Page 18 Parts Layout on P.W.Boards and Wiring Diagram(2/3) DVE-5207 MAIN P.W.Board (Foil Side View) NOTE : #1 : For North American Model Only, $1 : For European Model Only, %1: For General Foreign / Region3 Model Only, &1 : For General Foreign / Region4 Model Only, #2 : For Chinese Model Only, Others : Common.
  • Page 19 Parts Layout on P.W.Boards and Wiring Diagram(3/3) DVE-5207 DV-MAIN P.W.Board DV-MAIN P.W.Board From MAIN P.W.Board (CB103) (Foil Side View) (Component Side View) FPC,LOAD P.W.Board To CB501 (Foil Side View) M101 MOTOR,M1N10FB95G (5V-250mA) LIMIT P.W.Board (Foil Side View) M103 MOTOR,MSDV020L01 (DC6.5V)
  • Page 20 R518 R517 R522 Q506 FMC3 R562 R561 R563 R564 R566 R565 RA502 R558 R558 R519 R508 R507 IC501 RA509 UPD70F361YGC 8EA A C518 0 022 JK501 HSJ1102 01 520 R528 Z502 R554 IC502 NFE61PT472C1H9L R529 TC7SET08FU Z501 R530 NFM21HC101U1H3 R553 R513 4 7k R506...
  • Page 21 L101 BLM18PG181SH1D L102 BLM18PG181SH1D CB101 52435 2491 Q101 FMC3 R105 1 2k IC102 C116 IC101 TC7SET08FU PCM1742KE/2K R101 390p C110 R113 R115 R116 R103 IC106 NJM4580V E105 R102 5 6k 2 2k 22/16 R123 C107 R106 NJM4580V C117 R153 E103 10/16 1 1k R151...
  • Page 22 Z801 NFE61PT472C1H9L R824 Q804 IC801 IC802 IMH11A BA00ASFP BA00ASFP IC805 TP824 PQ1CY1032ZP TP836 R826 L804 ET801 CB801 ASSY, WIRE PWR RV5210 SC25 04WS TP826 TP834 CB103 54104 4592 TP801 R860 IC809 BA00ASFP Q805 IMH11A TP802 IC806 IC803 PQ1CY1032ZP PQ015YZ01ZPH R813 R837 TP839 L805...
  • Page 23 CB401 BTFW14P 3SSTE1 C401 0 022 R401 R403 SW401 C403 SKRPACE010 ZD402 R402 C402 0 022 ZD401 SW402 SKRPACE010 Q401 DTC143XKA - 24 -...
  • Page 24 R551 R552 R553 C637 R685 R686 1000p R687 C601 R554 1000p R688 Z571 BK1005HM1210 R555 R689 Z572 BK1005HM121 R556 R630 Z573 BK1005HM121 R690 R557 R691 R629 R692 R558 R628 R559 C602 R627 Z574 BK1005HM121 R560 1000p R693 C636 1000p R694 Z575 BK1005HM121 R561...
  • Page 25 R612 CB504 52745 1090 IC511 TC7SH08FU R511 TP542 C731 TP543 C742 TP544 1000p C732 1000p CB502 C741 52435 2491 TP521 1000p TP522 C733 1000p TP523 C734 TP524 TP525 TP526 TP527 R732 R731 TP529 TP530 TP531 TP532 TP533 TP534 C735 TP535 C736 TP536 1000p...
  • Page 26 HD101 R832 ED21A51L Q832 CB801 UN9216J 52435 2891 TP801 TP802 Q831 Q833 TP803 UN9212J UN9216J TP804 TP805 R833 TP806 Z845 BK1005HS241 TP807 Z846 BK1005HS241 TP808 Z847 BK1005HS241 TP809 Z848 BK1005HS241 Z840 BK1005HS241 TP810 R849 Z841 BK1005HS241 TP811 R850 Z842 BK1005HS241 TP812 Z843 TP813...

  • Page 27: Terminal Voltage Of Ic/Tr

    DVE-5207 Terminal Voltage of IC/TR IC101 IC201 VOLTAGE NOTE VOLTAGE NOTE PULSE PULSE PULSE PULSE PULSE PULSE 3.28 5.06 5.06 PULSE PULSE IC202 VOLTAGE NOTE 2.52 3.26/0 /ZERO detect 2.15 3.26 5.06 PULSE PULSE PULSE PULSE PULSE IC102 VOLTAGE NOTE 3.25/0...
  • Page 28 DVE-5207 IC501 VOLTAGE NOTE VOLTAGE NOTE VOLTAGE NOTE #1, $1, %1 &1, #2 PULSE PULSE PULSE 0.35 2.55 0/PULSE BZ off/on 3.3/0 AMUTE OFF/ON PULSE PULSE 3.3/0 Reset OFF/ON 3.3/0 ON/OFF 2.53 4.94 PULSE 4.91 PULSE PULSE PULSE PULSE 3.3/0...
  • Page 29 DVE-5207 IC801 IC807 VOLTAGE NOTE VOLTAGE NOTE 3.22 PULSE 8.04 PULSE 5.06 PULSE 1.235 4.46 8.04 IC802 4.54 VOLTAGE NOTE 3.26 14.32 IC808 VOLTAGE NOTE 7.03 4.29 1.232 3.32 2.49 1.247 IC803 VOLTAGE NOTE 2.48 2.46 IC809 1.207 VOLTAGE NOTE 1.001...
  • Page 30 DVE-5207 IC855 Q104 VOLTAGE NOTE VOLTAGE NOTE PULSE/0 PULSE/0 Usually / AMUTE ON 3.56 -0.5/11.77 4.87 2.75 -0.5/11.77 Q401 VOLTAGE NOTE PULSE POWER ON PULSE 4.97 4.97 Q506 14.35 VOLTAGE NOTE 3.36 POWER ON 3.36 3.33 Q101 VOLTAGE NOTE 0.01 Q802 6.95...
  • Page 31 DVE-5207 Q805 Q861 VOLTAGE NOTE VOLTAGE NOTE 6.73 0.01 3.01 4.91 ACC ON 4.94 POWER ON 0.01 3.39 0.01 Q862 Q806 VOLTAGE NOTE VOLTAGE NOTE 0.01 8.04/0.01 4.94 BATT ON 0/8.03 4.97 Usually / 8.04/8.04 4.87 VMUTE2 ON 0/3.35 Q857...
  • Page 32 DVE-5207 (DVD Deck Mechanism) IC601 3.28 3.32 2.32 1.78 3.26 1.78 3.28 1.78 1.56 3.28 3.32 1.62 3.28 1.62 1.36 1.76 3.28 1.12 3.28 3.32 1.58 1.84 1.58 1.36 3.34 3.26 3.28 3.28 3.28 3.24 2.16 3.28 3.28 2.12 1.02 2.12...
  • Page 33 DVE-5207 IC511 IC512 3.21 3.22 3.21 3.22 3.22 3.22 3.22 3.22 IC711 IC712 3.26 IC713 IC721 IC725 3.22 3.22 3.26 3.26 3.26 1.88 3.28 3.27 3.24 - 34 -...
  • Page 34 DVE-5207 IC731 3.24 3.26 3.28 3.26 3.24 3.28 3.28 3.26 3.28 3.26 3.26 3.28 1.62 3.28 3.26 3.28 3.26 IC861 5.12 5.12 1.56 5.12 5.12 1.56 5.12 5.12 1.04 5.14 7.14 7.14 7.12 1.58 7.12 7.12 1.52 3.32 7.12 Q810...
  • Page 35 DVE-5207 Description of IC Terminal D70F3261YGC : IC501 Symbol Terminal Description AVref0 AVREF power supply input terminal. (connect to VDD) AVss GND potential supply terminal of A/D converter. No connect terminal. AVref1 AVREF power supply input terminal. (connect to VDD) No connect terminal.
  • Page 36 DVE-5207 Symbol Terminal Description DIAG 0BIT Detection terminal for turning off 0 bit MUTE. No connect terminal. DATA input terminal from B/E. DATA output terminal to B/E. CLK terminal for B/E. No connect terminal. CS output terminal for B/E. /RST RST output terminal for B/E.
  • Page 37 DVE-5207 MN35207UB : IC601 (DV37M150) Symbol Terminal Description MDQ9 I/O SDRAM data 9 terminal. MDQ5 I/O SDRAM data 5 terminal. GND terminal. MDQ10 I/O SDRAM data 10 terminal. MDQ4 I/O SDRAM data 4 terminal. VDD33 I/O power supply terminal. MDQ11 I/O SDRAM data 11 terminal.
  • Page 38 DVE-5207 Symbol Terminal Description VDD33 I/O power supply terminal. GND terminal. EXADT7 I/O External memory address data 7 terminal. EXADT3 I/O External memory address data 3 terminal. NEXOE External memory output enable terminal. FRAME detection input terminal. P14(PULL-DOWN) Pull-down connect terminal.
  • Page 39 DVE-5207 Symbol Terminal Description MONI1(NC) No connect terminal. MONI0(NC) AVDDD Analog power supply terminal. PLFIL1 Capacitor connect terminal for DRCVCO. AVSSD Analog GND terminal. VREFH7 ADC reference voltage terminal for DRC. (TOP) VREFM7 ADC reference voltage terminal for DRC. (MDL) VREFL7 ADC reference voltage terminal for DRC.
  • Page 40 DVE-5207 Symbol Terminal Description VREFH10 AD self bias reference terminal. (Hi side) AVSSH Analog GND terminal. VCOF(NC) No connect terminal. PWM1 Tracking drive output terminal. PWM0 Focus drive output terminal. DAC1OUT(NC) No connect terminal. AVDDF Power supply terminal for DAC.
  • Page 41 DVE-5207 Symbol Terminal Description MDQ24 I/O SDRAM data 24 terminal. MDQ23 I/O SDRAM data 23 terminal. MDQ25 I/O SDRAM data 25 terminal. MDQ22 I/O SDRAM data 22 terminal. VDD33 I/O power supply terminal. MDQ26 I/O SDRAM data 26 terminal. MDQ21 I/O SDRAM data 21 terminal.
  • Page 42 DVE-5207 Symbol Terminal Description NCSM SDRAM chip select terminal. MCKI Clock input terminal from SDRAM. GND terminal. Clock output terminal to SDRAM. NRAS SDRAM row address strobe terminal. NCAS SDRAM column address strobe terminal. VDD33 I/O power supply terminal. GND terminal.
  • Page 43 DVE-5207 Exploded View (Cabinet) ET801 ET102 $1,%1,&1,#2 $1,%1,&1,#2 IC102 JK501 $1,%1,&1,#2 $1,%1,&1,#2 SW401 SW402 NOTE:$1:For European Model Only, %1:For General Foreign/Region3 Model Only, &1:For General Foreign/Region4 Model Only, #2:For Chinese Model Only, Others:Common. $1,%1,&1,#2 - 44 -...
  • Page 44 Exploded View (DVD Deck Mechanism) DVE-5207 (DV37M150) - 45 -...
