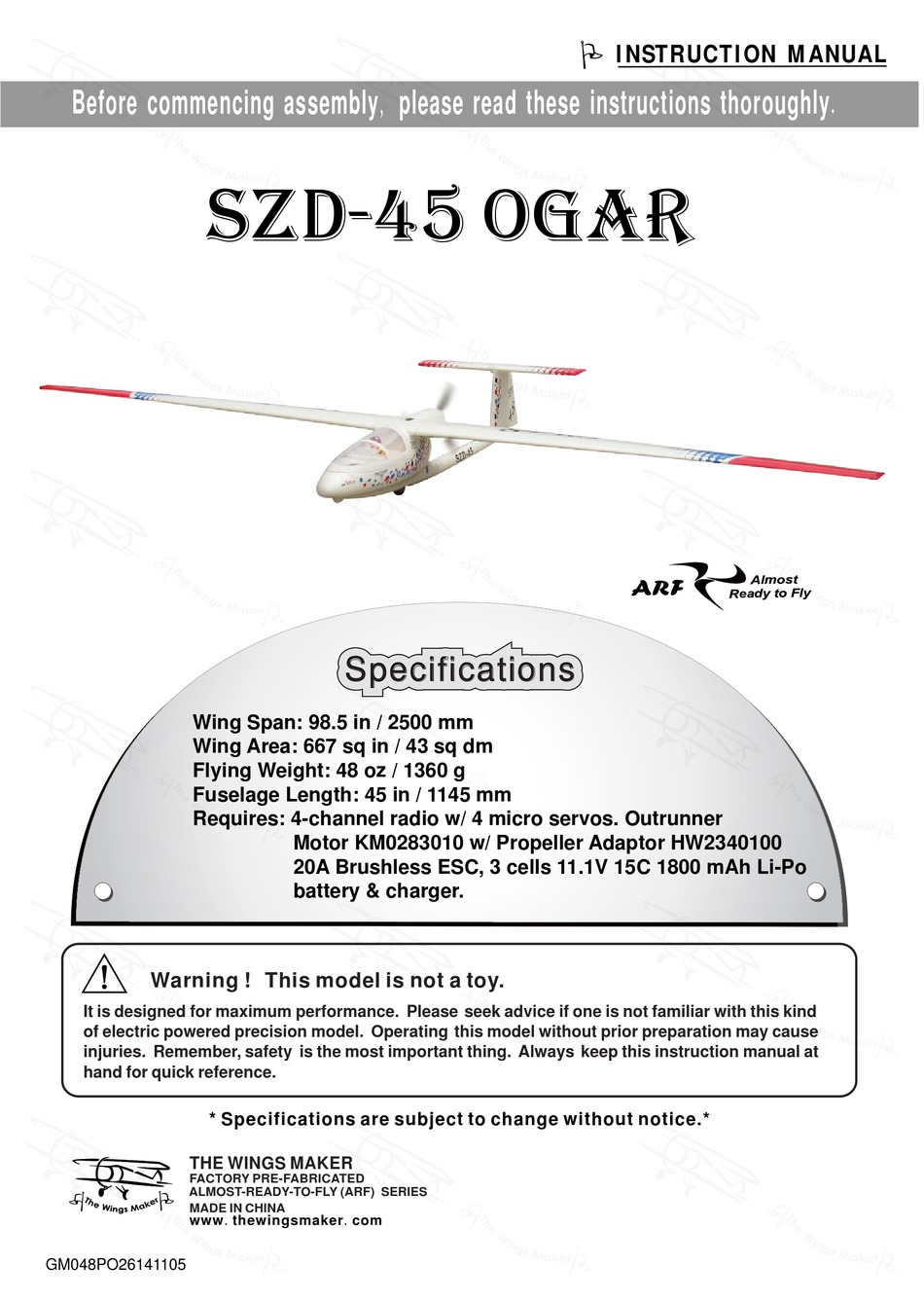

Before commencing assembly please read these instructions thoroughly
szd-45 ogar
Wing Span: 98.5 in / 2500 mm
Wing Area: 667 sq in / 43 sq dm
Flying Weight:
Fuselage Length: 45 in / 1145 mm
Requires:
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
* Specifications are subject to change without notice.*
THE WINGS MAKER
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
www thewingsmaker com
GM048PO26141105
,
Specifications
Specifications
48 oz / 1360 g
4-channel radio w/ 4 micro servos. Outrunner
Motor KM0283010 w/ Propeller Adaptor HW2340100
20A Brushless ESC, 3 cells 11.1V 15C 1800 mAh Li-Po
battery & charger.
.
.
I NSTRUCTI ON M ANUAL
.
Advertisement
Table of Contents
Related Manuals for Wings Maker SZD-45 OGAR
Summary of Contents for Wings Maker SZD-45 OGAR
- Page 1 I NSTRUCTI ON M ANUAL Before commencing assembly please read these instructions thoroughly szd-45 ogar Specifications Specifications Wing Span: 98.5 in / 2500 mm Wing Area: 667 sq in / 43 sq dm Flying Weight: 48 oz / 1360 g...
-
Page 2: Before You Begin
INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.9 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1.MAIN WING -- 1 pair 5.MAIN LANDING GEAR -- 1 pc. MICRO AILERON SERVO MOUNT PL5310020 -- 1 pair MAIN WHEEL Ø50mm PL3111500-- 1 pc. STRAPER PL4112106 -- 2 pcs PLASTIC COLLAR d4xD8x3mm -- 1 pc. CLEVIS PL4112105 -- 2 pcs COLLAR Ø3.1mm w/ Set Screw -- 1 set FUEL TUBE d2xD4x4mm -- 4 pcs SCREW PA3x10mm -- 2 pcs... -
Page 4: Aileron Servo
Aileron Servo PA1.7x8mm Screw Plywood Aileron Servo Lead 36.5x36.5x2 mm Fibre Tape 17x435 mm Bottom View Bottom Fibre Tape Bottom View Clevis PA1.7x8mm Pushrod Fuel Tube Ø1.4x60mm Straper d2xD4x4mm Fuel Tube d2xD4x4mm Horn TWM PL8210010 CLEVIS WRENCH Please choose either (02L&02R) or (03L&03R) or (04L&04R) that suits your servo. GM048PO26141105... -
Page 5: Stabilizer & Elevator
Stabilizer & Elevator PA1.7x8mm Screw Plywood 36.5x36.5x2 mm Fibre Tape Fibre Tape Bottom View Bottom 17x525 mm Bottom View Clevis PA1.7x8mm Pushrod Fuel Tube Ø1.4x33mm Straper d2xD4x4mm Fuel Tube d2xD4x4mm Horn TWM PL8210010 CLEVIS WRENCH Please choose either (02L&02R) or (03L&03R) or (04L&04R) that suits your servo. Temporary install the main wing, (Stabi l i zer) adjust leveling of the stabilizer... -
Page 6: Rudder Servo
Rudder Servo PA1.7x8mm Screw Plywood 36.5x36.5x2 mm Rudder Servo Lead Fibre Tape 17x185 mm Fibre Tape Clevis PA1.7x8mm Pushrod Fuel Tube Ø1.4x42mm Straper d2xD4x4mm Fuel Tube d2xD4x4mm Horn TWM PL8210010 CLEVIS WRENCH Please choose either (02L&02R) or (03L&03R) or (04L&04R) that suits your servo. Tail Landing Gear PA2x8 Screw... -
Page 7: Main Landing Gear
Main Landing Gear Wheel Ø50mm M3x3mm Set Screw d4xD8x3mm Plastic Collar 3.1mm Collar d3.2xD12mm PA3x10mm Screw Washer d3.2xD12mm Washer M3 Nylon Insert M3x30mm M3x30mm Socket Head Screw Lock Nut PA3x10mm Nylon Insert Lock Nut d4xD8x3mm Plastic Collar d3.2xD12mm Washer 3.1mm Collar w/ Set Screw Bottom View Outrunner Motor / Spinner... -
Page 8: Radio Equipment
Main Wing Aileron Servo Lead Wing Tube Ø8x900mm Hook Rubber Band Completed Radio Equipment Install and arrange the equipment as shown in the picture. Receiver Tie Sponge Lead ESC Connector Cable Tie Brushless ESC Battery Battery Tie Receiver Motor KP0011310 Solder Solder Canopy... - Page 9 The field stand can be used as a launching-pad if you are flying on paved runways. Place the on the stand, point it into the wind, check szd-45 ogar your controls and advance the throttle. When the gets enough szd-45 ogar...
-
Page 10: Control Throws
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. szd-45 ogar KM0283010 Outrunner Motor. is specially designed to be powered by # Make sure the air field is spacious, never fly the plane too close to people and never get too close to a running propeller. - Page 11 Pl8210010 Large Clevis • Small Clevis • Outrunner 28/ 32 Deluxe (25% higher power) KM02832R1 -Kv(rpm/V): 1010 -Operating Power: 225W -Operating Voltage: 6-15V -Operating Current: 15A -Peak Current: 20A(max.15 sec.) -Internal Resistance: 102 m ohms -Diameter: 28mm -Length: 32mm -Weight: 60g -Shaft Diameter: 3mm -Shaft Length: 15mm -Mounting Screw:...
- Page 12 THE WINGS MAKER GM048PO26141105...
