Arlotto AR2530 Series Quick Installation Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

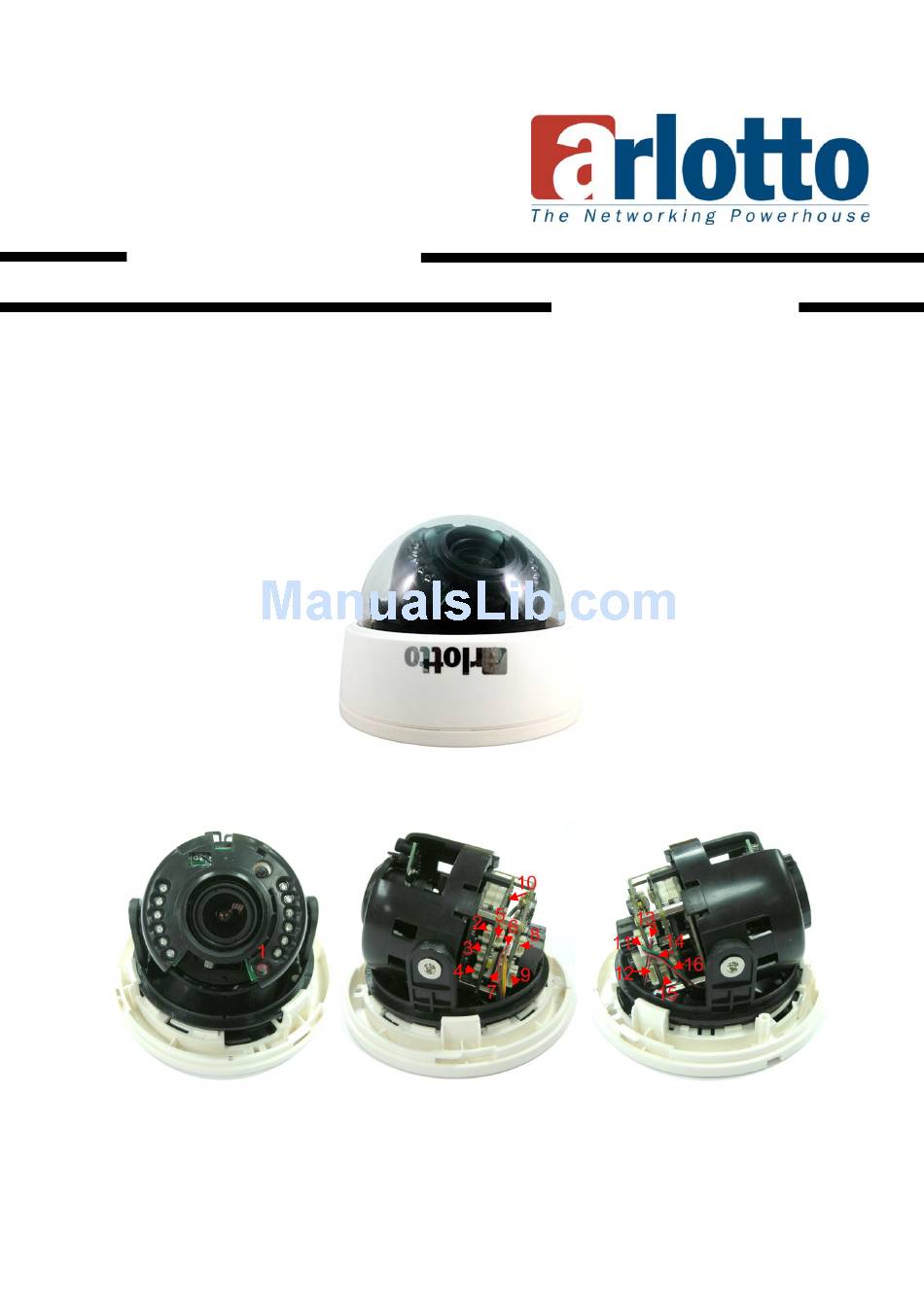

Quick Installation Guide

Packaging contains:
1. Network camera
2. Power adaptor
3. Screws
Camera description:
1. IR light sensor
6. Iris control
2. Audio in
3. Audio out
7. Ethernet
8. Not in use
AR2230/2530 Series
4. Terminal block
5. Drill template
4. Video out
5. Reset
9. Ethernet
10. Local storage
