Quick Installation Guide
Packaging contains:
1. Network camera
2. Bracket
3. Drill template
4. 2x Allen key
5. Power adaptor

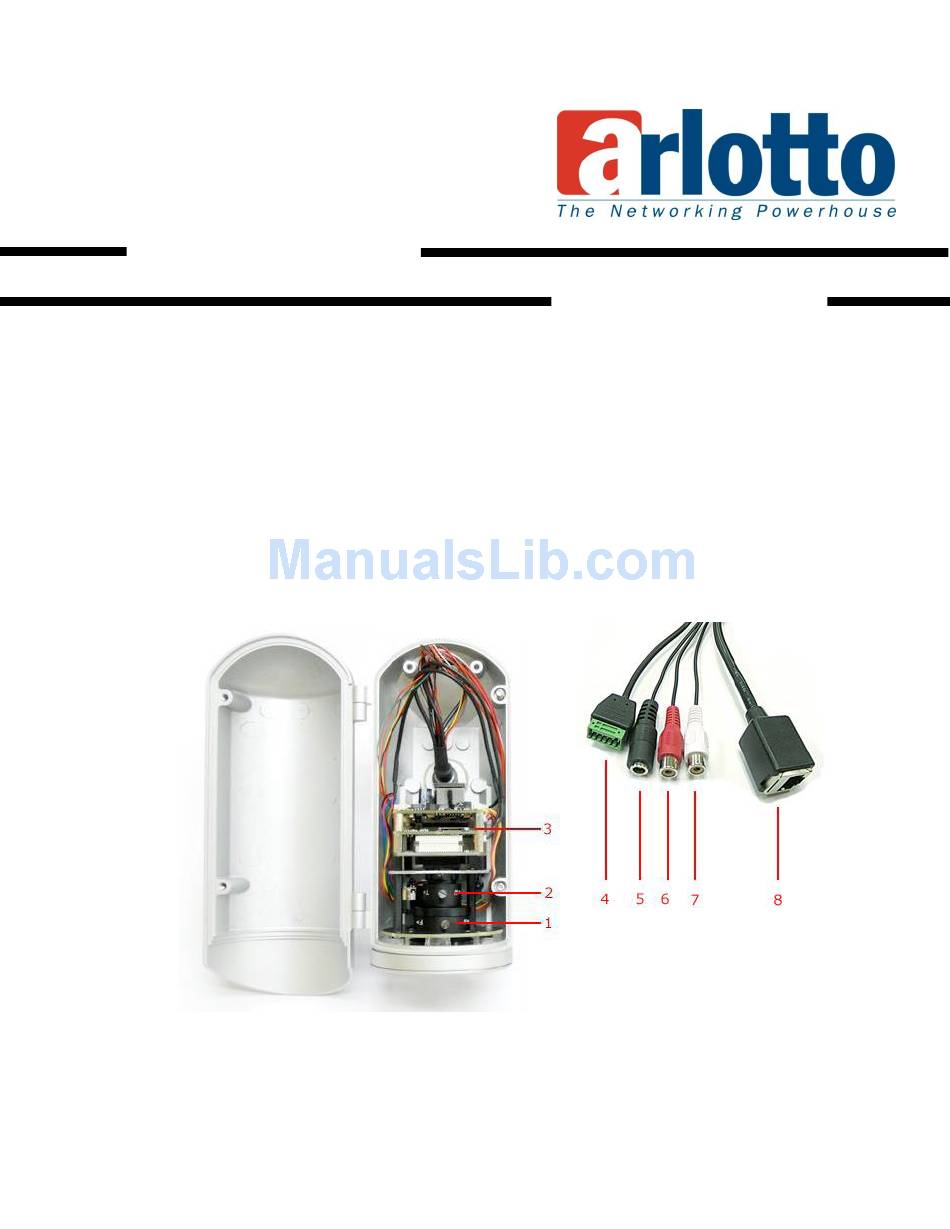

Camera description:
1. Focus ring
2. Zoom ring
3. Local storage slot
4. I/O block connection
AR4260/4560 Series
6. Screws and anchors
7. Quick installation guide
8. Warranty
9. Connection block
10. CD
5. DC power in
6. Audio in
7. Audio out
8. Ethernet / POE connection
www.arlotto.com
Advertisement
Table of Contents
Related Manuals for Arlotto AR4260 series
Summary of Contents for Arlotto AR4260 series
-
Page 1: Quick Installation Guide
9. Connection block 5. Power adaptor 10. CD Camera description: 1. Focus ring 5. DC power in 2. Zoom ring 6. Audio in 3. Local storage slot 7. Audio out 4. I/O block connection 8. Ethernet / POE connection www.arlotto.com... - Page 2 Locate the drill pattern in the right location to fix the camera and make the drills. Once the drills are done locate the camera and tightly screw the camera bracket to the wall. www.arlotto.com...
- Page 3 Open the camera cover by unscrewing both Allen bolts at the camera side to have access to the lens adjustment and the edge storage slot. Adjust the camera view direction by unscrewing the 2 bracket adjustment Allen screws www.arlotto.com...
- Page 4 If you would like to use adge storage before closing the camera cover insert a memory in the micro SD-card slot, then close the camera. Close the camera cover tightly by pressing both Allen bolts at the camera side. www.arlotto.com...
- Page 5 Once this is done accept the chances and the window would close. Now select “trusted sites” and click on “sites” and at the new window low area type the network camera default IP number “192.168.1.168”, and tick at “Require server verification for all sites in this zone” then add it and save all the changes. www.arlotto.com...
- Page 6 ActiveX. Please follow the indications. Once ActiveX is loaded the network camera login window would be shown, please type “admin” at user and “123456” at password. www.arlotto.com...
- Page 7 Submit the access data and you would log in the network camera control interface, now you can control and change all camera settings. If you would like to restore network camera factory settings please open the camera and power it on, press the reset button for 10 seconds. The camera would revert to original status. www.arlotto.com...
