Rinstrum D640 Manual

Remote display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
D640/D740
Remote Display
Manual
RI00-616-100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D640 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rinstrum D640

Summary of Contents for Rinstrum D640

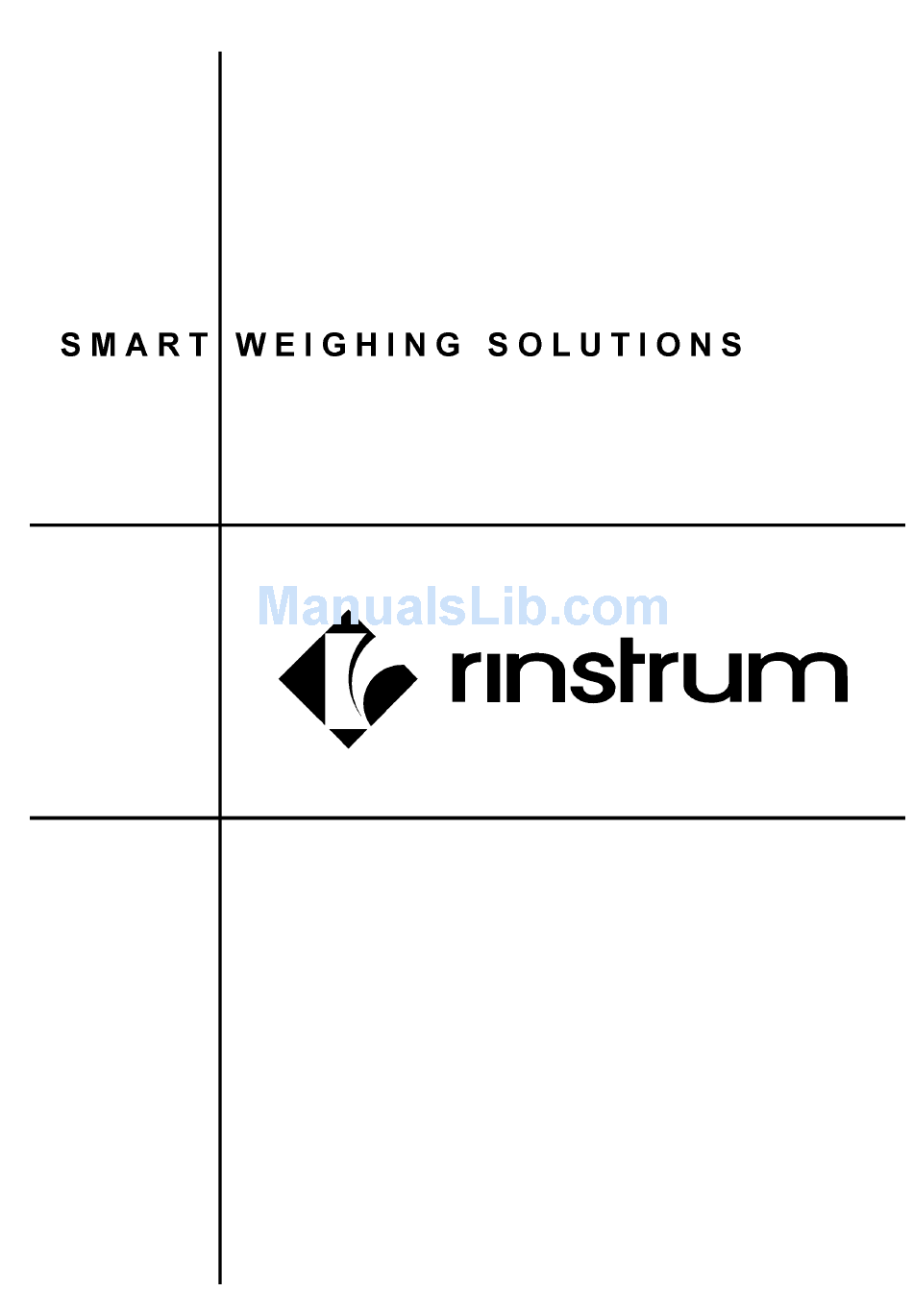

  • Page 1 D640/D740 Remote Display Manual RI00-616-100...
  • Page 2 Rinstrum Pty Ltd. Disclaimer Rinstrum Pty Ltd reserves the right to make changes to the products contained in this manual in order to improve design, performance or reliability. The information in this manual is believed to be accurate in all respects at the time of publication, but is subject to change without notice.

  • Page 3: Table Of Contents

    Reference Manual - Software Version 2.xx Table of Contents INTRODUCTION ........................2 1.1. Overview............................2 1.2. Document Scope .........................2 SPECIFICATIONS......................... 3 DISPLAY ..........................4 INSTALLATION........................5 4.1. Overview............................5 4.2. Installation Preparation ........................5 4.3. Dipswitches..........................6 4.4. Unit Addressing ...........................6 4.5. Protocol Grouping........................7 4.6.

  • Page 4: Introduction

    Reference Manual - Software Version 2.xx Introduction 1.1. Overview These remote displays are capable of displaying up to 7 alpha/numeric digits in Electro-mechanical (E/M) or up to 7 semi-alpha/numeric digits in LED format. An annunciator board is available with three status annunciations (centre of zero, net and motion).

  • Page 5: Specifications

    Reference Manual - Software Version 2.xx Specifications Display Display Up to seven (7) Electromechanical digits for displaying full alpha numeric characters • 125 (H) x 78 (W) mm, 4.9 (H) x 3.1 (W) inches • 35 segments per digit Up to seven (7) LED digits with decimal points for displaying numeric and semi-alpha characters •...

  • Page 6: Display

    Reference Manual - Software Version 2.xx Display Wall Mounting Clips Optical Link Connection Weight/Text Display Annunicators Units Sticker Figure 1 - Display Components Annunciator – where the annunciator board is fitted, there are three annunciator conditions, detailed in the following table. (Note: Some protocols do not support all annunciators) Symbol Name...

  • Page 7: Installation

    Reference Manual - Software Version 2.xx Installation 4.1. Overview This section covers the mounting and electrical connections for the remote displays. These units contain precision electronics and must not be subjected to shock, excessive vibration, or extremes of temperature, either before or after installation. The serial and power inputs of the displays are protected against electrical interference;...

  • Page 8: Dipswitches

    Reference Manual - Software Version 2.xx 4.3. Dipswitches The eight (8) dipswitches are located on the left hand side of the board near the serial connection, and are labelled 1-8. The table below lists the use of each dipswitch. DIPSWITCH Unit Address Address 0 - Broadcast Address 1...

  • Page 9: Protocol Grouping

    Protocol commonly used by Group indicators from: Ranger A GSE, HBM, PT, Rinstrum, Systec Ranger B Rinstrum Ranger C GSE, HBM, PT and Rinstrum Ranger D Rinstrum PCMODE Custom software R series register write GSE, Rinstrum Avery string #7 Avery L105...

  • Page 10: Decimal Point

    Reference Manual - Software Version 2.xx 4.7. Decimal Point 4.7.1. LED Unit The LED unit allows for the decimal point to be optionally displayed. Decimal Point Dipswitch 8 Comment Displayed A decimal point will be displayed (all digits are still available) if it is in the received data. Not Displayed The decimal point will not be displayed.

  • Page 11: Serial Connection

    Reference Manual - Software Version 2.xx 4.8. Serial Connection The serial connection receives the data to display. It is located on the left of the mask assembly board near the dipswitches as shown in Figure 2 - Internal Connections and Dipswitch. The connections are numbered left to right, 1 being furthest to the left near the dipswitches.

  • Page 12: Earthing Requirements For Cable Shields

    Reference Manual - Software Version 2.xx 4.8.2. Earthing Requirements for Cable Shields Cable shields should ideally be connected to earth at one end only for each of the communications options below. Pin 1 on the serial connection is internally connected to earth and provides a convenient location to terminate the serial cable shield.

  • Page 13: Rs485 Receive Only

    Reference Manual - Software Version 2.xx 4.8.6. RS485 Receive Only RS485 is the preferred serial connection and uses pins 4 and 5 as shown in Figure 7 - RS485 Connection. Earthing is discussed in Earthing Requirements for Cable Shields page 10. Figure 7 - RS485 Connection 4.8.7.

  • Page 14: Power Connection

    Reference Manual - Software Version 2.xx 4.9. Power Connection Warning: Both units contain Hazardous Voltages. Disconnect power before opening AC units operate from an AC power source between 110VAC and 240VAC. The power connection should be performed under local regulations. The earth MUST be connected for both safety and EMC regulation compliance.

  • Page 15: Mounting

    Reference Manual - Software Version 2.xx 4.10. Mounting 4.10.1. Clip Attachment Four stainless steel mounting clips (two top and two for the bottom) are used to mount the unit on a flat surface. The clips slot into the front channel in the top and bottom of the case, as shown in the figure.

  • Page 16: Weather Hood

    Reference Manual - Software Version 2.xx 4.11. Weather Hood These units are suitable to use in external applications and are designed to be weather resistant (note: on the underside of the extrusion are two breather holes and as such the area should not be subject to high pressure water). An optional weather hood is available to minimise effects of direct sunlight.

  • Page 17: Protocol Group 0

    Reference Manual - Software Version 2.xx Protocol Group 0 5.1. Overview The protocols listed in this section are within Protocol Group 0. As discussed in section 4.3, Dipswitches, page 6, dipswitches 4 and 5 set the Protocol Group. 5.2. Protocol 1 Character Number Description Function...

  • Page 18: Protocol 11

    Reference Manual - Software Version 2.xx 5.3. Protocol 2 Character Number Description Character Number Description Function Description Start of Transmission Character (ASCII 02H). Sign Represents the sign of the weight reading (space for positive, dash (-) for negative. Weight These seven characters are a string containing the current weight including the decimal point.

  • Page 19: Protocol 13

    Reference Manual - Software Version 2.xx 5.4. Protocol 3 Character Number Description Character Number Description Function Description Start of Transmission Character (ASCII 02H). Sign Represents the sign of the weight reading (space for positive, dash (-) for negative. Weight These seven characters are a string containing the current weight including the decimal point.

  • Page 20: Protocol 15

    Reference Manual - Software Version 2.xx 5.5. Protocol 4 Character Number Description Function Description Start of Transmission Character (ASCII 02H). Sign Represents the sign of the weight reading (space for positive, dash (-) for negative. Weight These seven characters are a string containing the current weight including the decimal point.

  • Page 21: Protocol 17

    Reference Manual - Software Version 2.xx 5.6. Protocol 5 Character Number Description Function Description Start of Transmission Character (ASCII 02H). Text These eight (8) characters will be displayed. They may be ASCII characters instead of numbers in which case the display will show text.

  • Page 22: Protocol 19

    Reference Manual - Software Version 2.xx 5.7. Protocol 6 Character Number Description Character Number Description Function Description Address A two character field specifying the address of the unit to display the message. Where 00 is the broadcast address. Note the actual address of a display is set by dipswitches 1-3 refer to 4.3 Dipswitches page 6.

  • Page 23: Protocol 21

    Reference Manual - Software Version 2.xx 5.8. Protocol 7 Character Number Description Character Number Description Character Number Description Function Description Start of Transmission Character (ASCII 02H). Weight The numbers to be displayed on the remote display. These seven characters can include a decimal point and a leading minus to indicate sign.
  • Page 24 Reference Manual - Software Version 2.xx 5.9. Protocol 8 Character Number Description Character Number Description Function Description Start of Transmission Character (ASCII 02H). Weight(0-7) The numbers to be displayed on the remote display. These eight characters can include a decimal point and a leading minus to indicate sign.
  • Page 25 Reference Manual - Software Version 2.xx 5.10. Protocol 9 Character Number Description Character Number Description Character Number Description Function Description Start of Transmission Character (ASCII 02H). Gross The numbers to be displayed on the remote display When S1 equals G. These eight characters can include a decimal point and a leading minus to indicate sign.
  • Page 26 Reference Manual - Software Version 2.xx 5.11. Protocol 10 Character Number Description Character Number Description Function Description HeaderA This header can be ST, UN or OL representing stable, unstable and out of scale range. Comma Comma (ASCII 2CH). HeaderB This second header can be GS - gross weight, NT - Net weight, TR - Tare and PT - Preset Tare.
  • Page 27 Reference Manual - Software Version 2.xx 5.12. Protocol 11 Character Number Description Function Description Header This header can be WT when in normal mode or OL to represent out of scale range. Comma Comma (ASCII 2CH). Sign The sign of the weight reading (plus (+) for positive, dash (-) for negative).
  • Page 28 Reference Manual - Software Version 2.xx 5.13. Protocol 12 Character Number Description Character Number Description Function Description Start of Transmission Character (ASCII 02H). SW A, B and C are each a collection of status bits. The relevant bits of the three characters are shown below in tabular form.
  • Page 29 Reference Manual - Software Version 2.xx 5.14. Protocol 13 Character Number Description Character Number Description Function Description Weight The numbers to be displayed on the remote display. These eight characters can include a decimal point and a leading minus to indicate sign. E.g. 300) would represent 300 units.
  • Page 30 Reference Manual - Software Version 2.xx 5.15. Protocol 14 Character Number Description Character Number Description Function Description Weight The numbers to be displayed on the remote display. These eight characters can include a decimal point and a leading minus to indicate sign. E.g. 300) would represent 300 units.
  • Page 31 Reference Manual - Software Version 2.xx 5.16. Protocol 15 Character Number Description Character Number Description Function Description Start of Transmission Character (ASCII 02H). Sign Represents the sign of the weight reading (space for positive, dash (-) for negative. The numbers to be displayed on the remote display. E.g. ( 300) would represent 300 units.
  • Page 32 Reference Manual - Software Version 2.xx 5.17. Protocol 16 Character Number Description Character Number Description Function Description Start of Transmission Character (ASCII 02H). Sign Represents the sign of the weight reading (space for positive, dash (-) for negative. The numbers to be displayed on the remote display. These six characters include a decimal.
  • Page 33 Reference Manual - Software Version 2.xx 5.18. Protocol 17 Character Number Description Function Description Start of Transmission Character (ASCII 02H). Address A single character field specifying the address of the unit to display the message. The address is fixed as 1 for this string so the unit must be set to address 1 to display this string.
  • Page 34 Reference Manual - Software Version 2.xx 5.19. Protocol 18 Character Number Description Function Description Start of Transmission Character (ASCII 02H). Address A single character field specifying the address of the unit to display the message. The address is fixed as 2 for this string so the unit must be set to address 2 to display this string.
  • Page 35 Reference Manual - Software Version 2.xx 5.20. Protocol 19 Character Number Description Character Number Description Function Description Sign Represents the sign of the weight reading (+ for positive, dash (-) for negative. Weight The numbers to be displayed on the remote display. E.g. ( 300) would represent 300 units.
  • Page 36 Reference Manual - Software Version 2.xx 5.21. Protocol 20 Character Number Description Function Description N = Net, M = Net + COZ, O = COZ Units Set to zero (0) if there is motion, otherwise unused by the display Weight The numbers to be displayed on the remote display.
  • Page 37 Reference Manual - Software Version 2.xx 5.22. Protocol 21 Character Number Description Function Description N = Net, M = Net + COZ, O = COZ Units Set to zero (0) if there is motion, otherwise unused by the display Weight The numbers to be displayed on the remote display.
  • Page 38 Reference Manual - Software Version 2.xx 5.23. Protocol 22 This protocol is used when no matching protocol can be found. This protocol will usually display the weight correctly for unknown protocols. Character Number Description Function Description Header Not required This symbol represents an unknown number of characters. - Sign The message is scanned for a minus sign (-).

  • Page 39: Protocol Group 1 - Text Only

    Reference Manual - Software Version 2.xx Protocol Group 1 – Text Only This protocol displays up to 8 printable characters terminated with a CR or ETX. Character Number Description Function Description Text Up to 8 printable characters will be considered as the message. The unit will display as much of this message, right justified, given the number of digits of the display.

  • Page 40: Error Messages

    Reference Manual - Software Version 2.xx Error Messages 7.1. Weighing Errors These messages show errors that have occurred during the normal weighing operation. Error Description --U---- Underweight - the weight is below the minimum allowable weight reading. --O---- Overweight - The weight is above the maximum allowable weight reading.
  • Page 41 Reference Manual - Software Version 2.xx Notes: 046D-600-150 Page 39...
  • Page 42 Notes...
