Summary of Contents for INSTEON 2843-422

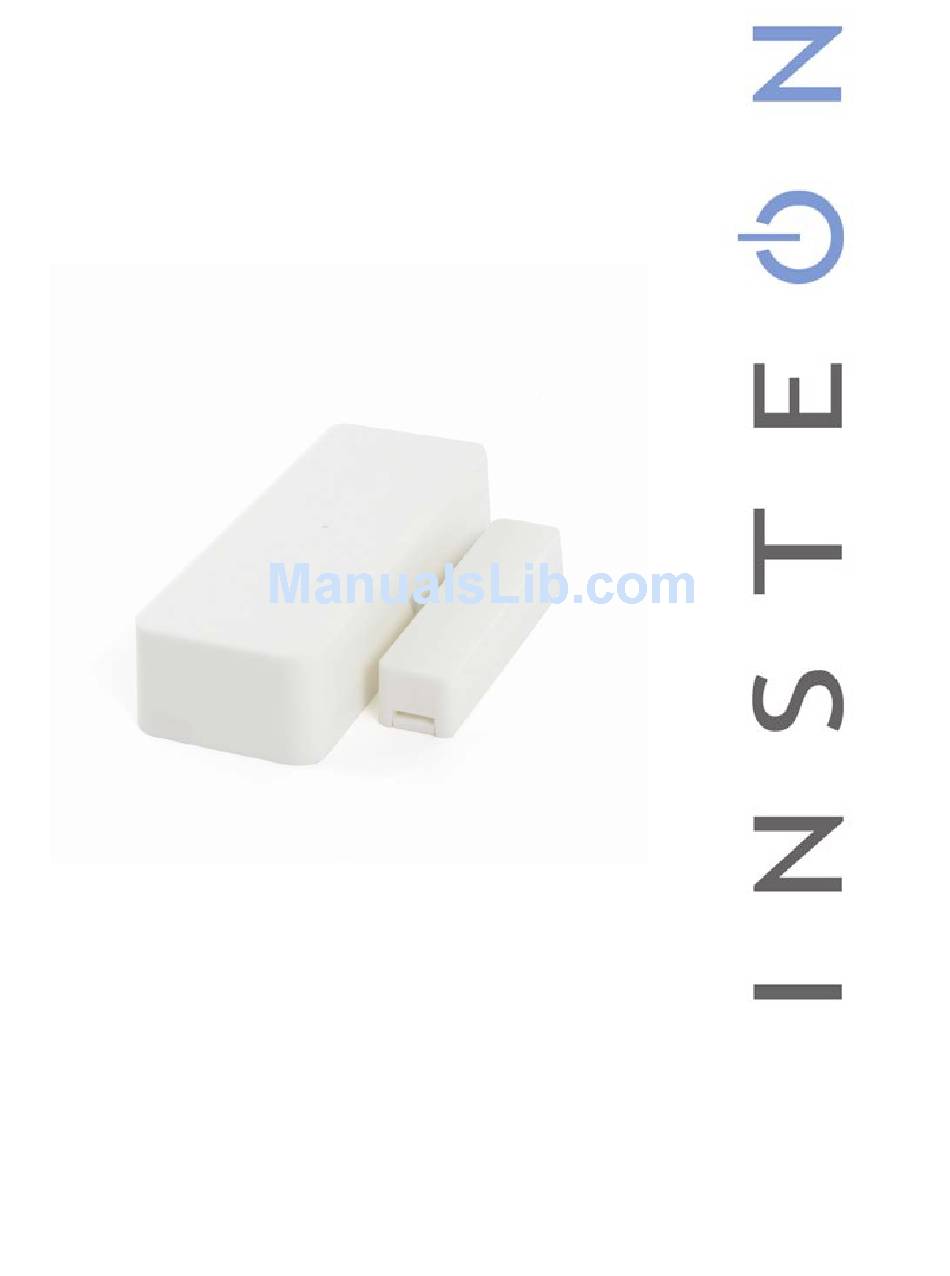

- Page 1 Open/Close Sensor Owner’s Manual 2843-222 (US) 2843-422 (EU) 2843-522 (AUS/NZ) Page 1 of 9 2843-222/2843-422/2843-522 - Rev: 3/4/2013 10:29 AM...
-
Page 2: Table Of Contents
Install Open/Close Sensor ............................3 Connecting an External Sensor to Open/Close Sensor ....................4 INSTEON Setup ................................4 INSTEON Controllers, Responders and Links ......................4 Default Mode ................................4 Make Open/Close Sensor a Controller ........................5 Make Open/Close Sensor a Controller of Multiple Responders .................. 5 Remove Open/Close Sensor as a Controller ...................... -
Page 3: Open/Close Sensor Hardware
Jumper When jumper is installed (default), Open/Close Sensor will send an INSTEON “on” command when it opens and an “off” command when it closes. When jumper is uninstalled (as in Multi-Scene Mode), Open/Close Sensor will activate scene 1 when it opens and activate scene 2 when it closes. -
Page 4: Connecting An External Sensor To Open/Close Sensor
INSTEON Controllers, Responders and Links Let’s define a few terms. • The INSTEON “transmitter” is called a controller • The INSTEON “receiver” is called a responder Note: Some devices are controllers only (e.g., open/close and motion sensors, handheld remotes), some are responders only (e.g., FanLinc), and some can be controllers and responders (e.g., switches and dimmers). -
Page 5: Make Open/Close Sensor A Controller
Make Open/Close Sensor a Controller Use Open/Close Sensor to control other INSTEON devices: If using default mode, ensure Open/Close Sensor jumper is installed. If using multi-scene mode, jumper should be uninstalled (or removed). NOTE: When changing jumper setting, battery will need to be removed and then reinstalled for new jumper setting to take effect. -
Page 6: Linking In Multi-Scene Mode
Devices in a scene can each have different settings. This provides for advanced lighting, audio, etc scene creation. Software is recommended for scene management. INSTEON scenes are very easy to set up – just link more than one responder to the same controller. Then, all INSTEON devices linked in the scene will respond as a group. -
Page 7: Power Restore
Open/Close Sensor will be closed when either internal reed switch or external sensor terminals show closed Power Restore Open/Close Sensor stores all of its settings, such as links to other INSTEON devices, with non-volatile memory. Because settings are saved in non-volatile memory, they will not be lost when the battery is removed. -
Page 8: Certification And Warranty
Increase the distance between this device and the receiver Connect the device to an AC outlet on a circuit different from the one that supplies power to the receiver Consult the dealer or an experienced radio/TV technician Page 8 of 9 2843-222/2843-422/2843-522 - Rev: 3/4/2013 10:29:07 AM... -
Page 9: Declaration Of Conformity
The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call INSTEON at 866-243-8022 with the Model # and Revision # of the device...
