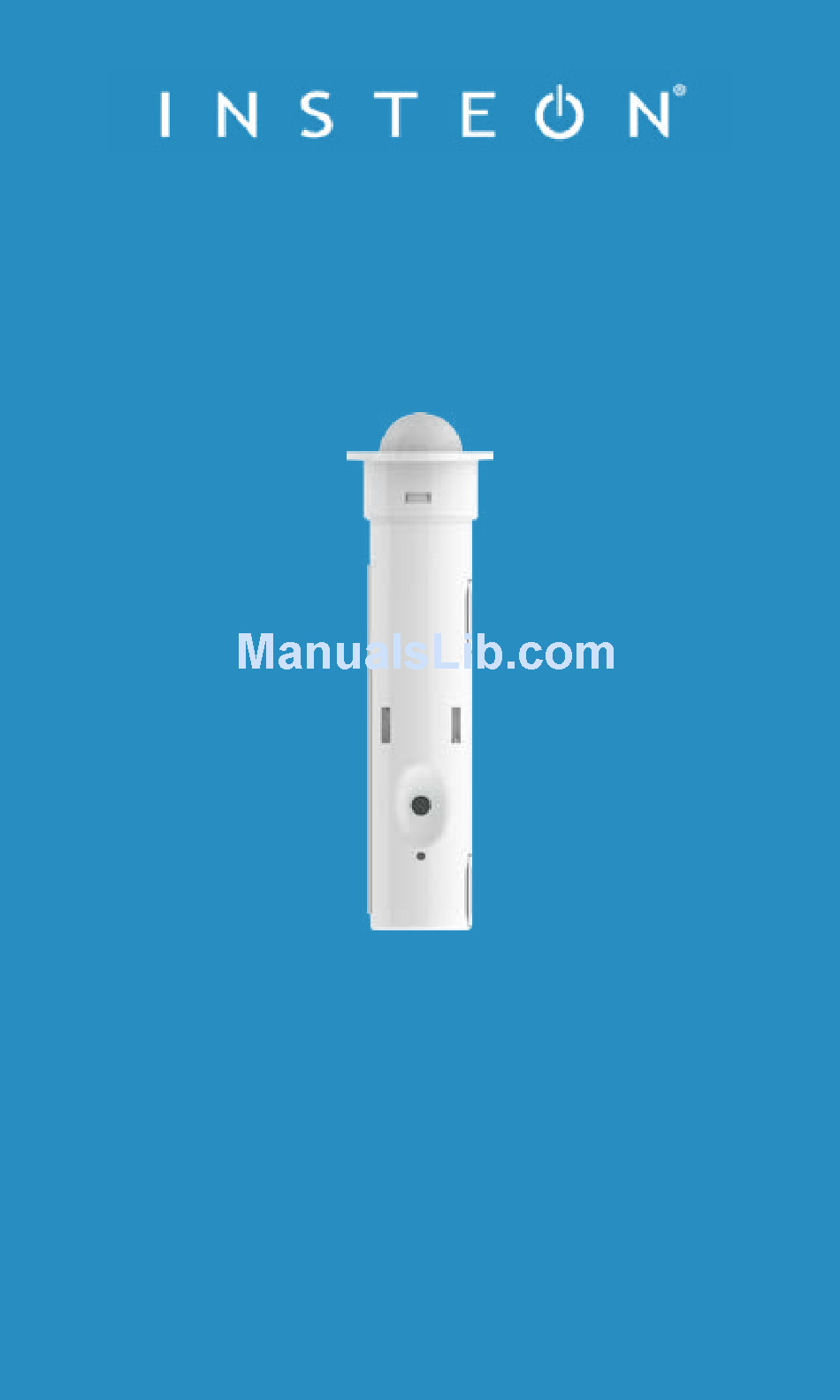

- Page 1 Hidden Door Sensor 2845-x22 Quick Start Guide...
- Page 2 Hidden Door Sensor Contact Plunger Button Status Battery Isolation Tab AAA Battery (Remove before first use) (Included) Spacer...
-
Page 3: Tools Needed For Installation
Tools Needed for Installation Power Drill 3/4-inch Auger Drill Bit (Recommended) Phillips Screwdriver We recommend using Irwin Tools #88812 Speedbor Bit... - Page 4 Test Your Location Test your desired location first. Hold the Door Sensor in its intended location and try linking to your Hub or responder. If linking is unsuccessful, try repositioning the sensor or adding a Range Extender. ® Door Sensor Model: 2845-222...
- Page 5 Linking to the Hub Follow the on-screen instructions to add your Door Sensor to the INSTEON Hub. If not using the Hub, refer to the instructions that came with your product.
- Page 6 When prompted, press and hold the Door Sensor’s set button until the device beeps.
-
Page 7: Installation
Installation Locate the hole for Door Sensor in either the hinge-side of the door frame or the hinge-side of the door itself. Also works with casement windows. Use Open/Close Sensor (2843-222) for sash windows. - Page 8 Place masking tape over any surfaces that may be marred by the drill chuck and drill a 4-inch deep, ¾-inch diameter hole. If drilling into the door, have an assistant hold the door steady.
- Page 9 Clean out any wood shavings with a vacuum and test fit the sensor. When ready, insert the sensor into the hole and fasten with the included screw. Installation of your Door Sensor is now complete.
- Page 10 Spacer If the gap between your door and door frame is too wide for Door Sensor, try using the included spacer. Slide the spacer over the Door Sensor to increase the thickness of the collar.
-
Page 11: Configure Alerts
Configure Alerts To receive email and text message alerts when a door or window is opened, switch on alerts from device settings within the INSTEON app. -
Page 12: Learn More
Learn More For the complete Owner’s Manual, video tutorials, product support and more, visit: insteon.com/support MANUAL Protected under U.S. and foreign patents (see www.insteon.com/patents) ©2013 INSTEON Rev 12.17.13...
