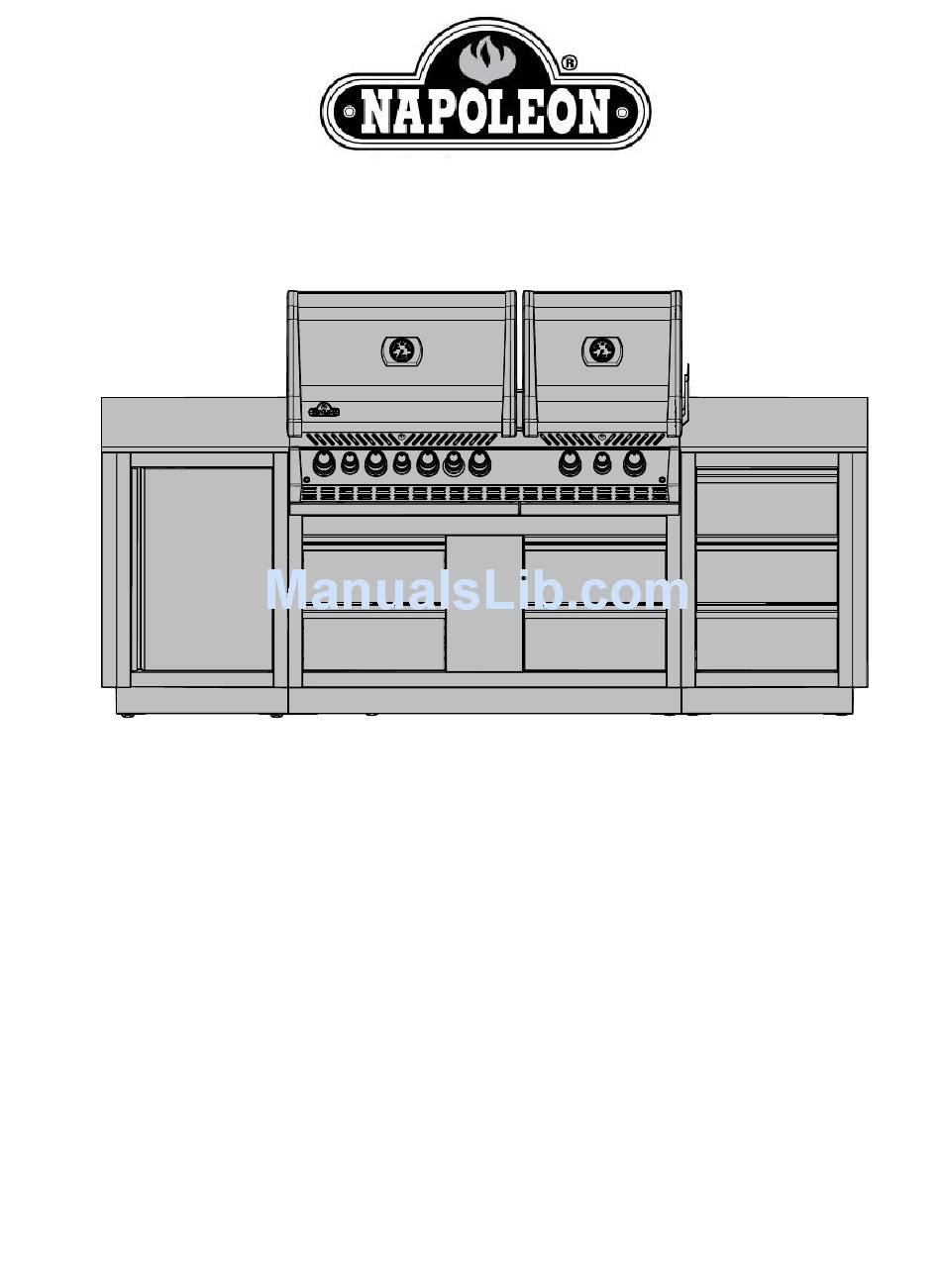

IM-UGC825 ASSEMBLY INSTRUCTIONS
INSTRUCTIONS D'ASSEMBLAGE IM-UGC825
Use this manual in conjunction with your main manual to properly assemble your built-in grill. Refer to the main manual
for operating, cleaning, and maintenance instructions. This grill is designed for non-combustible enclosures only, and must
be installed and serviced by a qualified installer to local codes.
Afin d'assembler correctement votre gril encastré, veuillez vous référer à ce manuel ainsi qu'au manuel principal. Consultez
ce dernier pour les instructions d'opération, de nettoyage et d'entretien. Ce gril convient uniquement à des cabinets
INCOMBUSTIBLES et il doit être installé et entretenu par un installateur qualifié en respectant les codes locaux.
Napoleon Group of Companies
214 Bayview Dr., Barrie, Ontario, Canada L4N 4Y8 Phone: 1-705-726-4278 Fax: (705)725-2564
www.napoleongrills.com
Customer service: 1-866-820-8686 or wecare@napoleonproducts.com
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
GARDER CE LIVRE POUR RÉFÉRENCES FUTURES.
N415-0320 APR 28.14
