Summary of Contents for Thule Canyon 859

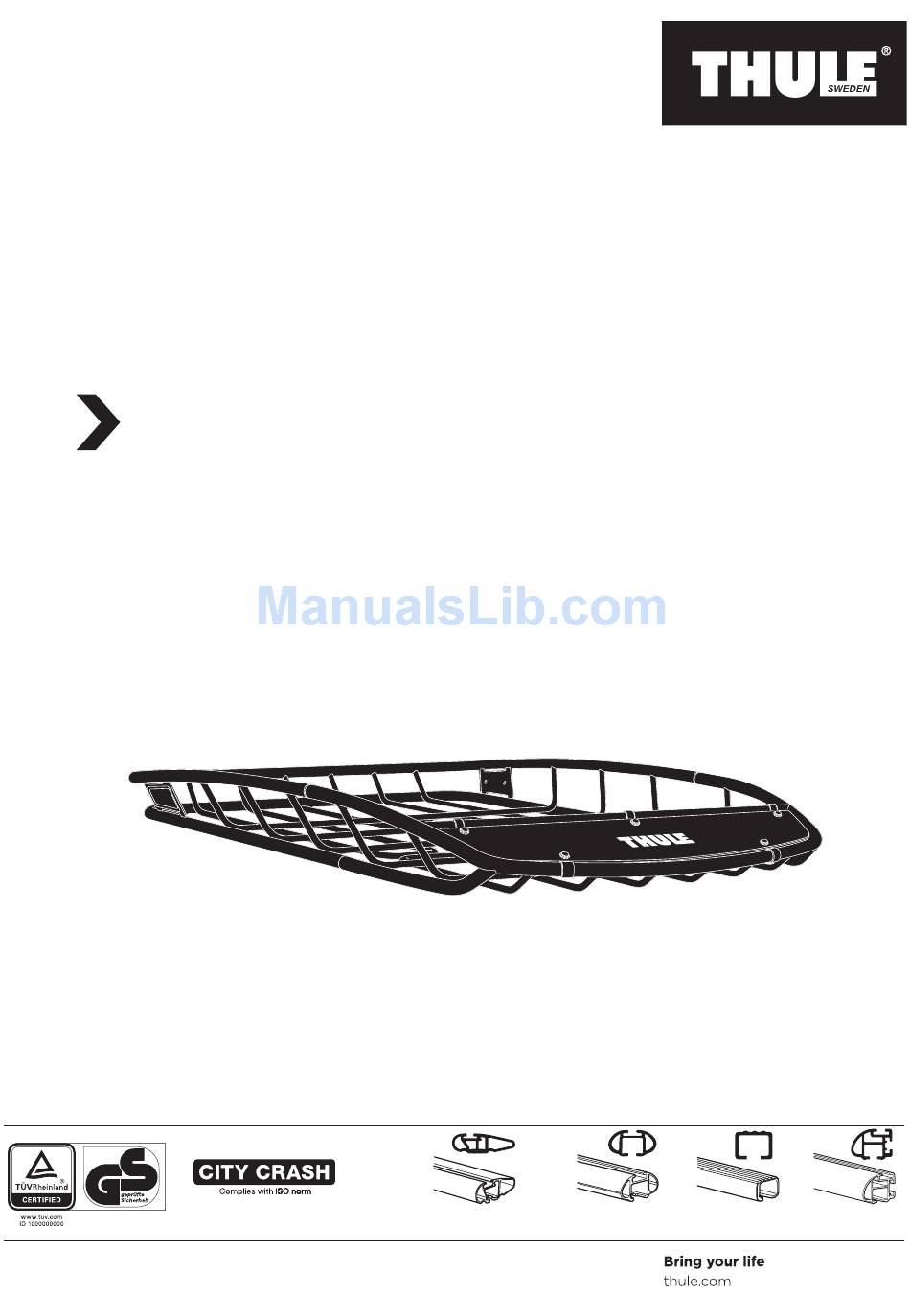

- Page 1 Thule Canyon 859 Instructions Carrier Basket Thule WingBar/ Thule AeroBar Thule ProBar Thule SquareBar Thule AeroBlade C.20150625 501-8017-04...
- Page 2 ___________________________ 80 km/h Instructions 130 km/h 40 km/h 130 km/h www.thule.com 13.2 kg Not ok 62 kg 68 kg 136 lbs load 68 kg Ø20 Ø12 Ø12 501-8017-04...
- Page 3 Not ok Ø12 3 Nm 501-8017-04...
- Page 4 Ø20 Not ok Min 510 mm Ø12 501-8017-04...
- Page 5 Ø12 Max 12 mm Max 22 mm 3 Nm 3 Nm Ø12 3 Nm Max 90 mm Min 15 mm 40 mm Max 25 mm Max 90 mm Min 25 mm 50 mm 3 Nm Max 35 mm Max 90 mm Min 35 mm 60 mm Max 45 mm...
- Page 6 501-8017-04...
- Page 7 501-8017-04...
- Page 8 Thule Strap 524 2 x 275 cm 2 x 600 cm Thule Strap 551 Thule One-Key System (x4) (x6) (x8) (x12) Thule Sweden AB, Box 69, 330 33 Hillerstorp, SWEDEN info@thule.com www.thule.com © Thule Group 2015. All rights reserved. 501-8017-03...
