USER GUIDE

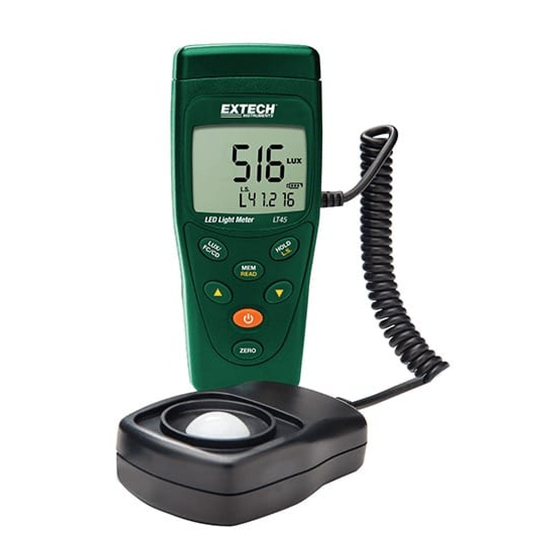

LED Light Meter
Model LT45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT45 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Extech Instruments LT45

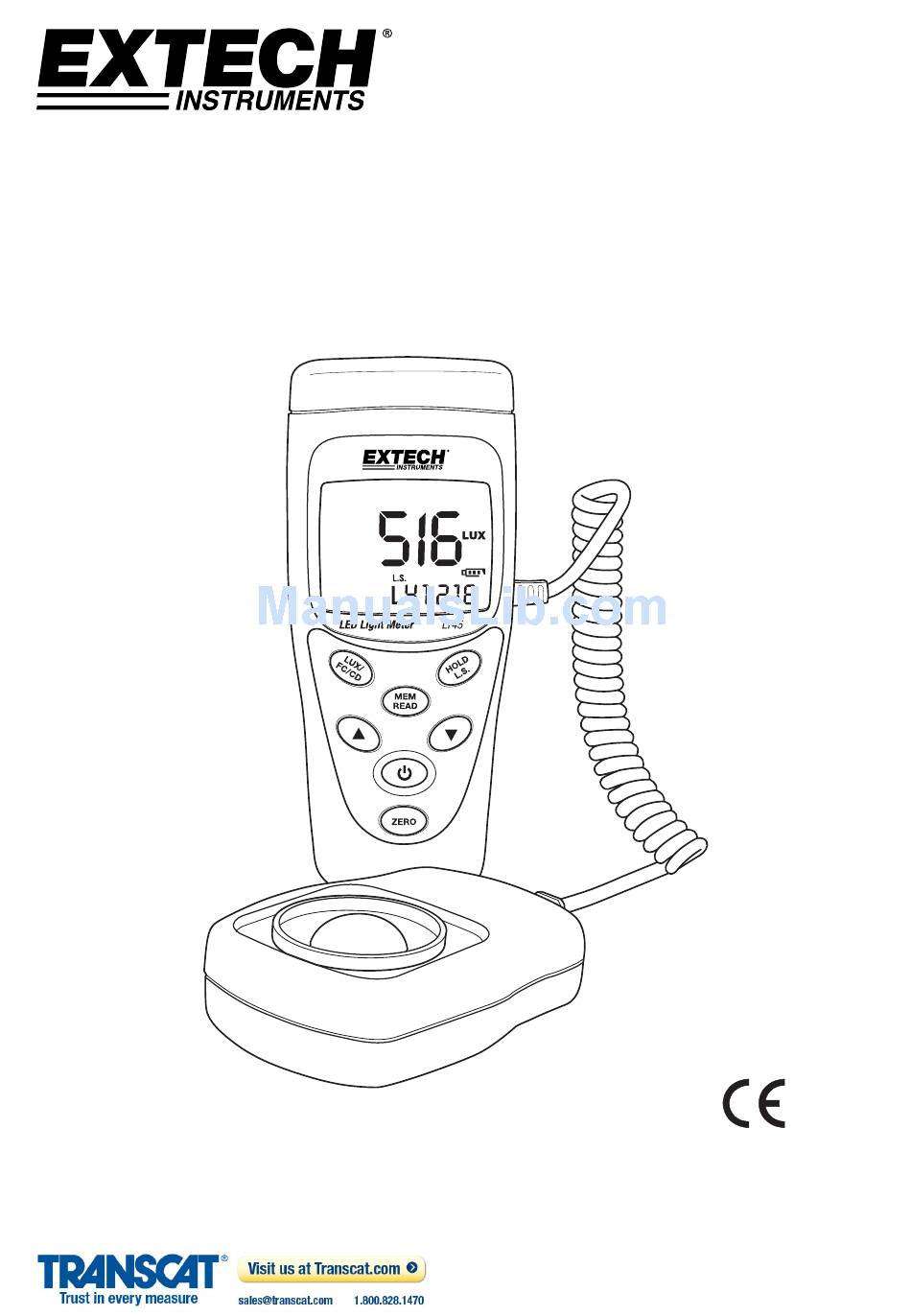

  • Page 1 USER GUIDE  LED Light Meter  Model LT45 ...
  • Page 2 Introduction  Congratulations on your purchase of the Extech LT45 LED Light Meter that measures light from LED  lamps  in  addition  to  fluorescent,  metal  halide,  high‐pressure  sodium  and  incandescent  sources.  The  LT45  is  capable  of  measuring  the  illumination  of  white,  red,  yellow,  green,  blue,  and  purple  LEDs up to 400,000 Lux (40,000 Fc).  The LT45 can also calculate luminous intensity (CD) using a distance‐to‐the‐light value programmed  by the user in meters or feet units.  The  LT45  can  store  up  to  99  readings  for  later  recall  and  includes  Overload  indication,  Battery  ...
  • Page 3: Meter Description

    Safety   Do not operate the meter in environments where the following are present: explosive gases (or materials), combustible gases (or materials), steam, or dust.  Please replace the battery immediately when the battery symbol  appears on the LCD.   Do not touch the meter’s circuit board for any reason as static electricity or contamination could damage the sensitive components.  For Indoor use only. This instrument was designed for pollution degree 2.   Operation Altitude: Up to 2000m (7000’). Meter Description  Display (LCD) Lux/Fc/CD unit select button MEM/READ button (for 99 reading memory)  Up arrow button and MAX/MIN/AVG button Power and Auto Power OFF control button Zero Calibration button Data Hold and Light source select button Down arrow button Coiled sensor connection cable 10. Photo detector Note: The battery and tripod mount are located  on the back of the meter  LT45-en-EU_V1.5 9/14...
  • Page 4: Operation

    4. Use the LUX/FC/CD button to select Lux or Foot candle units (CD, luminous intensity, is  explained in the dedicated section ‘Luminous Intensity’). When ‘OL’ is displayed, the  measurement exceeds the meter’s range capability.  5. Position the meter and light source so that the light strikes the sensor dome perpendicularly.  Although the meter compensates for an incidence angle, optimum performance is achieved  with a smaller incidence angle.  6. The meter’s LCD can show a value up to 3999 on the large digits and when more digits are  needed to represent the reading two additional (smaller) digits appear to the right of the  larger digits, e.g. 3999 .    LUX/FC/CD Units  Momentary presses of the LUX/FC/CD button toggles Lux and FC (foot‐candles) units. Press and  hold the button to enter the CD (luminous intensity) mode. Refer to ‘Luminous Intensity’ section  for further information.  Auto Power OFF   To save battery life the meter powers down automatically after approximately 5 minutes of  inactivity (no button presses).  Enable/Disable Auto Power Off  With the meter ON, press and hold the Power button until the APO clock symbol  switches  OFF (the Auto Power OFF utility is now disabled and the user must manually switch the meter  off). To re‐enable the Auto Power OFF utility, repeat this process. The Clock symbol will switch  ON when the Auto Power OFF utility is re‐enabled.  Zero Calibration  1. Ensure that the protective cover is attached to the light sensor.  2. Power the meter and the LCD should display ‘0’.  3. Momenarily press the “ZERO” button and the ADJ (adjusting) icon will switch ON indicating  that the zero adjustment (calibration) is working. When the calibration is finished, the ADJ  icon will switch OFF and the meter will return to the normal operating mode.  4. If the protective cap is not covering the sensor when the ZERO calibration is started the LCD  display will read “CAP”.  In this case, please cover the sensor with the cap and restart this  procedure.  LT45-en-EU_V1.5 9/14...
  • Page 5 To exit this mode, press and hold the   button for at least 2 seconds. The MAX/AVG/MIN icons  should all be switched OFF when the unit returns to the normal operating mode.  Memory Record/Read Mode  1. Momentarily press the Mem/Read button to store a reading. The LCD will display a small ‘M’  icon on the lower left‐hand area of the LCD along with the memory location number (1 to  99) representing the storage location for the recorded reading. Up to 99 readings can be  stored.  2. To review (read) the stored readings, press and hold the Mem/Read button until the ‘MEM’  icon appears at the top of the LCD. Now use the arrow buttons to scroll through the stored  readings. The small ‘M’ icon and the memory location counter (1 to 99) will be shown on the  lower left‐hand corner of the LCD while the main display digits show the stored reading for  the selected memory location.  3. To store an average (AVG) reading, first access the AVG mode (See MIN/MAX/AVG section of  this guide) and while an average reading is displaying (AVG icon switched ON), momentarily  press the Mem/Read button for one second. The LCD will display ‘AVG M’ and the memory  location number (1 to 99) indicating that an average reading has been stored in the  numbered memory location.  4. When a stored reading is an AVG value, the screen will display ‘AVG’ on the lower left‐hand  corner.  5. Momentarily press the Mem/Read button to exit the Memory mode and return to the  normal operating mode.  6. To clear all 99 memory locations: With the meter switched OFF, press and hold the  Mem/Read   and On/Off buttons simultaneously for two seconds. The meter will switch ON  and the screen will display “CLr” indicating that all of the 99 memory locations have been  erased.  Data Hold  Press the Hold button to freeze the displayed reading (the ‘HOLD’ icon will switch ON). Press the  button again to release the held reading (the ‘HOLD’ icon will switch OFF).    LT45-en-EU_V1.5 9/14...
  • Page 6 6. Momentarily press the LX/FC/CD button.  7. Remove the protective sensor cap and place the sensor perpendicular to the light at the programmed distance. 8. Read the Luminous Intensity calculation on the meter’s LCD display. 9. Press and hold the LX/FC/CD button to exit this mode.   Luminous Intensity = illumination (Lx) x distance (ft  or m  The programmable distance range is 0.01 ~ 30.47 m (0.01 ~ 99.99 ft.) Light Source (L.S.) Selection  There are 10 light source selections (L0 – L9) each having a unique calibration correction factor  (multiplier). See the Light Source Factors list below. The multipliers for locations L0 through L6  are fixed for the lighting types listed. Locations L7 through L9 are extra locations that the user  can customize (with a multiplier from 0.001 to 1.999). To change the light source (L.S.) selection:  1. Press and hold the Hold/LS button for 2 seconds. The light source code, at the bottom center of the LCD, will flash. Use the arrow buttons to select L0 through L9. The location’s multiplier (correction factor) will be shown to the right of the Lx value (L8…1000, for example). 2. To customize a location, select L7, L8 or L9 and, once selected, momentarily press the Hold/LS button to enter the multiplier programming mode. Now use the arrow keys to change the multiplier. Press and hold an arrow button to scroll faster. 3. When finished, press and hold the Hold/LS button for at least 1 second to confirm the edit and exit this mode.  Light Source Factors L0: Standard light source: 1.00. L1: LED white daylight: 0.99. L2: LED RED light: 0.516. L3: LED AMBER (YELLOW) light: 0.815. L4: LED GREEN light: 1.216. L5: LED BLUE light: 1.475. L6: LED PURPLE light: 1.148. L7~L9: Programmable User Custom Locations (preset to 1.00) LT45-en-EU_V1.5 9/14...
  • Page 7: Battery Replacement And Maintenance

    When  the  meter  is  to  be  stored  for  long  periods,  please  remove  the  battery  and  store  it  separately. Batteries can leak and cause damage to the meter’s components.   Avoid areas of high temperature and humidity when using this instrument.    Battery Replacement and Maintenance  Cleaning and storage  1. The white plastic sensor dome should be cleaned with a damp cloth when necessary. Use  only a mild soap if needed. Do not use solvents, abrasives, or harsh detergents to clean the  dome.  2. Store the meter in an area with moderate temperature and relative humidity.  Battery Replacement  When the battery power decreases to a critical level, the battery symbol will appear as empty on  the LCD. Replace the 9V battery located in the rear battery compartment. The battery  compartment slides easily downward for removal (in the direction of the printed arrow on the  rear of the meter). Ensure that the compartment cover is securely fastened before using the  meter.  Never dispose of used batteries or rechargeable batteries in household waste.  As consumers, users are legally required to take used batteries to appropriate  collection sites, the retail store where the batteries were purchased, or wherever  batteries are sold.  Disposal: Do not dispose of this instrument in household waste. The user is obligated to take  end‐of‐life devices to a designated collection point for the disposal of electrical and electronic  equipment.     Battery Safety Reminders  o Please dispose of batteries responsibly; observe local, state, national regulations.  o Never dispose of batteries in a fire; batteries may explode or leak.    LT45-en-EU_V1.5 9/14...
  • Page 8: Specifications

    30  ±2%  characteristics  ○ 60    ±6%  ○ 80    ±25%  LED Types   M eter measures white, red, yellow, green, blue, purple LED light  Operating conditions  Temperature: 5 to 40 C (41 to 104 F); Humidity: < 80% RH  Storage Temperature/RH  ‐10 to 60 C (14 to 140 F); Humidity: < 70% RH  Battery status indication  Battery symbol appears empty when battery voltage reaches critical level  Power supply 9V battery  Auto Power OFF    Meter powers down after 5 minutes of inactivity (can be defeated)  Dimensions   M eter: 38 x 55 x 130mm (1.5 x 2.2 x 5.1”)  Sensor: 25 x 44 x 80mm (9.8 x 2.2 x 3.1”)  Cable length: 1.5m (4.9 ft.)  Weight  Approx. 250g (8.8 oz.) with battery installed  LT45-en-EU_V1.5 9/14...
  • Page 9: Spectral Sensitivity

    Reception  100‐150  10‐15  Sick Room,  Warehouse  300‐500  30‐50  Display Stand  150‐200  15‐20  Waiting Room  500‐750  50‐75  Elevator  200‐750  20‐75  Medical Exam Room 750‐1,500  75‐150  Show Window,  750‐1,500  75‐150  Operating Room  Packing Table  1,500‐3,000  150‐300  Storefront, Show Window  5,000‐10,000 500‐1000  Eye Inspection  Spectral Sensitivity  Peak sensitivity wavelength: 550nm  LT45 WAVELENGTH (nm) Copyright © 2014 FLIR Systems, Inc.  All rights reserved including the right of reproduction in whole or in part in any form  www.extech.com  LT45-en-EU_V1.5 9/14...
