Summary of Contents for Swivl Robot

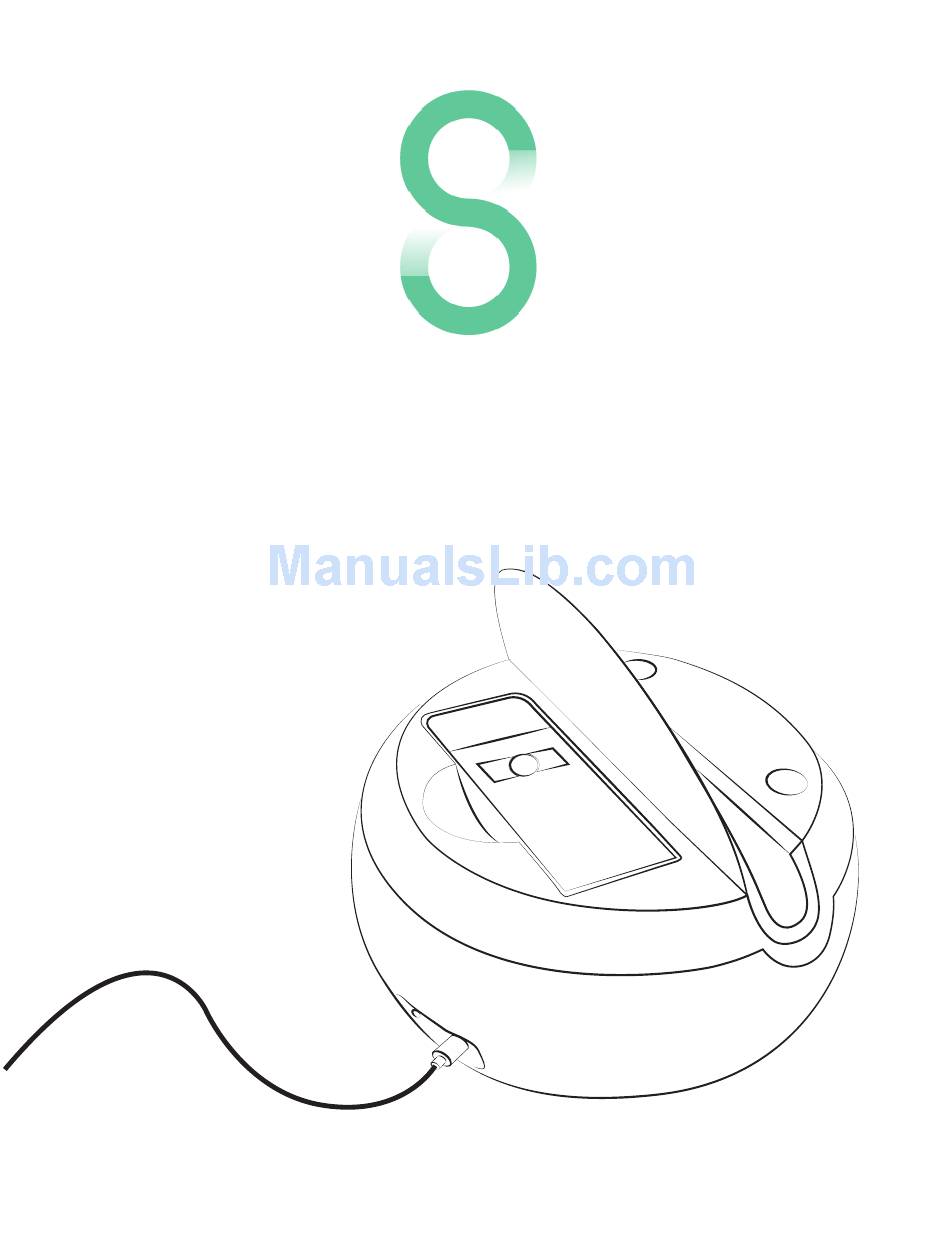

- Page 1 Swivl User Guide...
- Page 2 • Station-based learning: Record video instructions or mini-lessons for students to use in small groups or stations. Allow students to then use Swivl to capture their work within the small groups. Swivl User Guide...
-
Page 3: Key Features
Swivl Robot Contents: • Base • Power Adapter • Marker (located in the back flap of the base) • Lanyard Marker Lanyard • Shims (3) • Audio Cable Marker Shims Audio Cable Base Wall Charger Key Features Sync Power Back/... - Page 4 Plug the charging cable into bottom of the base and place marker in the base dock to charge. You should see an LED light when plugged in. The battery life of the base and the marker can be checked in the Swivl Capture App Settings. (Mobile device must be connected to the base via Bluetooth.) When the base is plugged in, the USB port in the back of the base can also be used to...
-
Page 5: Getting Started
Step 1: Press and hold both power and sync button simultaneously until power LED on base flashes. Then release. Step 2: Press and hold both power and check- mark button simultane- ously until top LED on marker flashes green. Then release. Pairing is complete. Swivl User Guide... - Page 6 Step 3: Connect your device. Open the Bluetooth menu on your device. Press and hold sync button on the Swivl base until Bluetooth status light flashes. Pair with Swivl. Green status light means connected. You will be prompted to open the Swivl Capture App. Then, insert your device, screen forward into the base.
- Page 7 To capture video, ensure that the base and marker are both powered on, the Swivl Capture App is open, and the audio cable has been connected. Choose ‘Capture’ within the Swivl Capture App, then tap the record button on the marker to begin recording.
- Page 8 Swivl Capture App When first opening the Swivl Capture App you will be prompted to create a Swivl Cloud account. This will allow you to manage all of your videos on any device with an Internet browser. Next, you will see a splash screen with two options: •...
- Page 9 Cloud and then delete them from the app to save space. • Auto upload: By enabling this function, your videos will automatically be uploaded to Swivl Cloud. This is recommended if you are using a wifi connection. • Lock auto-exposure: Locks exposure level at the beginning of recording for duration of video. It is recommended to disable this function.
- Page 10 It is important to note that videos are stored in the app and consume space on your mobile device until they are deleted. It is recommended that you upload videos to Swivl Cloud and then delete them from your device when possible. If you are sharing a device with others, be sure to delete your videos and logout of the app after use.
- Page 11 Projects can be shared in four different ways: • Email: Send a link to your project on Swivl Cloud directly via email. Users must have (or create) a Swivl Cloud account to view the video. This option allows you to see detailed viewing analytics.
- Page 12 When editing slides, you have the ability to change the timing of the slides so that they are aligned to the video content. The editing functions also include the ability to: • Upload new slide • Replace selected slide • Hide selected slide • Remove selected slide Swivl User Guide...
- Page 13 The Benefits of Swivl Cloud When projects are shared through Swivl Cloud, viewers are able to jump through the video by clicking on the slides. Viewers are also able to comment on the video. Because comments are time stamped with the appropriate...
- Page 14 1354 El Camino Real | San Carlos CA 94070 | (888) 837 6209 TM and © 2014 Swivl. All rights reserved. Swivl, the Swivl logo and all other company, product and service names or slogans are trademarks of Swivl. Patent pending.
