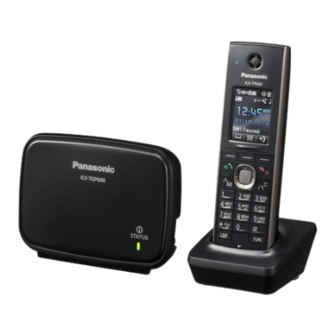

Panasonic KX-TGP600 Administrator's Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Cordless Telephone
  5. KX-TGP600
  6. Administrator's manual
Panasonic KX-TGP600 Administrator's Manual

Panasonic KX-TGP600 Administrator's Manual

Sip cordless phone
Hide thumbs Also See for KX-TGP600:

Advertisement

Quick Links

Download this manual See also: Administrator's Manual, User Manual
Supplement for Administrator Guide
SIP Cordless Phone
KX-TGP600
Model No.
Please use this supplement manual together
with the latest English Administrator Guide.
Document Version 2017-01

Advertisement

loading

Related Manuals for Panasonic KX-TGP600

Summary of Contents for Panasonic KX-TGP600

  • Page 1 Supplement for Administrator Guide SIP Cordless Phone KX-TGP600 Model No. Please use this supplement manual together with the latest English Administrator Guide. Document Version 2017-01...
  • Page 2 Example: {mac} → 0080f0c571eb If the URL contains {MODEL}, it will be replaced with {MODEL} the device’s model name. Example: {MODEL} → KX-TGP600 If the URL contains {fwver}, it will be replaced with the {fwver} device’s firmware version. Example: {fwver} → 01.000 Note •...

  • Page 3: Voip Settings [Line 1]-[Line 8]

    KX‐TGP600 Software File Version 01.129 or later 1. 4.5.4 VoIP Settings [Line 1]–[Line 8] Change the followings in " SRTP Mode " on page 136 (Before) • SRTP • RTP/SRTP Value Range Note • When RTP/SRTP is selected, operation is in RTP mode. (After) • SRTP •...
  • Page 4 BSD_GROUP_ENABLE_n Parameter Name Example BSD_GROUP_ENABLE_1, BSD_GROUP_ENABLE_2,…,BSD_GROUP_ENABLE_8 BOOLEAN Value Format Specifies whether to enable or disable the "Group" type for Xsi phonebooks. Description ・Y: Enable Value Range ・N: Disable Default Value BSD_GROUPCOM_ENABLE_n BSD_GROUPCOM_ENABLE_1, BSD_GROUPCOM_ENABLE_2, Parameter Name Example …,BSD_GROUPCOM_ENABLE_8 BOOLEAN Value Format Specifies whether to enable or disable the "Group Common"...
  • Page 5 • 1: Use only RTP for outgoing calls, and RTP or SRTP for incoming calls. • 2: Use RTP or SRTP for both outgoing and incoming calls. This value is valid only when the unit is connected to a Panasonic PBX. "SRTP_MIX_TRANSFER_ENABLE_n" must also be set to "Y".
  • Page 6 • 1: Phonebook • 2: Menu • 3: Outgoing Call Log • 4: Incoming Call Log Value Range • 5: Redial • 6: Page • 7: Intercom Call Change the followings in " IDLE_SOFT_KEY_C " on page 299 (Before) • 1: Phonebook •...
  • Page 7 KX‐TGP600 Software File Version 01.148 or later 1. 5.3.1 System Settings Add the following configuration parameter. FWD_DND_MENU_ENABLE Value Format BOOLEAN Specifies whether the "Fwd/DND" setting is displayed in MENU. Description ・Y: Displayed Value Range ・N: Not displayed Default Value BLOCK_ANONY_MENU_ENABLE Value Format BOOLEAN Description Specifies whether the "Block Anonymous" setting is displayed in MENU. ・Y: Displayed Value Range ・N: Not displayed...
  • Page 8 4. 5.3.13 XMPP (UC-ONE) Settings Add the following configuration parameter. UC_USERID_CASE_SENSITIVE Value Format BOOLEAN Specifies whether the authentication ID is case-sensitive when accessing the UC server. Description ・Y: Enable Value Range ・N: Disable Default Value 5. 5.3.21 NAT Settings Add the following configuration parameter. EXTERNAL_RTP_PORTx Value Format INTEGER...
  • Page 9 7. 5.3.23 SIPxTLS Settings Add the following configuration parameter. SIP_TLS_RANDOM_PORT Value Format BOOLEAN Specifies whether to assign a random port (ephemeral port) number or a static port number. 　Note Description 　　・All lines that use SIP-TLS are defined by this parameter. 　　・UDP/TCP ports are unaffected by this parameter.
  • Page 10 HS_IDLE_DISPLAY_TYPE INTEGER Value Format Description Specifies what is shown on the display in standby mode. ・0: Off ・1: Phone Number Value Range ・2: Phone Number and Handset Name ・3: Handset Name Default Value NOISE_REDUCTION_MODE_HSy NOISE_REDUCTION_MODE_HS1, NOISE_REDUCTION_MODE_HS2, …, Parameter Name Example NOISE_REDUCTION_MODE_HS8 Value Format INTEGER...

  • Page 11: Packet Interval

    KX‐TGP600 Software File Version 02.100 or later  1. 4.2.2 Network Status Change the followings in " Setting Mode " on page 77. (Before) • Disable • LLDP Value Range • Manual (After) • Disable • LLDP • CDP Value Range • LLDP/CDP • Manual 2. 4.3.2 Ethernet Port Settings Add the following WEB setting.
  • Page 12 4. 5.3.1 System Settings Add the following configuration parameter. AUTO_INPUT_KEY_TIME INTEGER Value Format Specifies the number of seconds after which the cursor automatically moves to the Description next position during character input. 0–3 Value Range [0: off] Default Value CALL_SETTINGS_MENU_ENABLE Value Format BOOLEAN Description...
  • Page 13 PRIVATE_HOLD_ENABLE BOOLEAN Value Format Specifies whether to enable or disable private hold. Description ・Y: Enable private hold Value Range ・N: Disable Default Value Private Hold Web User Interface Reference CONF_OWNER_OUT_ENABLE Value Format BOOLEAN Specifies whether to allow the remaining two parties in a three-party conference to Description continue the conversation if the conference originator leaves the conference call (Unattended Conference).
  • Page 14 DTMF_OUT_ENABLE BOOLEAN Value Format Specifies whether received outband DTMF signals are output audibly. Description ・Y: Enable audible outband DTMF Value Range ・N: Disable Default Value CANCEL_OPERATION_MODE Value Format INTEGER Specifies the operation of the [CANCEL] button when a line is in use. Description 0: Cancel the current operation Value Range...
  • Page 15 6. 5.3.10 TR-069 Settings Add the following configuration parameter. TR069_REGISTERING Value Format STRING Specifies the line status that TR-069 outputs while the line is being registered. Description Max.16 characters Value Range Error Default Value TR069_REGISTERED STRING Value Format Specifies the line status that TR-069 outputs when the line has been registered. Description Max.16 characters Value Range...
  • Page 16 8. 5.3.22 SIP Settings Add the following configuration parameter. SIP_183_TALK_ENABLE Value Format BOOLEAN Specifies whether the unit's sate is "Talking" or "Calling" when it receives a SIP 183 Description message. ・Y: Talking Value Range ・N: Calling Default Value 9. 5.3.27 SRTP Settings Add the following configuration parameter.
  • Page 17 SOFT_KEY_LABELx STRING Value Format x=1-3 Specifies the text of the soft keys displayed on the screen for quick dialing. Description Note This setting is available only when "DISCLOSE_FUNCTION_ENABLE" is set to "Y". Max. 5 characters Value Range SOFT_KEY_LABEL1: 1 SOFT_KEY_LABEL2: 2 Default Value SOFT_KEY_LABEL3: 3 SOFT_KEY_QUICK_DIALx...

  • Page 18: Logging Settings

    13. 5.3.33 Logging Settings Add the following configuration parameter. SYSLOG_OUT_START Value Format BOOLEAN Description Specifies whether to enable or disable exporting of the Application Log ・Y: Enable export to syslog Value Range ・N: Disable Default Value...
  • Page 19 Value Range • 2: Use RTP or SRTP for both outgoing and incoming calls. 　　　This value is valid only when the unit is connected to a Panasonic PBX. "SRTP_MIX_TRANSFER_ENABLE_n" mustalso be set to "Y". • 3: If you are using "RTP/AVP" and append "a=crypto", and the response message includes "a=crypto", the conversation will be established...
  • Page 20 Voice Message Notification - LED Selects whether the LED is used to indicate a new voice message. Description ・Yes Value Range ・No Default Value NOTIFY_VOICEMAIL_LED_ENABLE_HSy Configuration File Reference Voice Message Notification - Alarm Selects whether an alarm sound is used to indicate a new voice message. Description ・Yes Value Range...
  • Page 21 NOTIFY_MISSEDCALL_LED_ENABLE_HSy NOTIFY_MISSEDCALL_LED_ENABLE_HS1,NOTIFY_MISSEDCALL_LED_ENABLE_HS2, Parameter Name Example …,NOTIFY_MISSEDCALL_LED_ENABLE_HS8 BOOLEAN Value Format Specifies whether the LED is used to indicate a missed call Description ・Y: Enable LED indication for a missed call. Value Range ・N: Disable Default Value Missed Call Notification - LED Web User Interface Reference NOTIFY_VOICEMAIL_LED_ENABLE_HSy NOTIFY_VOICEMAIL_LED_ENABLE_HS1,NOTIFY_VOICEMAIL_LED_ENABLE_HS2,...

  • Page 22: Telephone Settings

    Value Range • 2: Use RTP or SRTP for both outgoing and incoming calls. 　　　This value is valid only when the unit is connected to a Panasonic PBX. "SRTP_MIX_TRANSFER_ENABLE_n" mustalso be set to "Y". • 3: If you are using "RTP/AVP" and append "a=crypto", and the response message includes "a=crypto", the conversation will be established...
  • Page 23 SPEAKER_VOLUME_LEVEL INTEGER Value Format Specifies the speaker receiver's volume level. Description Value Range Default Value...

  • Page 24: Control Port

    KX‐TGP600 Software File Version 03.100 or later  1. 4.3.10 TWAMP Settings Add the TWAMP Settings to the [Network] tab of Web User Interface Programming. Add the following web settings to the TWAMP settings. Enable TWAMP Description Selects whether to enable the TWAMP server function. ・Yes Value Range ・No Default Value Configuration File Reference...
  • Page 25 2. 5.3.1 System Settings Add the following configuration parameter. NOISE_SUPPRESSOR_ENABLE Value Format BOOLEAN Description Specifies whether to enable the noise suppressor. Y: Enable the noise suppressor Value Range N: Disable Default Value 3. 5.3.34 TWAMP Settings Add the TWAMP Settings to Configuration File Programming. Add the following configuration parameter to the TWAMP settings.
  • Page 26 TWAMP_REFLECTOR_WAIT_TIME INTEGER Value Format Specifies the time, in seconds, for the TWAMP reflector to wait for incoming packets for Description maintaining the session. 1-65535 Value Range Default Value Web User Interface Reference Wait Time for Reflector TWAMP_PADDING_ZERO BOOLEAN Value Format Description Specifies the packet padding for the TWAMP test session.
  • Page 27 KX‐TGP600 Software File Version 04.000 or later  1. 5.3.1 System Settings Add the following configuration parameters. CODEC_VAD_CNG_ENABLE BOOLEAN Value Format Specifies whether to enable the VAD and CNG functions. Description (VAD :Voice Activity Detector, CNG: Comfort Noise Generator) Y: Enable the VAD and CNG functions Value Range N: Disable Default Value ERROR_AUTO_REBOOT_TIME...
  • Page 28 4. 5.3.30 Telephone Settings Add the following configuration parameter. RINGER_VOLUME_LEVEL Value Format INTEGER Specifies the value of the ringer volume. Description Value Range Default Value RINGER_VOL_OPERATION_ENABLE BOOLEAN Value Format Specifies whether to enable ringer volume adjustment. Description Y: Enable ringer volume adjustment Value Range N: Disable Default Value...
  • Page 29 TALKING_SOFT_KEY_C INTEGER Value Format Specifies the display icon of soft key C during a call. Description 0: Original 1: Mute 2: Menu 3: Blind transfer 4: Redial 5: Conference 6: Flash/Recall 7: Incoming Log Value Range 8: Outgoing Log 9: Phonebook 10: Call Park 11: Intercom 12: Pause...
