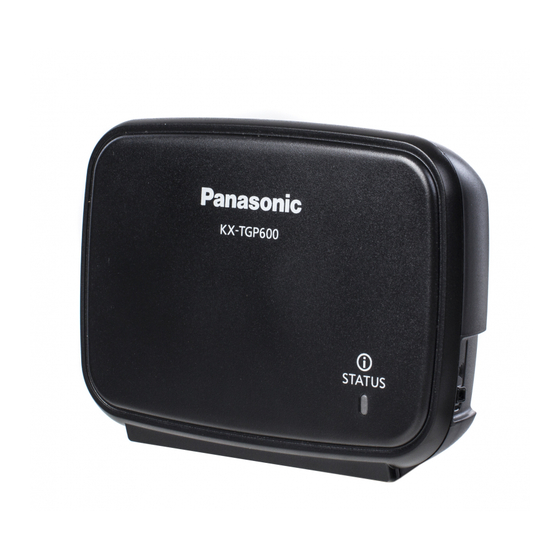

Panasonic KX-TGP600 Manual

Base unit

Hide thumbs Also See for KX-TGP600:

Download this manual

Set-Up

Attach the Network Cable included with the Base Unit and plug one end into the network port on the

Base Unit. Plug the other end of the cable into the Internet modem, router, switch, hub or RJ-45 network wall jack.

Firmly plug the Power Adapter (AC Adapter) into the base unit. You can utilize the hook on the base to

secure it firmly and to prevent it from being accidentally dislodged. The power supply should be connected to

an electrical outlet, power bar, surge protector or UPS.

Once the base unit is connected it will go through a regular connection process which may take up to 10 minutes.

Once you see the solid

If the status light remains

modem instead of any secondary devices (router, switch, hub etc.).

Please call Comwave Business Support if the status light does not turn solid green.

green

status light, the base is ready and you can proceed in powering up the phones.

red

amber

after 10 minutes, try plugging the base unit directly into the

comwave business care

Panasonic TGP600

Base Unit

| businesscare@comwave.net | 1-866-500-4107

1 of 2

Page 1 Panasonic TGP600 Base Unit Set-Up Attach the Network Cable included with the Base Unit and plug one end into the network port on the Base Unit. Plug the other end of the cable into the Internet modem, router, switch, hub or RJ-45 network wall jack.
Page 2: Important Information
Important Information Environment Keep the phone and base away from heating appliances and devices that generate electrical noise such as fluorescent lamps and motors. These noise sources can interfere with performance. Do not place the phone or base in rooms where the temperature is less than 0 °C (32 °F) or greater than 40 °C (104 °F). The range of operation depends on the topography of your office, weather, or usage conditions as signals are transmitted between the base unit and the handset/desk phone by radio waves.
