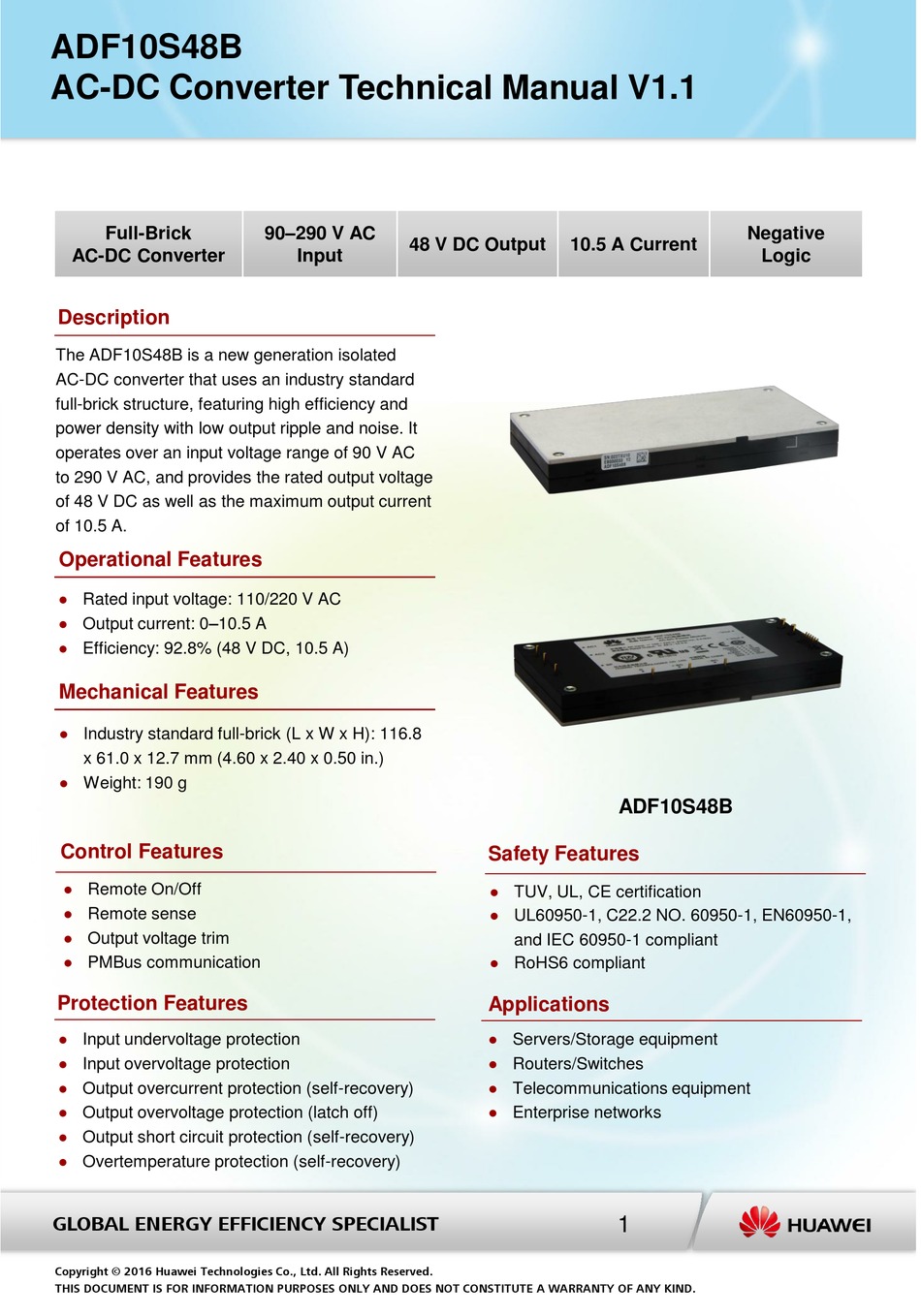

ADF10S48B
AC-DC Converter Technical Manual V1.1
Full-Brick
AC-DC Converter
Description
The ADF10S48B is a new generation isolated
AC-DC converter that uses an industry standard
full-brick structure, featuring high efficiency and
power density with low output ripple and noise. It
operates over an input voltage range of 90 V AC
to 290 V AC, and provides the rated output voltage
of 48 V DC as well as the maximum output current
of 10.5 A.
Operational Features
Rated input voltage: 110/220 V AC
Output current: 0–10.5 A
Efficiency: 92.8% (48 V DC, 10.5 A)
Mechanical Features
Industry standard full-brick (L x W x H): 116.8
x 61.0 x 12.7 mm (4.60 x 2.40 x 0.50 in.)
Weight:
190 g
Control Features
Remote On/Off
Remote sense
Output voltage trim
PMBus communication
Protection Features
Input undervoltage protection
Input overvoltage protection
Output overcurrent protection (self-recovery)
Output overvoltage protection (latch off)
Output short circuit protection (self-recovery)
Overtemperature protection (self-recovery)
GLOBAL ENERGY EFFICIENCY SPECIALIST
Copyright © 2016 Huawei Technologies Co., Ltd. All Rights Reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSES ONLY AND DOES NOT CONSTITUTE A WARRANTY OF ANY KIND.
90–290 V AC
48 V DC Output
Input
10.5 A Current
ADF10S48B
Safety Features
TUV, UL, CE certification
UL60950-1, C22.2 NO. 60950-1, EN60950-1,
and IEC 60950-1 compliant
RoHS6 compliant
Applications
Servers/Storage equipment
Routers/Switches
Telecommunications equipment
Enterprise networks
1
Negative
Logic
