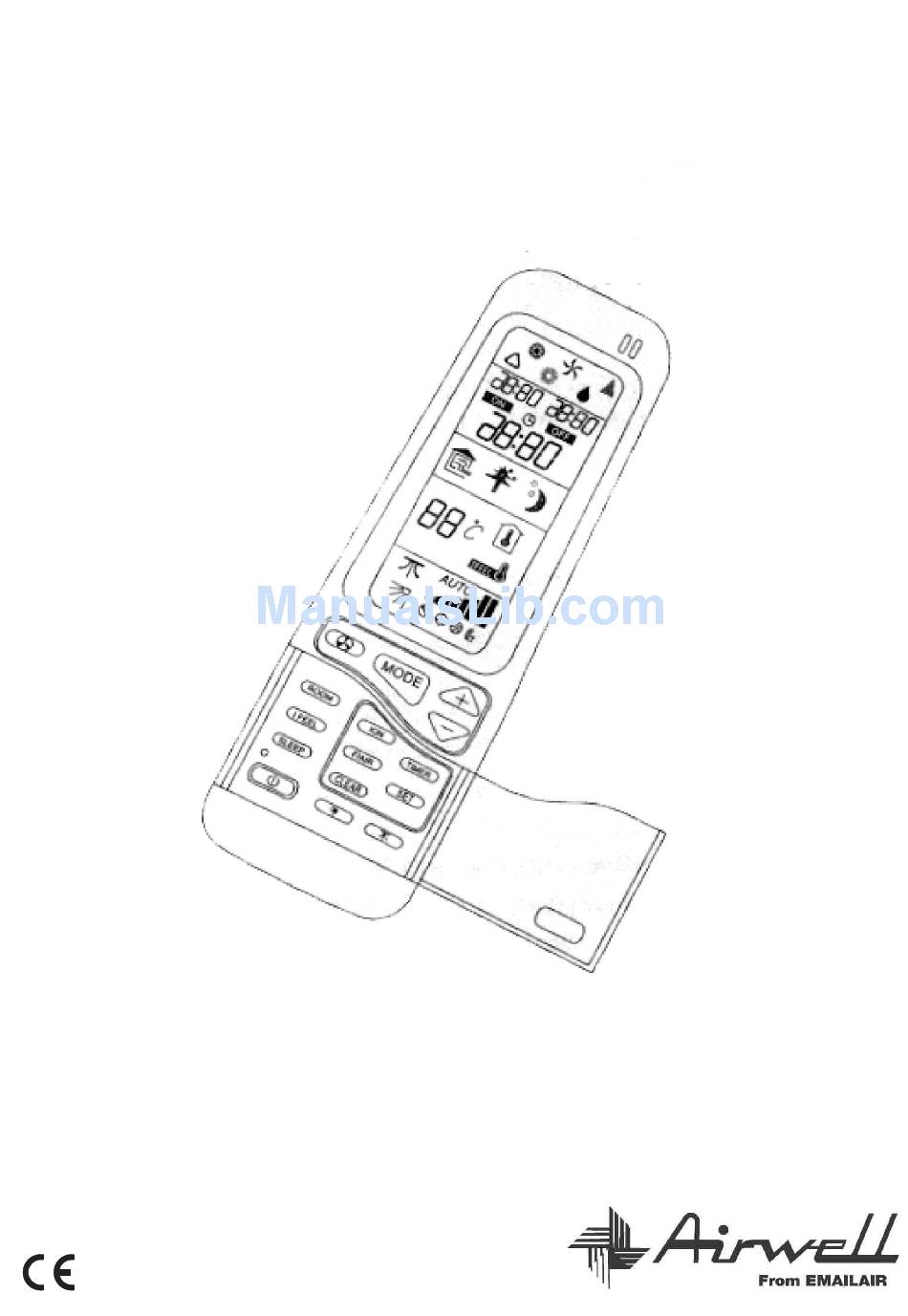

  • Page 1 RC3-LCD remote control PROGRAMMING AND OPERATION MANUAL...
  • Page 2: Table Of Contents

    CONTENTS IF YOUR AIR REMOTE CONTROL CONDITIONER IS FOR COOLING ONLY, PLEASE USE OF WIRELESS REMOTE CONTROL DISREGARD THE HEATING INSTRUCTIONS MODES OF OPERATION, FUNCTIONS AND FEATURES PLEASE READ THESE INSTRUCTIONS BEFORE OPERATION PROCEDURE OPERATING THE AIR CONDITIONER Turning on the air conditioner Ventilating operation Cooling operation Cooling operation with auto fan mode...
  • Page 3: Remote Control

    REMOTE CONTROL START/STOP button Operation mode selection button COOLING HEATING AUTO COOL / HEAT I FEEL temperature sensing mode button FAN SPEED and AUTO FAN button Room temperature UP button Room temperature DOWN button SLEEP button Airflow direction AUTO-CONTROL button HORIZONTAL Airflow direction AUTO-CONTROL button IONIZER button...
  • Page 4: Use Of Wireless Remote Control

    USE OF WIRELESS REMOTE CONTROL PRIOR OPERATION Prior to operating your air conditioner, make sure of the following procedures: Insert the plug of indoor unit to power supply properly. Indicator (C) on the air conditioner light on, indicating air conditioner is ready to receive signals from remote control.
  • Page 5: Modes Of Operation, Functions And Features

    MODES OF OPERATION, FUNCTIONS AND FEATURES COOL Cools, dehumidifies and filters the room air. Maintains desired room temperature. HEAT Heats and filters the room air. Maintains desired room temperature. Automatically switches from COOLING to HEATING or from HEATING to AUTO COOLING, maintaining the desired temperature according to the room conditions.
  • Page 6 The air flap (louvre) is automatically positioned for the most suitable blow-out angle, when COOL, HEAT, DRY or FAN modes are selected. When the air AUTO FLAP conditioner is turned off, the flap will close automatically for an aesthetic (LOUVRE) appearance.
  • Page 7: Operation Procedure

    OPERATION PROCEDURE TURNING ON THE AIR CONDITIONER Press START/STOP button (1) to turn the air conditioner on. After connecting to the power supply. The indicator ( C ) on the air conditioner light up, indicating that the air conditioner is in the standby status. Please note that the LCD operation display (13) will always show the last mode of operation and previous function used.
  • Page 8: Auto Cooling / Heating Operation

    AUTO COOLING / HEATING OPERATION Select the AUTO mode by pressing MODE button (2). Switch to the desired FAN SPEED or to AUTO FAN by pressing button (4). Select suitable temperature setting. The air flap will automatically move to either horizontal air delivery for cooling or to vertical air delivery for heating.
  • Page 9: Timer Operation

    TIMER OPERATION Press TIMER select button (11) to activate the timed operation mode. Each time the TIMER button (11) is pressed, one of the following four types of operation modes will appear on the LCD display. The operation modes are sequenced in the direction of arrow. During Timer operation, the Indicator on the air conditioner will light up.
  • Page 10: Air Direction Operation

    AIR DIRECTION OPERATION Press button (8) to activate the supply air flap to auto swing. Press button (9) to activate the Horizontal Air Flow to auto swing. Press the two button again, you will cancel auto swing function. TURNING OFF THE AIR CONDITIONER Press ON / OFF button (1) to turn off the air conditioner.
  • Page 11: Fresh Air Function (Optional)

    FRESH AIR FUNCTION (optional) Press the FRESH AIR button (17) to activate the Fresh air function, and press the button again to cancel this function. IONIZER AND ELECTROSTATIC FILTER Press the IONIZER button (10) to activate the Ionizer and Electrostatic Filter function, if the Ionizer switch at ON position, the blue indicator on the Ionizer lights up.
  • Page 12 TEL: (09) 820 0333 FAX: (09) 820 0332 517A Rosebank Road Avondale, Auckland NZ NZ Tech Support Freecall TEL: 0800 180 094 www.airwell.com.au WITH A CONCERN FOR A CONSTANT IMPROVEMENT, OUR PRODUCTS CAN BE MODIFIED WITHOUT NOTICE. PHOTOS NON CONTRACTUAL. © Copyright 2003...
