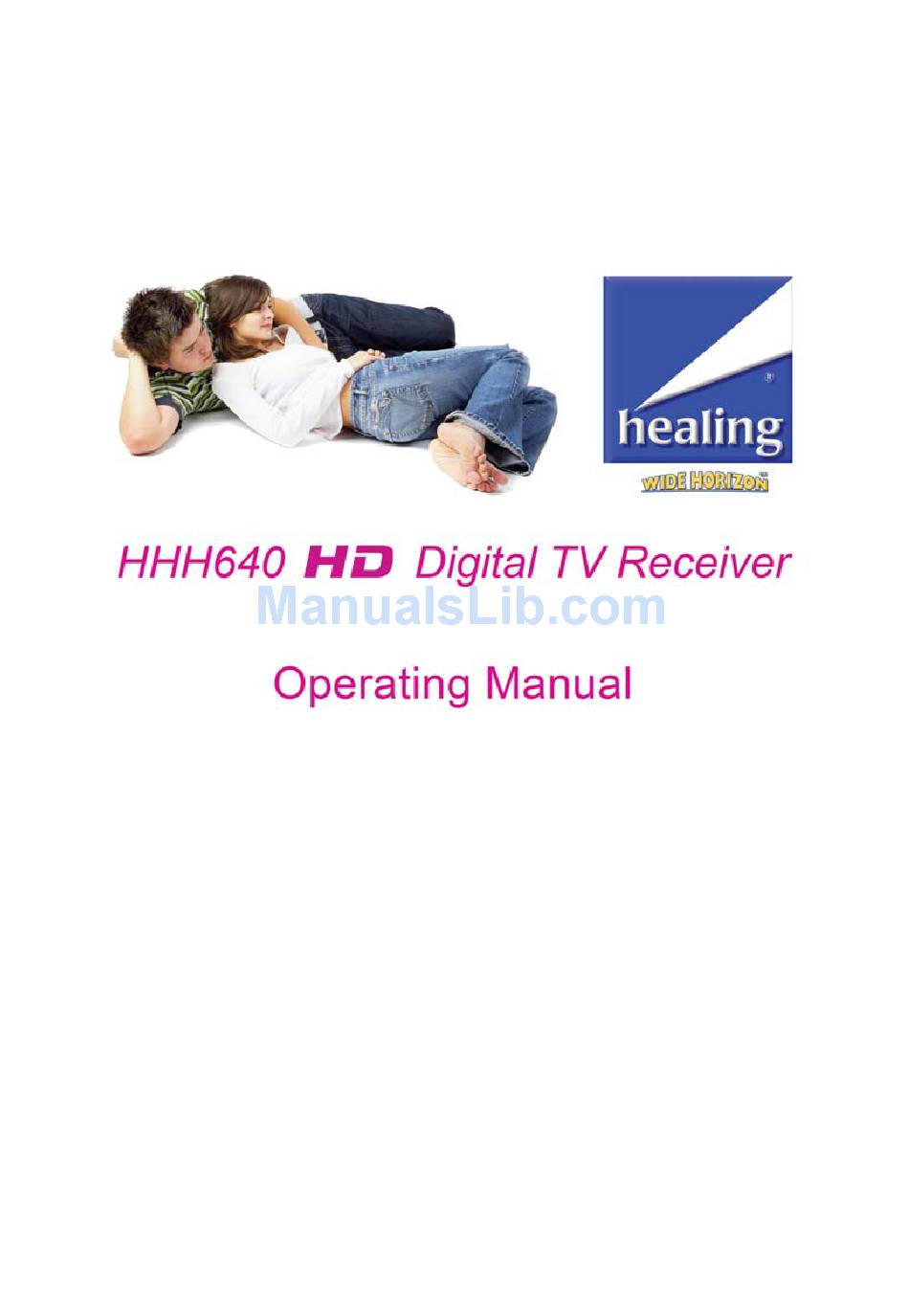

healing HHH640 Operating Manual

Hd digital tv receiver

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the HHH640 and is the answer not in the manual?

Questions and answers

Summary of Contents for healing HHH640

Page 3: Table Of Contents
CONTENTS Introduction and Features Safety Instructions Connectors Remote Control Unit Key Layout Remote Control Unit Key Functions Remote Control - Battery Care / Preparation / Distance / Tips Installation – HDMI Output Plug / AV lead for CVBS Composite Start Up Time Zone Manual Scan Up/Down Channel Change / Numeric Input Channel Change...
Page 5 INTRODUCTION Thank you for choosing a healing HHH640 ‘micro’ high definition digital television receiver. This sophisticated receiver has a host of exciting features and will enable you to receive and enjoy high definition and standard definition digital terrestrial TV channels that are available in your location - including freeview channels.
Page 6: Safety Instructions
SAFETY INSTRUCTIONS Operating and Safety instructions should be read prior to connecting and operating the unit. Please adhere to all Safety Instructions listed in this operating manual. DO NOT INSTALL YOUR RECEIVER:- In a closed or poorly ventilated cabinet Directly on top or under any other equipment. DO NOT EXPOSE THIS RECEIVER OR ITS ACCESSORIES: To water or intense moisture To direct sunlight...
Page 7: Connectors
CONNECTORS HDMI OUTPUT PLUG – Combined Video & Audio RF IN: Television antenna input RF OUT: Loop through to pass the antenna signal to another receiver. Connection for the supplied Infrared Remote Extender DC5V: Connection for the supplied Power Pack. USB: USB-2 host connection for storage devices including Memory Sticks and Hard Disk Drives for Recording, TimeShift, Media file...
Page 8: Remote Control Unit Key Layout
REMOTE CONTROL UNIT KEY LAYOUT...
Page 9: Remote Control Unit Key Functions
REMOTE CONTROL UNIT KEY FUNCTIONS STANDBY: Press to Operate your receiver or place it in Standby mode. INFO: First press shows the Basic Information bar on screen. Second press shows the Detail program Info panel. Third press shows Program Info with signal Strength & Quality. AUDIO: Press to enter Audio Setting menu.
Page 10: Remote Control - Battery Care / Preparation / Distance / Tips
REMOTE CONTROL BATTERY CARE To ensure long life from your Remote Control Unit:- 1. Check that the polarity indicators of batteries and the remote control terminals correspond. 2. Do not mix new and old or different types of batteries together. 3.
Page 11 The HDMI Output Plug of the HHH640 provides Video and Audio. . Set your TV Video mode to HDMI via your TV Video Source. Connect the HHH640 with the units HDMI Output plug to the HDMI Input connector of your television.
Page 12: Start Up
START UP Once you have made your video connection to the HHH640 and to your TV, connected the antenna, IR Extender and Power Pack, please action the following Start Up procedure:- . Power On the HHHH640 and a healing banner will be displayed for a few seconds and - - - will appear in the units orange LED display.
Page 13: Manual Scan 1
. Use the Left/Right arrow keys on the remote control and select MY BOX. . Push OK key on remote control and the seven MY BOX parameters will list. . Press the Up/Down arrow keys on the remote control and select TIME ZONE.
Page 14: Volume Adjustment / Volume Mute
Up/Down Channel Change Press the Up/Down arrow keys on the remote control to select a channel to view. Numeric Input Channel Change Press the number keys on the remote control to select a channel to view. Volume Adjustment Volume Increase: Press the Right arrow key on the remote control. Volume Decrease: Press the Left arrow key on the remote control.
Page 15: Epg - Electronic Program Guide
EPG – Electronic Program Guide EPG is a chronological listing of broadcasters programming schedules over an extended period (normally 7 days plus) which includes detailed program descriptions. . Press the EPG button on the remote control and TV Guide page will be displayed.
Page 16: Installation Menu 1
. Press the Up/Down arrow keys on the remote control and select SUBTITLE LANGUAGE. . Press the Return/Exit key 3 times to return to normal TV viewing. Closed Captions will now display at all times when broadcast. Closed Captions – By Subtitle Key If you decide not to set up Closed Captions in the Installation menu;...
Page 17: My Box Menu 1
Antenna Power: The default setting is Off. If you have a 5Volt DC ‘active’ antenna, press the Left/Right arrow key and select ‘Yes’. Country Setting: Australia is set as default. OSD Language: The On Screen Display default is English. Handle carefully as this option presents the possibility of getting lost in an unfamiliar language! Audio Language English is set as default and is usually the only language option broadcast...
Page 18: Tv Setup Menu
Note: Once you have set a parameter, you can return to normal TV viewing by pressing the Return/Exit Key on the remote control 3 times. Power On TV is set as default, do not alter this setting. OSD Style All On Screen Displays are set as Blue default. If you wish to have OSD in Green, press Left/Right arrow keys and select Green.
Page 19 Video Output You will not need to make any adjustment. . If you connect the HHH640 to the TV by the receivers HDMI output plug, the HHH640 Video Output menu will automatically list as HDMI. . If you connect the HHH640 to the TV by Receivers A/V connector socket,...
Page 20: Password Menu 1
TV Resolution Enables selection of Video Resolution type. Optimal video resolution depends on which video output that you have connected from the HHT650 and the TV displays capability: . HDMI- You can select: 1080i, Auto, 720P . RCA (CVBS) In this Composite output video resolution 576i is the default and cannot be altered.
Page 21 . With the Menu Lock ON, if any of the above listed menus are accessed, a banner will display ‘The Menu Is Locked. Please Enter Password’. . To temporarily unlock, enter password (the default password is o, o, o, o,). .
Page 22: Navi Key Functions 2
New Password’. . Enter again your new password and banner will display ‘Pin Code Changed’. . Press the OK key on the remote control. . Press the Return/Exit key 3 times to return to normal TV viewing. SW Update: To enable firmware updates that may occur in the future. Set Default: Returns the receiver to its factory default settings .
Page 23 If you want to have Closed Captions operating at all times, set up Closed Captions via the INSTALLATION Menu. Navi Key – Teletext The HHH640 includes the facility to receive Teletext when broadcast. Note: Currently broadcasters are not transmitting Teletext but use page 801 to send Closed Caption Subtitles.
Page 24 . Press the Left/Right arrow key on the remote control and select Zoom. . Press the OK key in turn to select Zoom %. . Press the Up/Down and Left/Right arrow keys on the remote control to adjust the picture view position. Navi Key - Adv Timer The Adv Timer menu is used to set up your timer recordings: For explanation please refer to Timer Recording - Program and TV Channel...
Page 25: Fav Key 2
. With the Visible TV list displayed, press the NAVI key again and menu symbols will appear at the bottom of the page. . Press the Left/Right arrow key to select Favorites. . With a channel selected, press the OK key on the remote control and 8 Favorites Symbols will display.
Page 26 Search: ‘Search’ is based on the current channel list. With the Search menu, you can identify channels you want to search for within the channel list...
Page 27 RECORDING FUNCTIONS Connect a USB memory stick or hard disk drive storage device to the host USB-2 connector on the receiver. Your receiver has been tested with a wide range of USB Storage Devices of sizes of up to 2TB including those USB powered, however it may not be compatible with every USB storage device available.
Page 28 Instant Record Please note the following prior to actioning an Instant Recording: In the PVR page within the OPTION menu, you can choose to have One Button Timer Recording ON or OFF. The Units default is OFF; and in this mode a Recording Interval Banner will display when you press the REC key on the Remote control allowing you to set a recording finish time.
Page 29 Timer Recording – Program Specific . Press the EPG key on the remote contro l and TV Guide page will be displayed. . Press the U p/Down arrow key on the remote control to select a TV Channel. . Press the Right arrow key on the remote control to move to the Chan nels...
Page 30 - Start Time: Input recording commencement time using the number keys on the remote control. - End Time: Input recording finishing time using the number keys on th remote control. - Mode: Press the right arrow key on the remote control to select recording freque ncy.
Page 31: Recording Functions - Manage Files / Time Shift
Fast Forward through a recording There are 8 Forward speeds that you can select by pressing the ►►FWD key on the remote control in turn. Press Play key on remote control a t any time to revert to normal play. ast Rewind through a recording There are 8 Rewind speeds that you can select by pressing the ◄◄...
Page 32 Time shifted live TV gives the flexibility of pausing and rewinding live TV programs at any time. Time Shift can be set as: Off / Pause / Auto. . In PAUSE mode, time shift is operated by pressing the PAUSE key. .
Page 33 USB Storage Device Capacity As the size of and space available on your USB storage device impacts the amount of recorded content that can be stored, following is an overview of what you can expect. The receiver captures the broadcaster’s stream, which they vary in bit rate balancing program quality and available bandwidth.
Page 34 . On the left of the page your files will be listed. . Press the Up/Down arrow key on the remote control to select a Photo file. . With a Photo file selected, press OK key on the remote control and all photos in the file will be listed on the right of the screen.
Page 35 . Press the Left/Right arrow keys on the remote control to locate MUSIC in the middle of the screen. . Press the OK key on the remote control and MUSIC THUMBNAIL page will be displayed. . On the left of the page your files will be listed. .
Page 36 With a movie playing, there are other functions that can be actioned as follows: Press the NAVI key on the remote control and 8 menu symbols will be listed at the bottom of the page as follows:- Go To: To move to any section of the movie. - Select Go To and press the OK key on the remote control.
Page 37: Troubleshooting
Check the HDMI plug is properly connected, or see Video or Audio if the AV lead is used, check it is properly connected to the HHH640 and to the correct RCA connectors of your TV. After scanning I cannot Your antenna system may need to be updated...
Page 38: Specifications
SPECIFICATIONS . Decodes High Definition and Standard Definition Digital Terrestrial TV & Radio. . Video Outputs: HDMI via the HDMI Output Plug / Composite CVBS via the A/V lead . Video Resolutions: 1920 x 1080i, 1280 x 720p, 720 x 576p or 720 x 576i. .
Page 39 Subject to the conditions stated below, healing digital warrants your new receiver to be free of defects in workmanship and materials for 12 months from the date of purchase. For the period of warranty healing digital’s obligation includes labour and materials, but excludes neglect, accident, abuse and transportation to and from healing digital’s service station.
