Dahua HD Fisheye Panorama Network Camera Quick Start Guide

1 Structure

1.1 Device External Cable

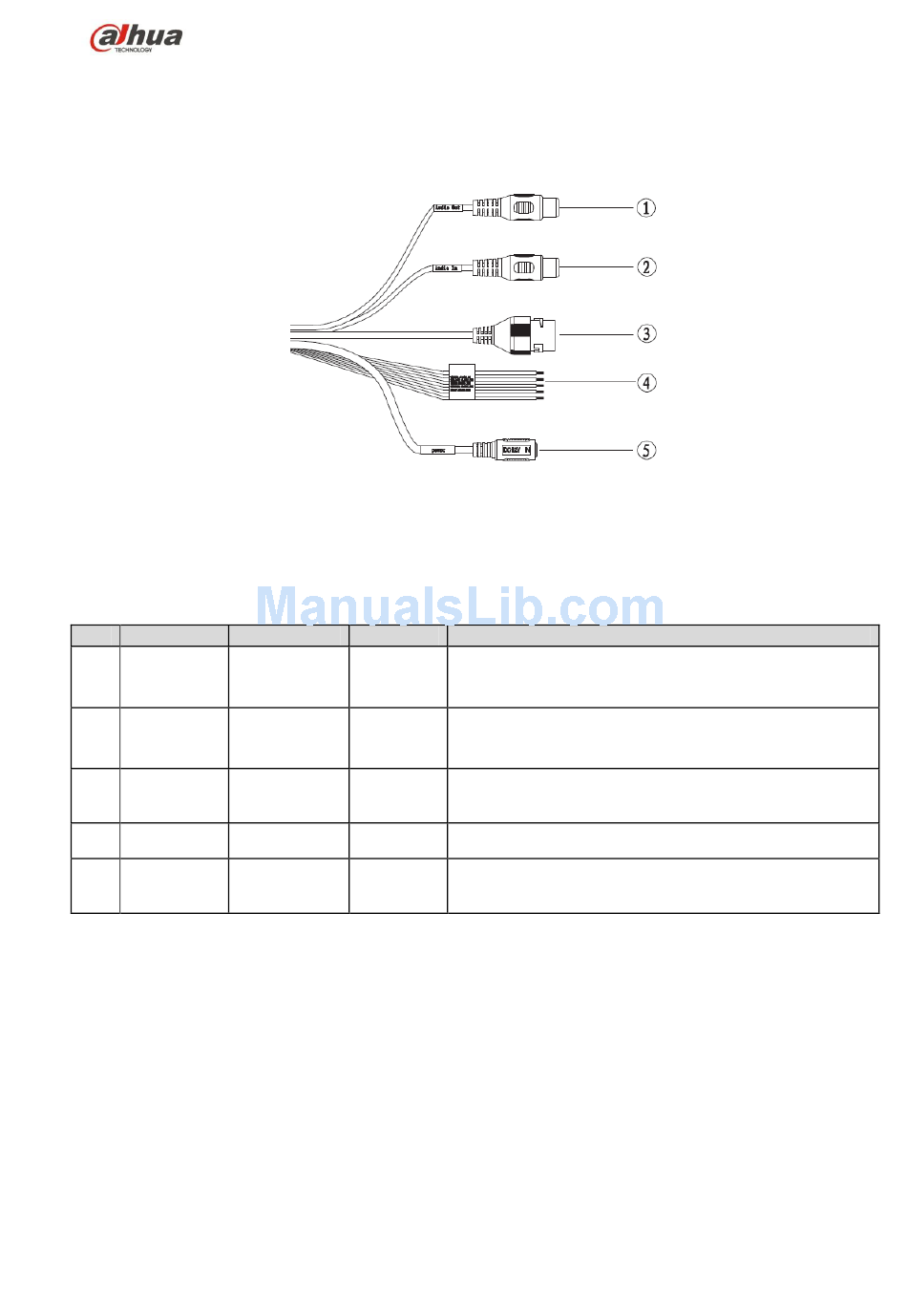

The device external cable is shown in Figure 1- 1.
Please refer to Sheet 1-1 for corresponding information about external cable functions.
NO. Port Port Name
Audio output
AUDIO
1
OUT port
Audio input
2 AUDIO IN
port
Network port
3 LAN
4 I/O I/O port
Power input
5 POWER
port

1.2 Dimensions

Note:
There are two standards for side dimension of the device, which are: 33.7mm, 47.7mm and
36.6mm, 50.7mm. Please refer to the actual product model for more details.
You can refer to the following figures for dimension information. The Unit is mm. See Figure 1-2 and
Figure 1-3.
Figure 1- 1
Connector Function Description
RCA Output audio signal to the speakers.
Input audio signal, receive the analog audio signal
RCA
from the sound pick-up.
Ethernet
Connect to standard Ethernet cable.
port
- Connect I/O port
- Connect DC 12V power, input power
Sheet 1-1
