o p E R at i o n i n s t R U c t i o n s M a n U a L

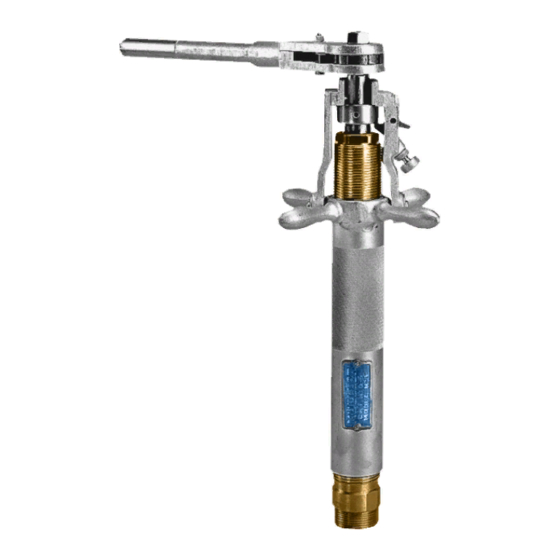

MUELLER
E-5
and D-5
TM
Drilling
Machines
!
WARNING:
1. Read and follow instructions carefully. Proper training and periodic
review regarding the use of this equipment is essential to prevent possible
serious injury and/or property damage. The instructions contained
herein were developed for using this equipment on fittings of Mueller
manufacturer only, and may not be applicable for any other use.
2. Do noT exceed the pressure ratings of any components or equipment.
Exceeding the rated pressure may result in serious injury and/or property
damage.
3. Safety goggles and other appropriate protective gear should be used.
Failure to do so could result in serious injury.
4. Pressure test, check for and repair leaks in all fittings and components
each time one is installed or any joint or connection is broken. Failure
to find and repair a leak from any source in the fittings, by-pass lines
or equipment could result in an explosion and subsequent serious injury
and/or property damage.
5. Mueller
Drilling Machines and Equipment have been carefully
®
designed and engineered to work together as a unit. The use of
equipment manufactured by someone other than Mueller Co. may cause
excessive wear or a malfunction of the Mueller machines.
®
TM
All warranties, expressed or implied, for Mueller Drilling Machines are
rendered null and void if the machines are used with shell cutters or

TAblE oF ConTEnTS

Reliable Connections
Customer Service Center
www.muellercompany.com
moreinfo@muellercompany.com
equipment manufactured by someone other than Mueller Co.
PAGE
2
3
4-5
6
7
TM
Decatur, Illinois
800.423.1323

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mueller D-5

  • Page 1 The instructions contained Reliable Connections herein were developed for using this equipment on fittings of Mueller manufacturer only, and may not be applicable for any other use. 2. Do noT exceed the pressure ratings of any components or equipment.
  • Page 2 E-4 Drilling Machine in the latest Machine Only 25 lbs (11 kg) Mueller water and gas catalogs. Shipping length 22” For operating instructions see pages 4 – 5 and for E-5 Drilling Machine Extended length 32”...
  • Page 3 35 lbs (16 kg) Mueller water and gas catalogs. Shipping length ” For operating instructions see pages 4 – 5 and for D-5 Drilling Machine Extended length 37” Parts see page 7. Small Drilling Machine Selection Guide Machine Drill or cutter Maximum operation type of pipe...
  • Page 4 The feed tube when drilling A-C or concrete pipe.) the unit as practical and adjust on the E-5 and D-5 is designed to for slight oil mist from exhaust – 5. Attach proper size machine maintain pressure of 90psig. We...
  • Page 5 MUELLER and E-5 Drilling Machines ® Operating Instructions SPECIAL NOTE: In general, the This will apply a light, even feed. The pressure inside of the drilling Feed handles should be used to machines should be lubricated machine will tend to raise the boring apply a heavier feed.
  • Page 6 MUELLER and E-5 Drilling Machines ® E-5 Parts parts List ID PART NAME PART No. 1 Ratchet Handle Complete 580897 2 Crank Handle 50085 3 Handle Pin 500635 E-5 Machine Complete 4 Handle 51484 5 Detent Knob 37863 6 Spring 37883 7 Operating Pin 500803 8 Ratchet Dog...
  • Page 7 MUELLER and E-5 Drilling Machines ® D-5 Parts parts List ID PART NAME PART No. D-5 Machine Complete 1 Ratchet Handle 85308 2 Handle Bar 50111 3 Spring Pin 40006 4 Spring 40007 5 Ratchet Dog 40004 6 Nut 45255 7 Stud 40139 8 Ratchet Wheel...
  • Page 8 Copyright © 2017 Mueller Co., LLC. All Rights Reserved. The trademarks, logos and service marks displayed in this document herein are the property of Mueller Co., LLC, its affiliates or other third parties. Products marked with a section symbol ( § ) are subject to patents or patent applications. For details, visit www.mwppat.com. These products are Form 9335 - 01/17 intended for use in potable water applications.
