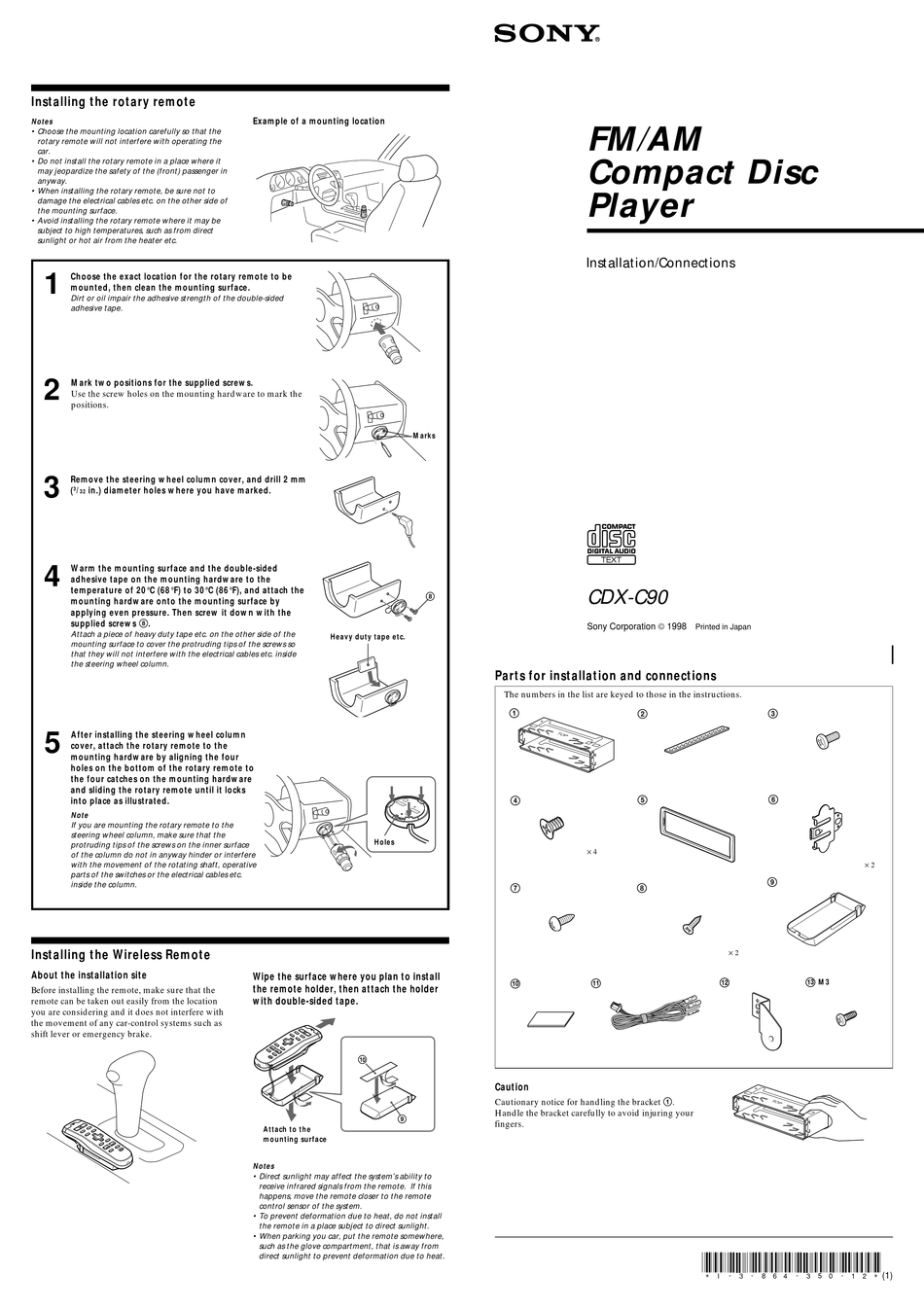

Installing the rotary remote
Notes
• Choose the mounting location carefully so that the
rotary remote will not interfere with operating the
car.
• Do not install the rotary remote in a place where it
may jeopardize the safety of the (front) passenger in
anyway.
• When installing the rotary remote, be sure not to
damage the electrical cables etc. on the other side of
the mounting surface.
• Avoid installing the rotary remote where it may be
subject to high temperatures, such as from direct
sunlight or hot air from the heater etc.
1
Choose the exact location for the rotary remote to be
mounted, then clean the mounting surface.
Dirt or oil impair the adhesive strength of the double-sided
adhesive tape.
2
Mark two positions for the supplied screws.
Use the screw holes on the mounting hardware to mark the
positions.
3
Remove the steering wheel column cover, and drill 2 mm
(
3
/
in.) diameter holes where you have marked.
32
4
Warm the mounting surface and the double-sided
adhesive tape on the mounting hardware to the
temperature of 20°C (68°F) to 30°C (86°F), and attach the
mounting hardware onto the mounting surface by
applying even pressure. Then screw it down with the
supplied screws 8.
Attach a piece of heavy duty tape etc. on the other side of the
mounting surface to cover the protruding tips of the screws so
that they will not interfere with the electrical cables etc. inside
the steering wheel column.
5
After installing the steering wheel column
cover, attach the rotary remote to the
mounting hardware by aligning the four
holes on the bottom of the rotary remote to
the four catches on the mounting hardware
and sliding the rotary remote until it locks
into place as illustrated.
Note
If you are mounting the rotary remote to the
steering wheel column, make sure that the
protruding tips of the screws on the inner surface
of the column do not in anyway hinder or interfere
with the movement of the rotating shaft, operative
parts of the switches or the electrical cables etc.
inside the column.
Installing the Wireless Remote
About the installation site
Before installing the remote, make sure that the
remote can be taken out easily from the location
you are considering and it does not interfere with
the movement of any car-control systems such as
shift lever or emergency brake.
Example of a mounting location
Marks
8
Heavy duty tape etc.
Holes
Wipe the surface where you plan to install
the remote holder, then attach the holder
with double-sided tape.
9
Attach to the
mounting surface
Notes
• Direct sunlight may affect the system's ability to
receive infrared signals from the remote. If this
happens, move the remote closer to the remote
control sensor of the system.
• To prevent deformation due to heat, do not install
the remote in a place subject to direct sunlight.
• When parking you car, put the remote somewhere,
such as the glove compartment, that is away from
direct sunlight to prevent deformation due to heat.
FM/AM
Compact Disc
Player
Installation/Connections
CDX-C90
Sony Corporation © 1998
Parts for installation and connections
The numbers in the list are keyed to those in the instructions.
1
2
4
5
× 4
7
8
Caution
Cautionary notice for handling the bracket 1.
Handle the bracket carefully to avoid injuring your
fingers.
Printed in Japan
3
6
× 2
9
× 2
!™
M3
*I-3-864-350-12*
(1)
