ON-WALL INSTALLATION

The soundbar can be mounted above or below a
television with the feedback display and rear con-
nection panels orientated towards the bottom or
top of the soundbar (depending on your specific
installation requirements). The information shown
on the soundbar display can be flipped to match
your installation orientation.
Note: These instructions assume the mounting
surface is standard wood frame and sheetrock
construction. If you wish to mount to another type
of surface, consult a bonded contractor.
Note: When installing the system in this configura-
tion, use the soundbar's menu system to choose
'Installation > Wall Mount'. For more information,
see page 18 for details.
Required tools (not included):
• Stud finder
• Level
• Electric drill and drill bits
• Phillips screwdriver
Fig. 1
WARNING! We strongly recommend
locating the wall bracket so at least
one of the screw locations attaches
to a stud. WARNING! To prevent injury,
this apparatus must be securely attached to the
floor/wall in accordance with the installation
instructions.
Required hardware (included):
• (1) Installation template
• (1) Wall bracket
Required hardware (not included):
• (5) Screws appropriate for mounting surface
• (5) Sheet rock anchors (sized for screws)

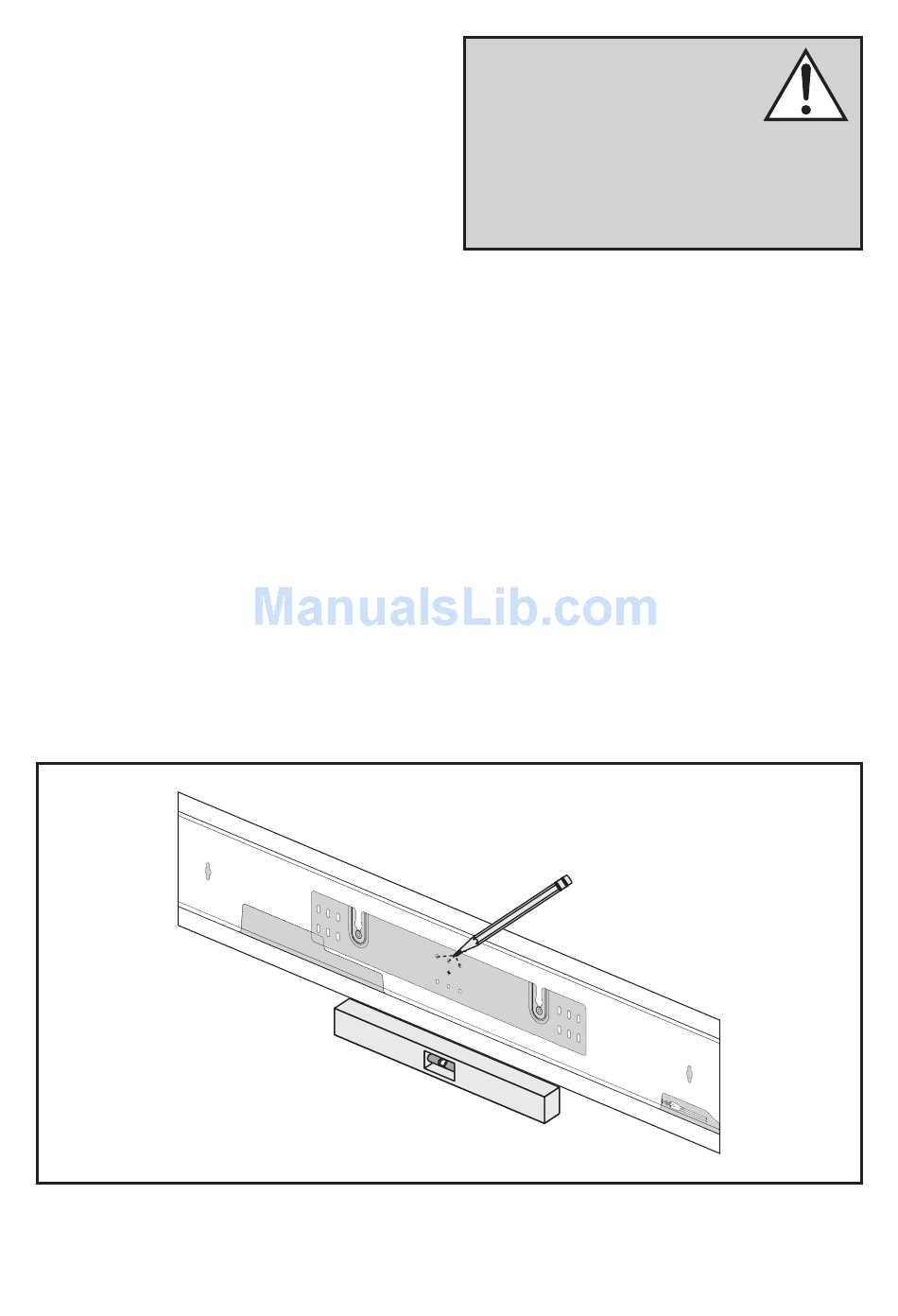

1. Locate mounting location using a level and the
installation template (fig. 1).
2. Mark the three central pilot hole locations and
remove the installation template (fig. 1).
