Summary of Contents for Horizon Hobby blade torrent 110

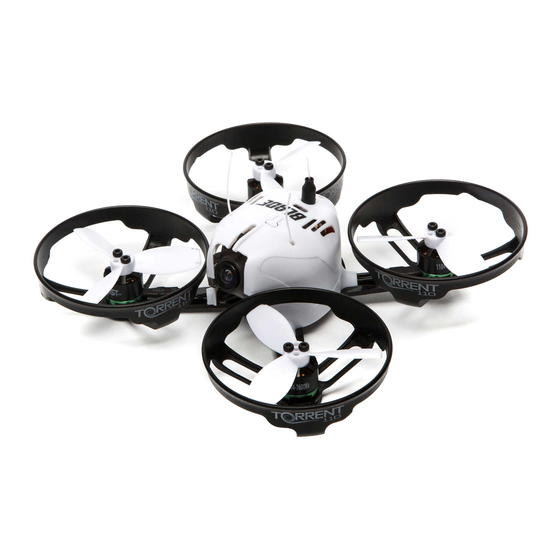

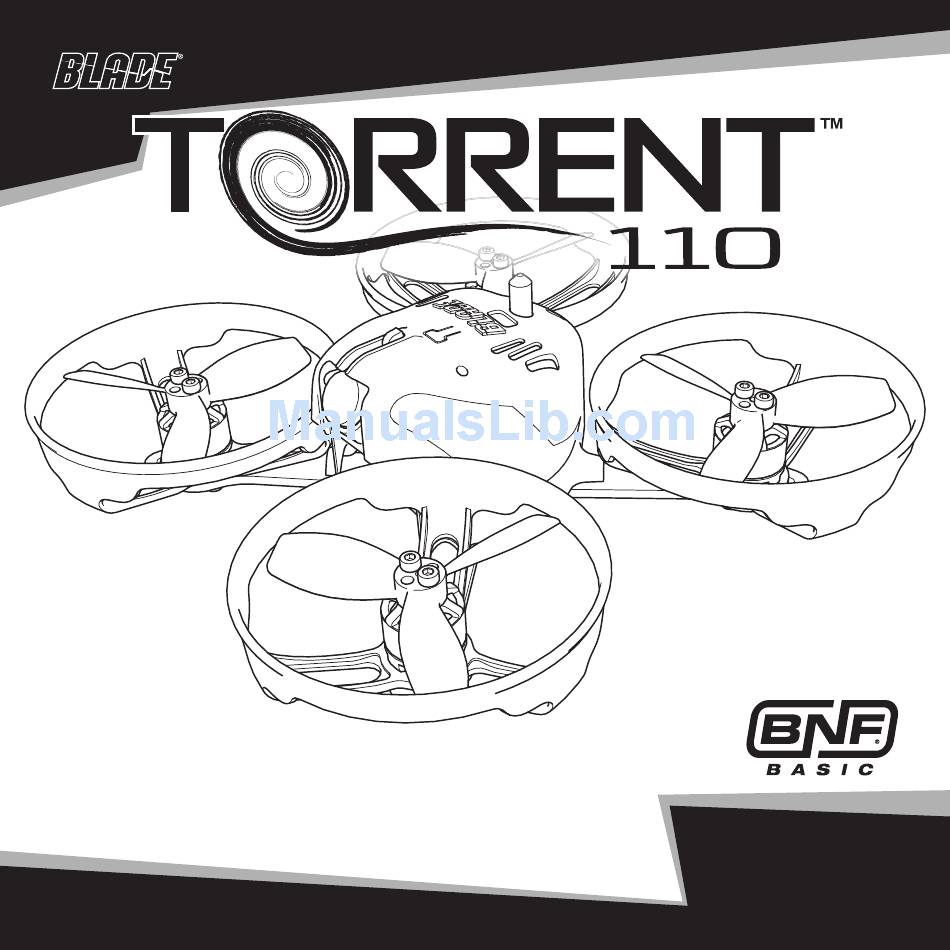

- Page 1 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
- Page 2 Do not use with incompatible compo- nents or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
- Page 3 • Never touch moving parts. WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace a Spektrum component found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
-
Page 4: Table Of Contents
This product uses Betafl ight Third Party Software in portions of its coding. For more information on Betafl ight Software, please visit: https://github.com/betafl ight/betafl ight/wiki. THIRD PARTY SOFTWARE. This product may include code developed by one or more third parties (“Third Party Software”). - Page 5 Box Contents: ™ • Torrent BNF Basic Quadcopter ™ - Spektrum Quad Race Serial Receiver w/telemetry - 4-n-1 FPV ESC - Flight Controller - 150mW Video Transmitter, included in BLH04050 (North America) - 25mW Video Transmitter, included in BLH04050EU (Europe) - FPV Camera Needed to Complete: ®...
-
Page 6: First Flight Preparation
First Flight Preparation Flying Checklist ❏ Always turn the transmitter on fi rst • Remove and inspect contents ❏ Plug the fl ight battery into the lead from the ESC • Begin charging the fl ight battery ❏ Allow the ESC to initialize and arm properly •... -
Page 7: Transmitter Setup
Transmitter Setup DX6, DX7 (Gen 2), DX8 (Gen 2), DX9, DX18, DX20 SETUP LIST FUNCTION LIST Model Type Servo Setup Timer Mode Count Down Airplane Chan Travel Reverse Time 3:00 150/150 Normal F-Mode Setup Start Throttle Out 148/148 Reverse Switch 1 Inhibit Over 148/148... -
Page 8: Installing The Flight Battery
Installing the Flight Battery 1. Set the motor arm switch to OFF (position 1). 2. Lower the throttle. 3. Power on the transmitter. 4. Attach hook material to the quadcopter frame and loop material to the battery. 5. Install the fl ight battery on the quadcopter frame and secure it with the hook and loop strap. -
Page 9: Transmitter And Receiver Binding
Transmitter and Receiver Binding To bind or re-bind your quadcopter to your chosen transmitter, follow the directions below. Binding Procedure 1. Select the correct model in your transmitter. 2. Power off your transmitter. 3. Lower the throttle fully. 4. Power the quadcopter on while pressing the bind button located on the fl ight control board below the camera, as shown in the illustration. -
Page 10: Understanding The Primary Flight Controls
Understanding the Primary Flight Controls If you are not familiar with the controls of your quadcopter, take a few minutes to familiarize yourself with them before attempting your fi rst fl ight. Throttle Left Side View Left Side View Descend Climb Throttle up Throttle down... - Page 11 Elevator Left Side View Left Side View Elevator up Elevator down Forward Backward Aileron Rear View Rear View Aileron left Aileron right Left Right...
-
Page 12: Using The Video Transmitter
Using the Video Transmitter Consult local laws and ordinances before operating FPV equipment. In some areas, FPV operation may be limited or prohibited. You are responsible for operating this product in a legal and responsible manner. LED window See the Available Frequency table to fi nd the desired video channel and band. -
Page 13: Adjusting The Fpv Camera Angle
Available Frequencies, North America (mHz) Band CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 Band A 5865 5845 5825 5805 5785 5765 5745 5725 Band B 5733 5752 5771 5790 5809 5828 5847 5866 Band E... -
Page 14: Preparing The Torrent Quadcopter For Flight
Preparing the Torrent Quadcopter for Flight 1. Before each fl ight, ALWAYS power on the transmitter before connecting the fl ight battery to the quadcopter. After each fl ight, disconnect the fl ight battery from the quadcopter before powering off the transmitter. -
Page 15: Flying The Torrent Quadcopter
Flying the Torrent Quadcopter Takeoff When you are prepared to fl y, start the motors by activating the motor arm switch (switch H), as programmed in the transmitter setup section. Increase the throttle until the model is approximately 2 ft. (600mm) off the ground and check the trim so the model fl ies as desired. Once the trim is adjusted, begin fl... -
Page 16: Post-Flight Inspection And Maintenance Checklist
Post-Flight Inspection and Maintenance Checklist WARNING: Remove the propellers from the motors prior to performing any troubleshooting or maintenance. Failure to do so may cause serious injury if the motors start unexpetedly. √ Make sure the battery is not connected before cleaning. Remove dust and debris with a Cleaning soft brush or a dry, lint-free cloth. - Page 17 Problem Possible Cause Solution Motor arm switch is in the OFF position Set the motor arm switch to the ON position Throttle too high and/or throttle trim Reset controls with the throttle stick is too high and throttle trim at the lowest setting Disconnect the flight battery and re-initialize Quadcopter will not Quadcopter moved during initialization...
- Page 18 Problem Possible Cause Solution Bind button not pressed while Power off quadcopter and repeat bind process powering on the quadcopter Bind switch or button was not held Power off transmitter and repeat bind process while transmitter was powered on Power off the transmitter. Move the transmitter a larger distance from the aircraft or shield the Diffi...
-
Page 19: Parts Explosion
Parts Explosion Parts Listings Part # Description Part # Description 1 BLH04001 Carbon Frame 7 SPMFCMF300 Flight Control, F3 2 BLH04002 Body/Camera Mount 8 BLH04008 4-n-1 FPV ESC, BLHeli 3 BLH04003 Prop Guards (4) 9 BLH04009 2" FPV Propellers 4 SPMVTM150 150mW Video Transmitter 10 BLHA1024 1104-7600Kv FPV Racing Motor 5 SPMVTM025 25mW Video Transmitter... -
Page 20: Limited Warranty
Product, (iv) attempted EVEN IF HORIZON HAS BEEN ADVISED OF THE service by anyone other than a Horizon Hobby autho- POSSIBILITY OF SUCH DAMAGES. Further, in no event rized service center, (v) Product not purchased from an... - Page 21 or use of the Product has been started, you must contact NOTICE: Do not ship LiPo batteries to Horizon. If you your local distributor or Horizon directly. This will enable have any issue with a LiPo battery, please contact Horizon to better answer your questions and service you in the appropriate Horizon Product Support office.
-
Page 22: Warranty And Service Contact Information
United States 4105 Fieldstone Rd (Product Technical As- of America Champaign, Illinois, 61822 USA sistance) 877-504-0233 websales@horizonhobby.com Sales 800-338-4639 Horizon Technischer service@horizonhobby.de Service European Hanskampring 9 Union D 22885 Barsbüttel, Germany Sales: Horizon Hobby +49 (0) 4121 2655 100 GmbH... -
Page 23: Fcc Information
FCC Information FCC ID: BRWAR4649T This equipment has been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 24: Compliance Information For The European Union
Compliance Information for the European Union EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essen- tial requirements and other relevant provisions of the RED and EMC Directives. A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/ support-render-compliance. - Page 25 ©2017 Horizon Hobby, LLC. Blade, Torrent, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, ModelMatch, Focal and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
