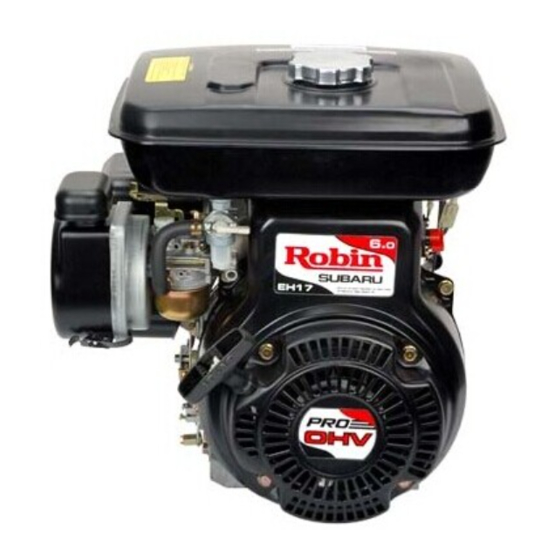

Summary of Contents for Robin EH12-2D/12-2B

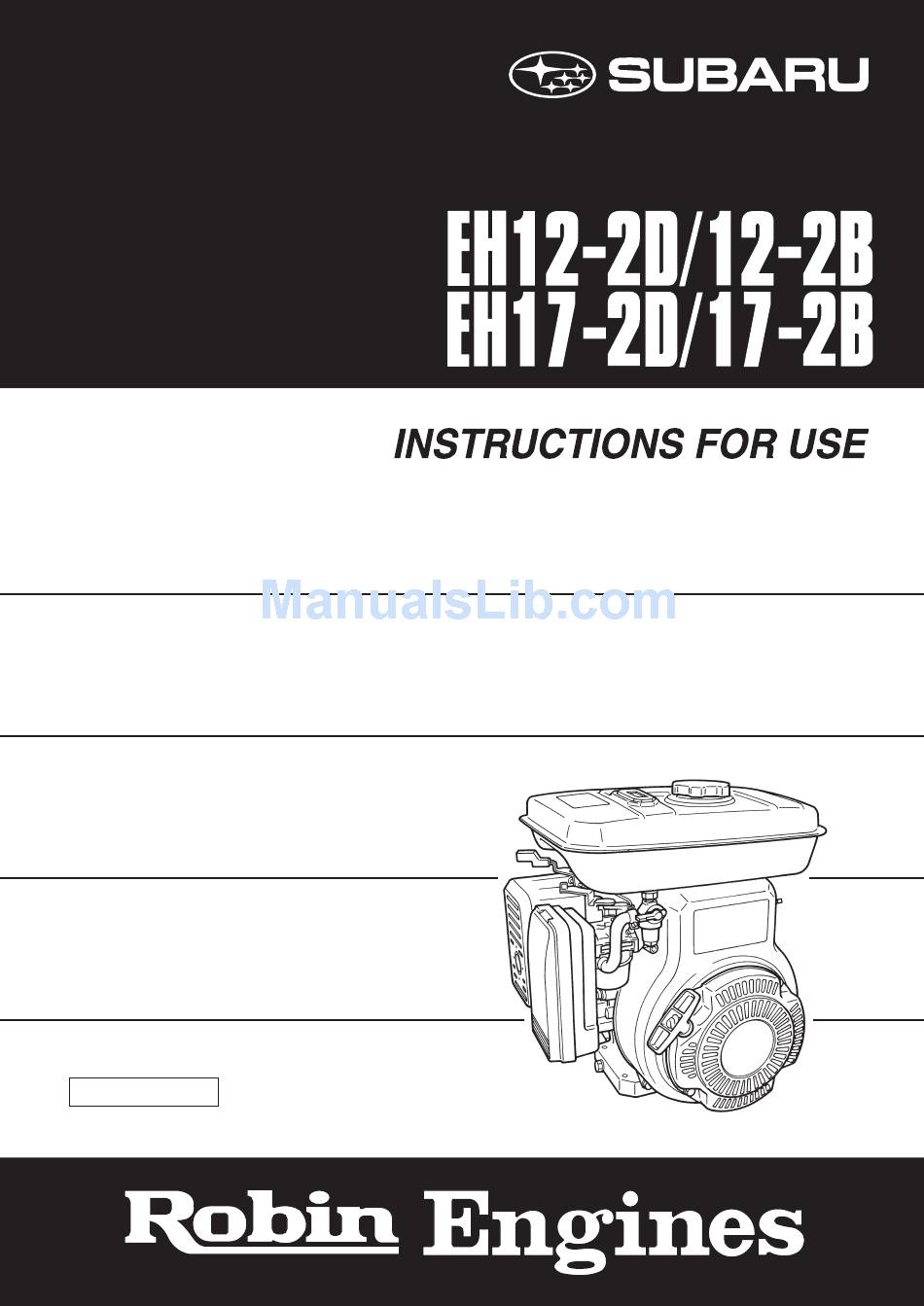

  • Page 1 2ZZ9020127...
  • Page 2 (California Air Resources Board) emission regulations in the U.S.A. NOTICE To the engines/generators exported to and used in the countries other than the U.S.A., warranty service shall be performed by the distributor in each country in accordance with the standard Robin engine/generator warranty policy as applicable.

  • Page 3: Federal Emissions Component Defect Warranty

    (ii) Air filter. OBTAINING WARRANTY SERVICE To obtain warranty service, take your engine to the nearest authorized Robin America service dealer. Bring your sales receipts indicating date of purchase for this engine. The service dealer authorized by ROBIN AMERICA will perform the necessary repairs or adjustments within a reasonable amount of time and furnish you with a copy of the repair order.
  • Page 4 These receipts and maintenance records should be transferred to each subsequent owner of the engine. ROBIN AMERICA reserves the right to deny warranty coverage if the engine has not been properly maintained. Warranty claims will not be denied, however, solely because of the lack of required maintenance or failure to keep maintenance records.
  • Page 5 SPECIFICATION and SERIAL NUMBER of your engine. Please fill in the following blanks after checking the specification number on your engine. For your nearest ROBIN distributor (and/or dealer), you are able to check at our ROBIN website of the following URL; http://www.fhi.co.jp/robin/distri/text2/f_dist_e.htm...

  • Page 6: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTIONS ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 1 2.
  • Page 7 SYMBOLS Read the owner's manual. Stay clear of the hot surface. Exhaust gas is poisonous. Do not operate in an unventilated area. Stop the engine before refueling. Fire, open flame and smoking prohibited. Plus ; On (Run) positive polarity Off (Stop) Battery Engine start Engine oil...

  • Page 8: Safety Precautions

    1. SAFETY PRECAUTIONS Please make sure you review each precaution carefully. EXHAUST PRECAUTIONS Never inhale exhaust gasses. ● They contain carbon monoxide, a colorless, odorless and extremely dangerous gas which can cause unconsciousness or death. Never operate the engine indoors or in ●...
  • Page 9 PROTECTIVE COVER Place the protective covers over ● the rotating parts. If rotating parts such as the drive shaft, pulley, belt, etc. are left exposed, they are potentially hazardous. To prevent injury, equip them with protective covers or shrouds. Be careful of hot parts. ●...
  • Page 10 Be careful of fuel spillage when ● transporting the engine. Tighten the fuel tank cap securely and close the fuel strainer cock before transport. Do not move the engine while in ● operation when it has been removed from the equipment. Keep the unit dry (do not operate it in ●...

  • Page 11: Components

    2. COMPONENTS - 4 -...

  • Page 12: Pre-Operation Checks

    3. PRE-OPERATION CHECKS CHECK ENGINE OIL Before checking or refilling engine oil, Oil gauge be sure the engine is located on a stable, level surface and stopped. Do not thread the gauge into oil filler ● to check oil level. Upper level If the oil level is below the lower level ●...

  • Page 13: Electric Starter Models

    4. ELECTRIC STARTER MODELS PARTS TO BE PREPARED Use a battery rated 12V-24AH or larger. ● Use a proper cable and ground wire ● to connect battery. BATTERY WIRE GAUGE CABLE CABLE AWG (BS) LENGTH DIA. Less than 7.3 mm AV15 1.5 m 1.5 m...

  • Page 14: Wiring Diagram

    WIRING DIAGRAM SWITCH CABLE If a remote key switch is used, select wires of proper gauge to connect it and magnetic switch of the engine. WIRE GAUGE CABLE CABLE LENGTH DIA. AWG (BS) Less than 1.5 m 1.5 mm AV1.25 1.5 to 3 m 1.9 mm 3 to 5 m...

  • Page 15: Operating Your Engine

    5. OPERATING YOUR ENGINE NOTE Following operating method is for the STD type speed control lever. As to the fixed type speed control lever (exp. Generator spec.), do not move it otherwise the generator component such as voltage regulator may be damaged. STARTING CHOKE LEVER STOP SWITCH...

  • Page 16: Speed Control Lever

    RUNNING SPEED CONTROL LEVER KEY SWITCH (OPTIONAL) Insert the key into the key slot and set it at the" I " (ON) position. Turning it to the right (START position) starts the engine. After the engine starts, set the Do not operate the electric starter ●...

  • Page 17: Stop Switch

    STOPPING KEY SWITCH SPEED CONTROL LEVER (OPTIONAL) Set the key switch to "O" (STOP) position. FUEL COCK Set the speed control lever at the low speed position and allow the engine to run at low speed for 2 or 3 minutes before stopping. Close the fuel cock.
  • Page 18 STOPPING ENGINE WITH THE FUEL COCK Close the fuel cock and wait for a while until the engine stops. Avoid to let the fuel remain in the carburetor over long periods, or the passages of the carburetor may become clogged with impurities, and malfunctions may result. If your engine has an electric starter, set the key switch to the "O"(STOP) position after stopping the engine.

  • Page 19: Easy Troubleshooting

    6. EASY TROUBLESHOOTING WHEN ENGINE WILL NOT START: Perform the following checks before ● you take the engine to your Robin dealer. If you still have trouble after completing ● the checks, take the engine to your nearest Robin dealer.
  • Page 20 3. The ignition system is faulty if there is no spark with a new spark plug. Take your engine to your nearest Robin dealer. NOTE The engine with oil sensor will stop automatically when the oil level falls below the prescribed limit.

  • Page 21: Oil Sensor Instructions (Optional)

    7.OIL SENSOR INSTRUCTIONS (OPTIONAL) Is your oil sensor OK ? The engine will stop automatically when the oil level falls below the safety limit. The engine cannot be started unless the level is raised above the prescribed limit. RESTARTING Fill the crankcase with oil up to the ●...

  • Page 22: Spark Arrester (Optional)

    8. SPARK ARRESTER (OPTIONAL) In a dry or wooded area, it is recommendable to use the product with a spark arrester. Some areas require the use of a spark arrester. Please check your local laws and regulations before operating your product. The spark arrester must be cleaned regularly to keep it functioning as designed.

  • Page 23: Maintenance Schedule

    9. MAINTENANCE SCHEDULE MAINTENANCE, REPLACEMENT, OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY NONROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL. DAILY INSPECTION Before running the engine, check the following service items. Enough gasoline Excessive vibration,noise Clean air cleaner element Safe surroundings Enough clean engine oil...
  • Page 24 Periodic Maintenance Schedule table MS2222 Every Every Every Every Every 1000 8 hours 50 hours 200 hours Maintenance Items hours (Daily) (Weekly) (Monthly) hours Clean engine and check bolts and nuts ● (Daily) ● (Refill daily up to upper level) Check and refill engine oil ●...

  • Page 25: How-To" Maintenance

    10. "HOW-TO" MAINTENANCE INSPECTING THE SPARK PLUG Clean off carbon deposits on the spark ● plug electrode using a plug cleaner or wire brush. Check electrode gap. Adjust as follows. ● Use a proper spark plug : ● ELECTRODE GAP Model Type Electrode gap...
  • Page 26 CLEANING FUEL STRAINER (NO SMOKING) Inspect fuel strainer for water and dirt. ● To remove water and dirt, close the ● fuel cock and remove the strainer cup. After removing dirt and water, wash the ● strainer cup with gasoline. Reinstall securely to prevent leakage.
  • Page 27 CHECKING BOLTS, NUTS AND SCREWS Retighten loose bolts and nuts. Check for fuel and oil leaks. Replace damaged parts with new ones. Keep safety in your mind. FUEL HOSE REPLACEMENT WARNING Take extreme caution when replacing fuel hose ; gasoline is flammable.

  • Page 28: Preparations For Storage

    11. PREPARATIONS FOR STORAGE DISCHARGE FUEL (NO SMOKING !) Remove the strainer cup, place the ● strainer over a container and open the strainer cock to discharge fuel from the fuel tank. Remove the carburetor float chamber ● bolt from the bottom and discharge fuel from the carburetor.

  • Page 29: Specifications

    12. SPECIFICATIONS MODEL EH12-2D EH12-2B EH17-2D EH17-2B Type Air-cooled, 4-cycle single cylinder, overhead valve, gasoline engine Displacement 1.8 / 3000 1.8 / 1500 2.6 / 3000 2.6 / 1500 Continuous Output (2.5 / 3000) (2.5 / 1500) (3.5 / 3000) (3.5 / 1500) kW/min (HP/rpm)
  • Page 30 ISSUE EMD-EU2297 PRINTED IN JAPAN December 2006...

This manual is also suitable for:

Eh17-2d/17-2bEh25-2dEh25-2b
