ABTRONIC™ CORE Fitness Belt USER MANUAL PAGE 1 USER MANUAL...
Page 2

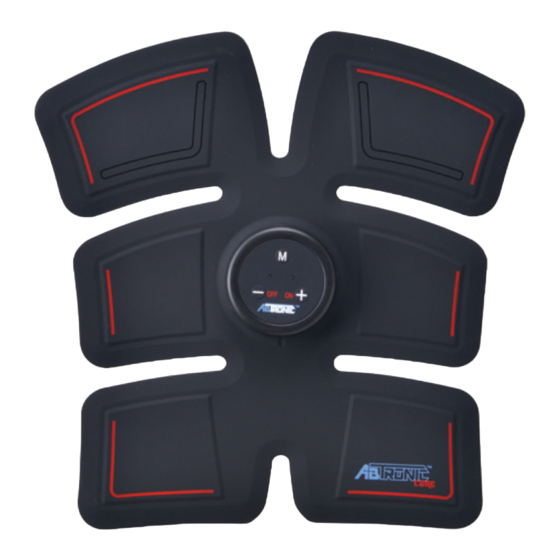

PAGE 2 ABTRONIC™ CORE Fitness Belt USER MANUAL Congratulations on your choice of the Abtronic™CORE Fitness Belt. Please read this manual before first use. CONTROLS PROGRAM Button to change 6 programs LED Light 2 LED Light 1 ...
Page 3
3. MODE: This button “M” is used to select one of the 6 preprogrammed exercise modes. The setting is indicated by the color and location of the two LED lights on the unit. The Abtronic™CORE unit has the following 6 exercise modes: Program LED 1...
PAGE 4 ABTRONIC™ CORE Fitness Belt USER MANUAL OPERATION BATTERY 1. Open the battery door by pushing it in the direction of the arrow: 2. Insert one piece CR 2032 Lithium battery into the battery compartment. The positive “+” pole of the...
ABTRONIC™ CORE Fitness Belt USER MANUAL PAGE 5 BASIC USE 1. Attach the Abtronic™CORE control unit onto the X silicon pad holder. Insert the controller by aligning the marking on the controller case with the holder: Insert the control unit aligning it with the shorter marking...
Page 6
2. Stick the gel pads onto each of the 6 conductive areas on the rear side of the Abtronic™CORE stimulation pad. If there is an air bubbles under the gel pads use a finger...
Page 7
Do not peel off the gel pad affixed to the electrode, until you need to replace them with new ones! 4. Gel Pad Storage After use, stick the Abtronic™CORE pad with the gel pads attached onto the storage board. This prevents the gel pads getting dirty, while not in use.
Page 8
Otherwise this may cause pain or irritation. • Remove any remaining gel on the electrodes. ABTRONIC™CORE PLACEMENT: Abtronic™CORE was design to be used to effectively target individual muscle groups on your abs. Place it on the center of your abdominal muscles (your stomach area).
Page 9
ABTRONIC™ CORE Fitness Belt USER MANUAL PAGE 9 Control Unit: 1. Press the ON/+ button to power up the Abtronic™CORE control unit. 2. Select the Mode by pressing the “Mode” button repeatedly. Every time you press the “Mode” button a different LED or combination will light up indicating one of the 6 preprogrammed routines.
Page 10
PAGE 10 ABTRONIC™ CORE Fitness Belt USER MANUAL Push ON/+ button 10 x to increase intensity 10 steps 0 <> 1 <> 2 <> 3 <> 4 <> 5 <> 6 <> 7 <> 8 <> 9 <> 10 Push OFF/- button 10 x to decrease intensity 10 steps 4.
Page 11
Please turn the unit off before moving it to a new position. The Abtronic™CORE is a great way to exercise your muscles. It may take a few moments of practice for locating it correctly and applying the ideal pressure that provides...
ABTRONIC™ CORE Fitness Belt USER MANUAL Important Notes If there is no gel pad on the Abtronic™CORE, or if it is not placed tightly against the skin, an uncomfortable tingling sensation can occur. This can also happen if the body has built up excessive oils on the skin.
ABTRONIC™ CORE Fitness Belt USER MANUAL PAGE 13 TAKING CARE OF YOUR UNIT The Abtronic™CORE is made of quality materials. The only maintenance required with the Abtronic™CORE is to clean the conductive area gently, while you are replacing the gel pads, with a wet cloth and soapy water, further the battery needs to be replaced.
Q. Can this machine be used for all ages? A. Yes - absolutely. Abtronic™CORE is not age dependent and can be used at any age. However, the very elderly and children should use it under supervision and, keep the intensity low.
Page 15
Abtronic™CORE into your program. Q. I am getting a prickling sensation but no contraction. A. Move the Abtronic™CORE slightly to find the right trigger points that give maximum contractions and the most pleasant feeling. Try increasing the intensity. This could also be caused because either the gel pad worn or dirty, or is not tightly placed against the skin.
Page 16
undiagnosed pain syndromes and hemorrhagic diseases. Abtronic™CORE should NOT be used on injured or otherwise impaired muscles Abtronic™CORE should NOT be used on the heart area. WARNINGS 1. The long-term of chronic electrical stimulation are unknown. 2. Apply electrodes ONLY to normal, intact, clean skin.
Page 17
4. Never use the Abtronic™CORE while driving, operating machinery or during activities in which involuntary muscle contractions may endanger the user or others. 5. Do not use the Abtronic™CORE in the bath or shower 6. Persons with suspected heart problems or epilepsy should obtain appropriate medical advice.
Recommended Age The Abtronic™CORE is not suitable to use for infants or toddlers, it is suitable to use at any other age, however, the very elderly and children should use it under supervision...
ABTRONIC™ CORE Fitness Belt USER MANUAL PAGE 19 TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION LEDs do not Batteries are Install batteries light up at all not installed Batteries Check polarity are installed “+” sign incorrectly.
Page 20
PAGE 20 ABTRONIC™ CORE Fitness Belt USER MANUAL LEDs light up, Intensity set to Increase but nothing low level intensity by occurs pushing the up button Worn or dirty Make sure the gel pads. gel pads are...
ABTRONIC™ CORE Fitness Belt USER MANUAL PAGE 21 SPECIFICATION Channel: Single Channel Program Modes 6 Program Modes Intensity Control: Adjustable 0-28uA, Max output 28uA peak to peak into 10k ohm load each channel. Wave Form Asymmetrical Bi-Phase Square Pulse Out Voltage Adjustable 0-168V, Max output 168V peak to peak into 10k ohm load each channel.
