Spark modern fires 512 Installation & Operation Manual

Built-in direct vent gas fireplace
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

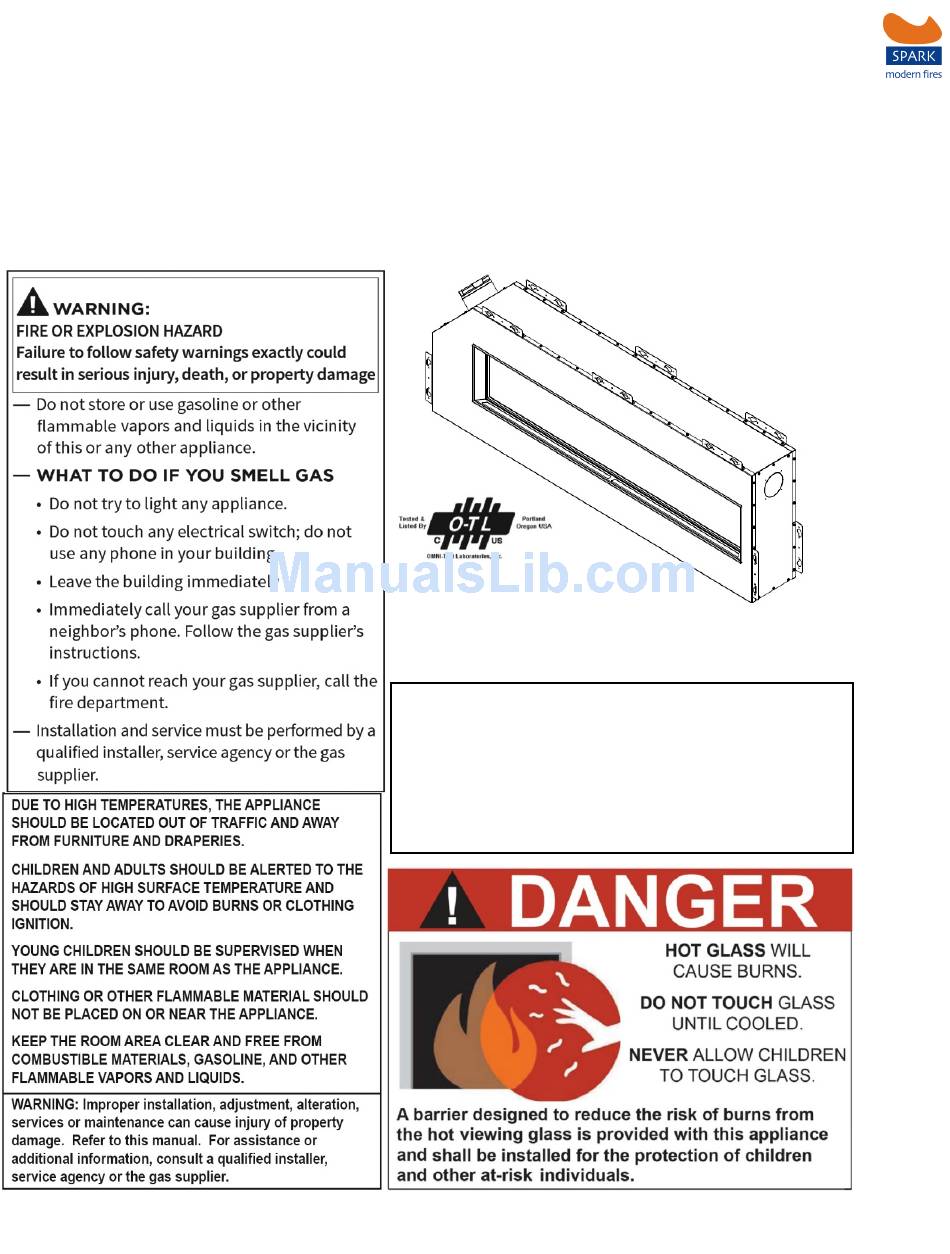

SPARK MODERN FIRES
512/612
BUILT-IN DIRECT VENT GAS FIREPLACE
INSTALLATION   &   O PERATION   M ANUAL
Report   # 0361GF006S
Ce manual est disponsible en Francais sur demande.
This appliance may be installed in an aftermarket, permanently
located, manufactured home (USA only) or mobile home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases, unless a certified kit is used.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 512 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spark modern fires 512

Summary of Contents for Spark modern fires 512

  • Page 1 SPARK MODERN FIRES 512/612   BUILT-IN DIRECT VENT GAS FIREPLACE INSTALLATION   &   O PERATION   M ANUAL   Report   # 0361GF006S   Ce manual est disponsible en Francais sur demande. This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information Model Descriptions Specifications Clearances Installation Information Venting Final Assembly Lighting & Operation Remote Handset Operation Gas Conversion Maintenance Maintenance Log Replacement Parts List Control Schematic Installation Record Warranty Information WE STRONGLY SUGGEST THAT YOU READ THIS MANUAL THOROUGHLY BEFORE BEGININNG THE INSTALLATION OF THE DIRECT VENT GAS FIREPLACE.

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1. A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 or when such a standard is not applicable, the Standard for Manufactured Home Installations, ANSI/BCSBCS A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.
  • Page 4 IMPORTANT SAFETY INFORMATION Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that the control compartments, burners and circulating air passageways of the appliance be kept clean.

  • Page 5: Model Descriptions

    MODEL DESCRIPTIONS 512 VU-THRU MODEL NO. BI-60-ST 612 VU-THRU MODEL NO. BI-72-ST...

  • Page 6: Specifications

    Gas Fireplace Heaters and CAN/CGA-2.17-M91 (R2014), Gas-Fired Appliances for Use At High Altitudes. This SPARK MODERN FIRES Gas Fireplace is approved for installation at elevations up to 2000 feet in the U.S. and 1370 meters (4500 feet) in Canada without change. If your installation is at an elevation greater than these, consult with the local authority having jurisdiction for gas product installations to determine their specific requirements for high altitude installations.
  • Page 7 • It is recommended that the pilot flame be turned off if the appliance will not be in use for an extended period of time. • This appliance is equipped for use with the fuel type indicated on the rating plate. Field conversion is only permitted with a conversion kit supplied by SPARK MODERN FIRES.
  • Page 8 SPECIFICATIONS 512 VU-THRU 612 VU-THRU Dimension “A” 29” (737mm) 29” (737mm) Dimension “B” 73.625” (1,870mm) 87.625” (2,226mm) Dimension “C” 59.25” (1,505”) 73.25” (1,861mm) Dimension “D” 12.75” (324mm) 12.75” (324mm) Dimension “E” 2.70” (69mm) 2.70” (69mm) Dimension “F” 11.30” (287mm) 11.30” (287mm) Dimension “G”...

  • Page 9: Clearances

    CLEARANCES 512 VU-THRU 612 VU-THRU Sides 4” (102mm) 4” (102mm) Floor 1/2” (13mm) 1/2” (13mm) Back 12” (305mm) 12” (305mm) Front 12” (305mm) 12” (305mm) Clearance around vent pipe 1.5” (38mm) 1.5” (38mm) The image above shows a typical installation.
  • Page 10 R factor of at least .37, with a minimum thickness of ½” (13mm). • This framing guide is just an example of the many ways in which a SPARK MODERN FIRES Fireplace can be installed. You may need to customize this framing design to allow for things such as doors, windows, countertops, structural frame members or local code requirements.
  • Page 11 CLEARANCES WARNING Follow these instructions carefully to ensure safe installation. Failure to follow instructions exactly can create a fire hazard. • The combustible area above the facing must not protrude more than ¾ (19mm) from the facing; if it does, it is considered a mantel and must meet the mantel requirements on the following page.

  • Page 12: Installation Information

    The following actions will void the warranty on your fireplace: • Installation of any damaged venting component. • Unauthorized modification of the venting system. • Installation of any component part not manufactured or approved by SPARK MODERN FIRES Contemporary Fires. • Installation other than permitted by these instructions.
  • Page 13 AND/OR ALL VENTING DESIGN INSTRUCTIONS MUST REMAIN WITH THE STOVE AT THE COMPLETION OF THE INSTALLATION. ATTENTION INSTALLERS: Mark below which venting system was used in the installation. These instructions must remain with the SPARK MODERN FIRES Gas Fireplace Installation & Operation Manual. O Simpson DuraVent GS/PRO®...

  • Page 14: Venting

    Each gas appliance must use a separate vent system. Do not use common vent systems. INSTALLATION PLANNING The 512 VU-THRU, and 612 VU-THRU use 4x6 Direct-vent pipe. There are two basic types of direct-vent installation: Horizontal Termination •...
  • Page 15 VENTING Install a Simpson Duravent (Or equivalent) wall thimble, part number 46DVA-WT (not supplied by SPARK MODERN FIRES), where the pipe passes through a wall to retain any insulation in the wall and to maintain proper clearances. If the wall being penetrated is constructed of non-combustible material only (i.e., Masonry block or concrete), the wall thimble is not required;...
  • Page 16 VENTING This SPARK MODERN FIRES Gas Fireplace has been tested and listed for installation with 4” X 6 5/8” M&G DuraVent GS/Pro®, Selkirk Direct-Temp®, Security Secure Vent™, AmeriVent Direct™, Metal Fab Direct Vent and ICC EXCELDirect venting components. Although you may use the pipe components (straight pipe, elbows, etc.) from any of the listed manufacturers, you may only use the vent terminations (caps)
  • Page 17 VENTING SPARK MODERN FIRES flue restrictor kit, part #11317 Some vent configurations may create excess draft within the fireplace. Excess draft can cause issues such as a rapid, or “nervous” flame picture, undesirable flame color, or pilot lifting which may prevent the fireplace from staying lit.
  • Page 18 Use this worksheet to determine the equivalent horizontal run for use with the vent charts on the next page. The information contained within this worksheet may also be useful during installation or in the event that you need technical assistance from SPARK MODERN FIRES. A. FUEL TYPE...

  • Page 19: Final Assembly

    FINAL ASSEMBLY Allow the screen to rest in the fireplace SCREEN REMOVAL: opening, confirm that the latches are in Lift up on the lower air panel to remove it their “home” position. from the fireplace opening. Lift the screen up so that the bottom of Remove the left and right side panels by the screen clears the bottom of the lifting up and toward you.
  • Page 20 FINAL ASSEMBLY 4. Angle the glass assembly toward you from FINAL ASSEMBLYGLASS REMOVAL: the bottom to remove. 1. With the screen removed, loosen the ¼- 20 bolts along the top edge of the glass frame using a 7/16 socket. Refer to the next page for instructions on burner media placement.
  • Page 21 FINAL ASSEMBLY PLACING THE BURNER GLASS MEDIA The burner glass media poly-bag that you set aside when you unpacked the fireplace contains the correct amount of glass material to cover the burner. DO NOT add any additional media to the media supplied with your fireplace.

  • Page 22: Lighting & Operation

    LIGHTING & OPERATION WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. When lighting this appliance, follow these instructions exactly. A. This appliance is equipped with an ignition device that automatically lights the pilot. Do not try to light the pilot by hand.
  • Page 23 LIGHTING & OPERATION OPERATING YOUR FIREPLACE FOR THE FIRST TIME When operating your new fireplace for the first time, some vapors may be released due to the curing compounds used in the manufacture of the appliance. They may cause a slight odor and could cause the flames to be the full height of the firebox, or even slightly higher, for the first few hours of operation.

  • Page 24: Remote Handset Operation

    GV60 Remote Control supplied with your GV60 Remote Control shown in this Manual fireplace SPARK MODERN FIRES REMOTE HANDSET PAIRING • Press and hold the Reset button on the Receiver mounted within your fireplace. Initially you will hear a short beep, continue to hold the Reset button until you hear a second longer beep.
  • Page 25 Remote Control Operation section for a description of this feature. NOTE: Before using the remote control system for the first time, the receiver and the handset are synchronized at the factory. See the section SPARK MODERN FIRES Remote Handset Pairing Set-up on page of this manual if the receiver and handset lose synchronization.
  • Page 26 REMOTE HANDSET OPERATION...
  • Page 27 REMOTE HANDSET OPERATION...
  • Page 28 REMOTE HANDSET OPERATION...
  • Page 29 REMOTE HANDSET OPERATION...
  • Page 30 REMOTE HANDSET OPERATION...

  • Page 31: Gas Conversion

    GAS CONVERSION These appliances are field convertible between Propane to Natural gas when a SPARK MODERN FIRES gas conversion kit is used. Gas conversions must be performed by a qualified service technician. PART # DESCRIPTION SPARK MODERN FIRES CONVERSION KIT CONTENTS...
  • Page 32 Check all connections/pressure taps for leaks. MODEL HIGH PRESSURE (NG) LOW PRESSURE (NG) HIGH PRESSURE (LPG) LOW PRESSURE (LPG) 512 VU-THRU 3.9” w.c. / 1.0kPa 1.9” w.c. / 0.47kPa 10.0” w.c. / 2.5kPa 4.7” w.c. / 1.17kPa 612 VU-THRU 3.9” w.c. / 1.0kPa 2.2”...

  • Page 33: Maintenance

    Follow the instructions on page 22 of this manual when replacing the burner media on the burner top. AIR FLOW The SPARK MODERN FIRES Gas Fireplace utilizes a convection air heat exchange system to maximize heat delivered from the fireplace. It is important that air flows freely through the convection air system and out the air grills.

  • Page 34: Maintenance Log

    MAINTENANCE LOG We strongly recommend that you keep a log of the regular maintenance that is performed on your fireplace. We have provided the forms below to make it easy. Simply ask your qualified service per-son to fill out one of the maintenance record forms below, each time the fireplace is serviced. This will help insure that all of the required maintenance procedures have been completed, at least annually.
  • Page 35 MAINTENANCE LOG CONT.

  • Page 36: Replacement Parts List

    M46-704 Remote Handset (Maxitrol) M46-507 Gas Valve (Maxitrol) M46-515 Module for Additional Function 36-560 Replacement Blower 36-531 512 VU-THRU - REPLACEMENT PARTS PART NAME PART NAME Burner Orifice (NG) NGBI-60 Firebox Enamel Panel - End 60BI-201 Burner Orifice (LP) LPBI-60 Burner Module (NG) (2 req.)

  • Page 37: Control Schematic

    Caution: Label all wires prior to disconnection when servicing the controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. For replacement parts and customer service contact your SPARK MODERN FIRES dealer or: SPARK MODERN FIRES (T) 203-791-2725 Info@sparkfires.com...

  • Page 38: Installation Record

    INSTALLATION RECORD The installer should complete the form below that describes the details of the installation. Having this written record of installation information available will greatly expedite trouble-shooting should any problem arise with your stove. The installer should keep a duplicate of this form for their records. Date Purchased: _____________________________________________ Dealer:...

  • Page 39: Warranty Information

    Spark Modern Fires will, at its option, replace or repair the defective components at no charge to the original owner. Spark Modern Fires will also pay for reasonable labor cost incurred in replacing or repairing such components for a period of two years from date of installation. Any products presented for warranty repair must be accompanied by a dated proof of purchase.
  • Page 40 RECORD YOUR PRODUCT INFORMATION Model #:___________________________ Serial #______________________ Date Purchased:____________________ Date Installed___________________ V1 / 11/1/2016...
