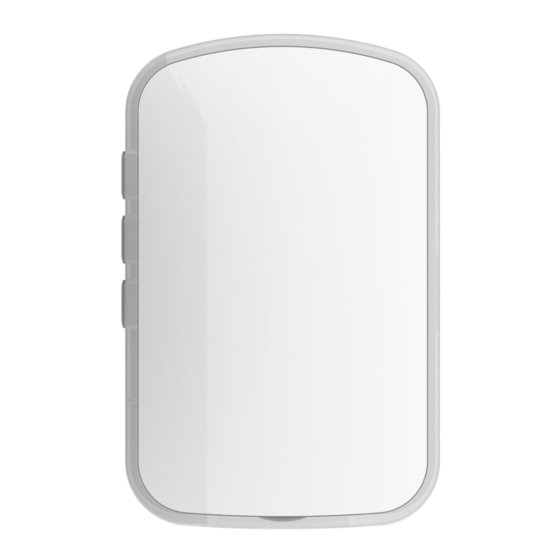

- Page 1 PSC05 Z-Wave Gateway Add device Remove device Micro SD card slot 5Vdc power Assoc. Reset...
-
Page 2: Getting Started
Power up the gateway Power up the gateway to any 5V DC USB port and wait until red LED on. And connect by using SSID in Wi-Fi connection of your mobile phone. Default SSID : PSC05 : XX:XX:XX:XX:XX:XX Default Password : 12345678... - Page 3 Launch the " Home Mate 2” App, press the “ Local search “ button connecting to the PSC05 WiFi gateway and retrieve the gateway’s UID. Or you can scan the QR code directly to retrieve the gateway UID and then key in the default password “ 888888”.
- Page 4 Getting Started 4. Gateway Connect To Internet To connect the PSC05 gateway to your local WiFi router, please go to setting page Setting page→Gateway Informaion→Wi-Fi network→STA mode→seclect the SSID of the preferred router Setting page Settings Gateway Information→WiFi network STA mode...
- Page 5 Getting Started 5. APP Connect to Gateway Let your mobile phone connect to inernet and the select gateway that you wnat to connect by long press icon of home mate2 as below. Press Here connect to Gateway AIEV8XLFH193IKLAOCUH PSC05 Name...
- Page 6 Getting Started Reset function a. If you forget password or want to change to default status, you need process Reset. b. If Gateway setting done and you would like carry Gateway to new place, press reset button as below, Press 10s then release, Gateway will reset. Follow Getting Started step 1 again you will setting done in new place.
-
Page 7: Setup Devices
Setup Devices To add sensor devices or WiFi IP camera by pressing the “ + “ in “Devices” page Devices page Add devices Devices Select “ Include Device” → press “ START INCLUSION ” ( the gateway LED will be flashing_ as confirmation to proceed in inclusion mode) Select “Include Device”... - Page 8 Setup Devices If the sensor being included in other gateway before, please be sure to “ Exclusion” the sensor firstly before you “ INCLUSION” it to the new gateway. Here is the example to add 4 in 1 sensor to another gateway for reference. For other sensors, please refer to below “Remark”.
- Page 9 Setup Devices Once the gateway red LED blinking → Press tamper key three times within 1.5 seconds → App will show “ Device excluded” on App once completed exclusion → And then press “ START INCLUSION” within 20 seconds Device exclude Device exclude tamper key Press ”...
- Page 10 Setup Devices Method B: Press the “ remove “ button on the gateway Once the gateway red LED blinking → Press tamper key three times within 1.5 seconds → App will show “ device excluded” → Then press the “ add” button on the gateway within 20 seconds, the gateway red LED will be blinking as confirmation to start Exclusion process.
- Page 11 Setup Devices Once completed inclusion: Rooms You could appoint sensors in different rooms add new rooms by adding “+” new rooms. This block right side as name and status, click right side to control device, click left side to setup advance setting. device name device status Triggered...
- Page 12 Scenes Press the “ + “ button to add the new Scenes, you may change the scenes icon/name as you wish and select devices you would like to add. change icon change name Name Change name Name CANCEL light01 light02 add devices light03 curtain01...
- Page 13 Macros Press the “ + “ button to add the new Macros group, you may change the macros icon/name as you wish and set up the scenario with If and Then or Option criteria. change icon change name Name Then option Change name Name...
- Page 14 Settings In setting page you could retrieve App and the gateway detailed information by clicking into each option. If you would like to receive User Information the E-mail notification, please fill in your E-mail User address/password in columns shown below. 》...
-
Page 15: Advanced Function/Setting
Advanced Function/Setting Associate function: The gateway is as console to communication/control sensor devices included. However, the individual sensors could be associated to each other and communicate directly without waiting further commands from Gateway to speed up the response time. For example, you may the dimmer switch could be controlled by gateway side and also smart button. - Page 16 Advanced Function/Setting Re-configuration Function: You can change the default setting according to your demand. For example, the sensitivity default setting is 80. You may lower the sensitivity to 50 by key in below new figures. Config Default Parameter Value Sensitivity Param 0~99 Value...
