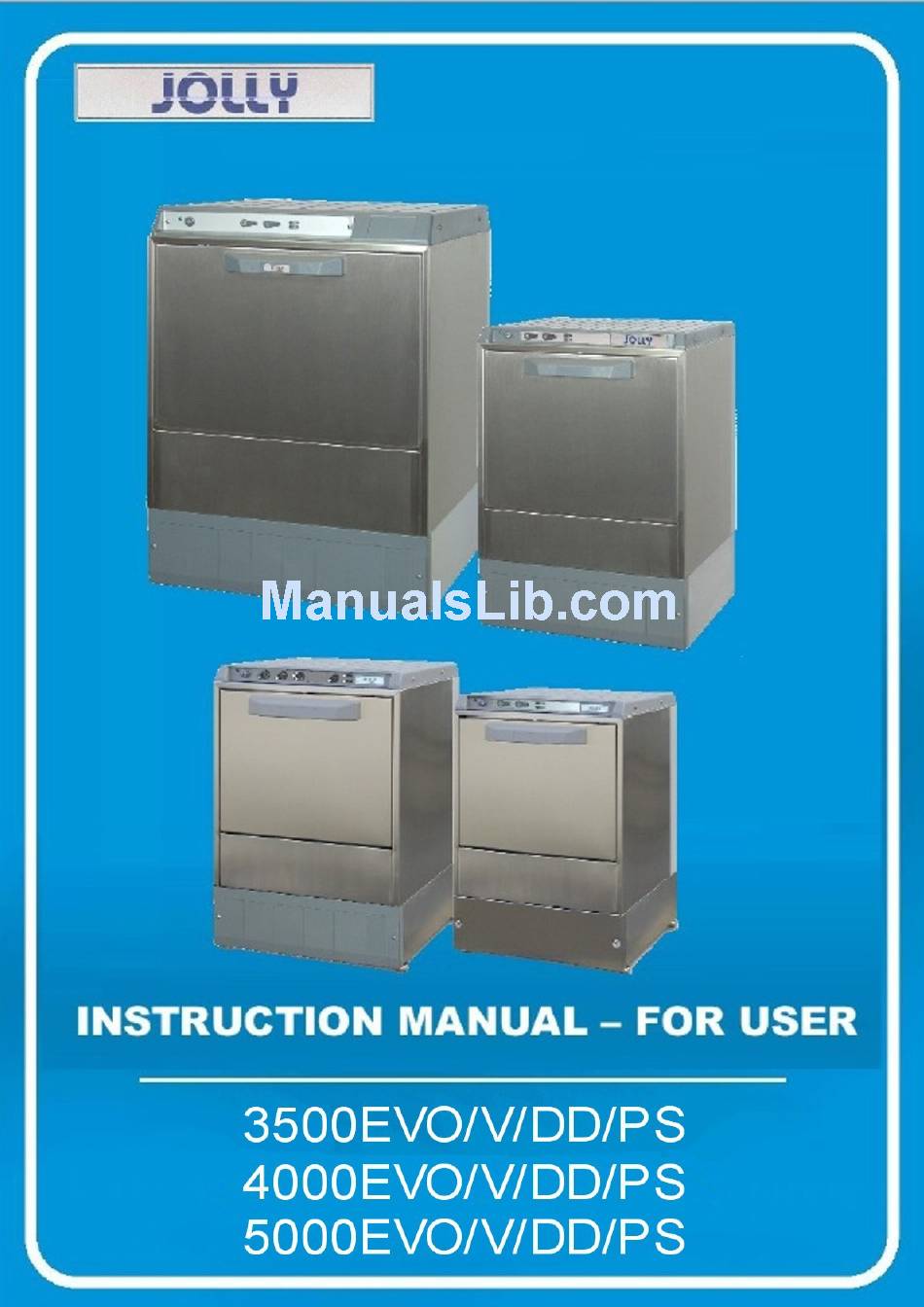

- Page 1 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL...
-
Page 2: Table Of Contents
INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL INSTRUCTION MANUAL MOD. EVO – FOR USER - ENGLISH - INDUSTRIAL GLASS AND DISHWASHER, UNDERCOUNTER TYPE LETTER TO THE USER Dear Customer, This dishwasher is a safe machine when used as designed by the manufacturer, provided that the safety devices are main- tained in good working order. -
Page 3: Machine Identification
INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL MACHINE IDENTIFICATION PLATE For any communication with the manufacturer or its service centers, always give the serial number indicated on the machine. Record below the serial number of your appliance: Model: Serial Number: Date of installation: Service: REVISION DATE... - Page 4 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL GENERAL NOTES This dishwasher is in compliance with the current provisions in force concerning safety. Improper use may cause damage to peo- ple and / or property. Before starting the machine, carefully read these instructions, they contain important safety information. This manual is an integral part of the dishwasher and must be kept with the machine.
-
Page 5: Control Panel
INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL CONTROL PANEL DESCRIPTION N° SWITCH 0/1 LIGHT 0/1 WASH CYCLE SWITCH WASH CYCLE LIGHT COLD RINSE SWITCH COLD RINSE LIGHT DRAIN SWITCH SWITCH DRAIN LIGHT WATER SOFTENER REGENERATION BUTTON WATER SOFTENER REGENERATION LIGHT TIME SELECTION TIME LIGHTS BOILER ELEMENT LIGHT WASH ELEMENT LIGHT... -
Page 6: Machine Description
INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL MACHINE DESCRIPTION The main features of an INDUSTRIAL DISHWASHER, unlike those of a DOMESTIC DISHWASHER, are different in their ability to wash large volumes of ware in a very short period of time. This requirement means that the design of an industrial ma- chine is considerably different. - Page 7 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL In case of water leaks from the machine, switch off the electrical power and close the water supply. ATTENTION For the best results from your machine, change often the water in the tank. When changing wash tank water or at the end of the day, visually check the bottom of the tank for soil and debris.
-
Page 8: User Checks
INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL USER CHECKS The following tests must be performed only by qualified personnel; Installation and commissioning; Water connection and electrical connection; Adjustment of the rinse aid dispenser and (if fitted) the detergent dispenser. The user must perform the following daily checks: ... -
Page 9: Observations Before Washing
INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL OBSERVATIONS BEFORE WASHING This machine was developed and designed especially to achieve energy savings. To further optimize the energy savings you can observe the following: Connect the machine to a hot water supply (max 50°C); ... -
Page 10: Operation
INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL OPERATION ATTENTION The fist operation of the dishwasher MUST be performed by authorized and qualified personnel who will also give in- structions concerning the machine. Open the dishwasher door and check whether the wash arms are installed. If not, install the wash arms (see Installation Manual) Verify that the suction filter pump is properly assembled. - Page 11 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL REGENERATION OF WATER SOFTENER (optional equipment) ATTENTION It is necessary to perform the regeneration of the resins depending on to the degree of water hardness and the number of wash cycles performed. The regeneration time is about 20 minutes. So, we suggest to run the regeneration when time allows. If at the end of a wash cycle, the regeneration light blinks, it is because the machine needs to run a regeneration cycle.
- Page 12 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL AUTOMATIC DRAIN PUMP (optional equipment): These models are not equipped with the "overflow" system and they should be used only when the discharge of water is placed above the water level in the tank. The drain pump automatically operates during the washing cycle while maintaining a constant water level in the tank.
-
Page 13: Cleaning
INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL CLEANING CAUTION If you need to clean the tank, avoid using steel wool, ferrous or abrasives, or liquid detergents not suitables for cleaning stainless steel. Do not the use chlorine-based substances to avoid oxidizing the stainless steel (for example, bleach, or similar). Clean the tank wearing rubber gloves. - Page 14 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL WASH / RINSE ARMS - ROTATING TYPE ATTENTION When clearing always wear rubber gloves Unscrew the centre spindle and lift out the wash arm. Unscrew the nuts (A1-A2) and remove the jets (B1-B2). Immerse the jets in a solution containing some liquid descaling product (example: Vinegar) Rinse with water.
- Page 15 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL RINSE ASSEMBLY ATTENTION When clearing always wear rubber gloves. Carefully unscrew the jets and take out the rinse jet spinners. Immerse the jets in a solution containing some liquid descaling product (for ex. Vinegar). Rinse with water. If necessary clean the jets with a pin. Before replacing the jets and the spinners run a filling/draining cycle in order to clean the rinse assembly from soil or debris.
-
Page 16: Information For Users
INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL STATEMENT OF COMPLIANCE WITH EUROPEAN DIRECTIVE 2002/95/CE RoHS In compliance with what is expressly required by European Directive 2002/95/EC (Restriction of Hazardous Substances in electrical and electronic equipment - RoHS) we declare full compliance with the Directive in question in the time and manner prescribed. - Page 17 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL - 17 -...
- Page 18 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL - 18 -...
- Page 19 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL - 19 -...
- Page 20 INDUSTRIAL GLASS AND DISHWASHER—USERS MANUAL LIBR_B_11/12 - 20 -...
