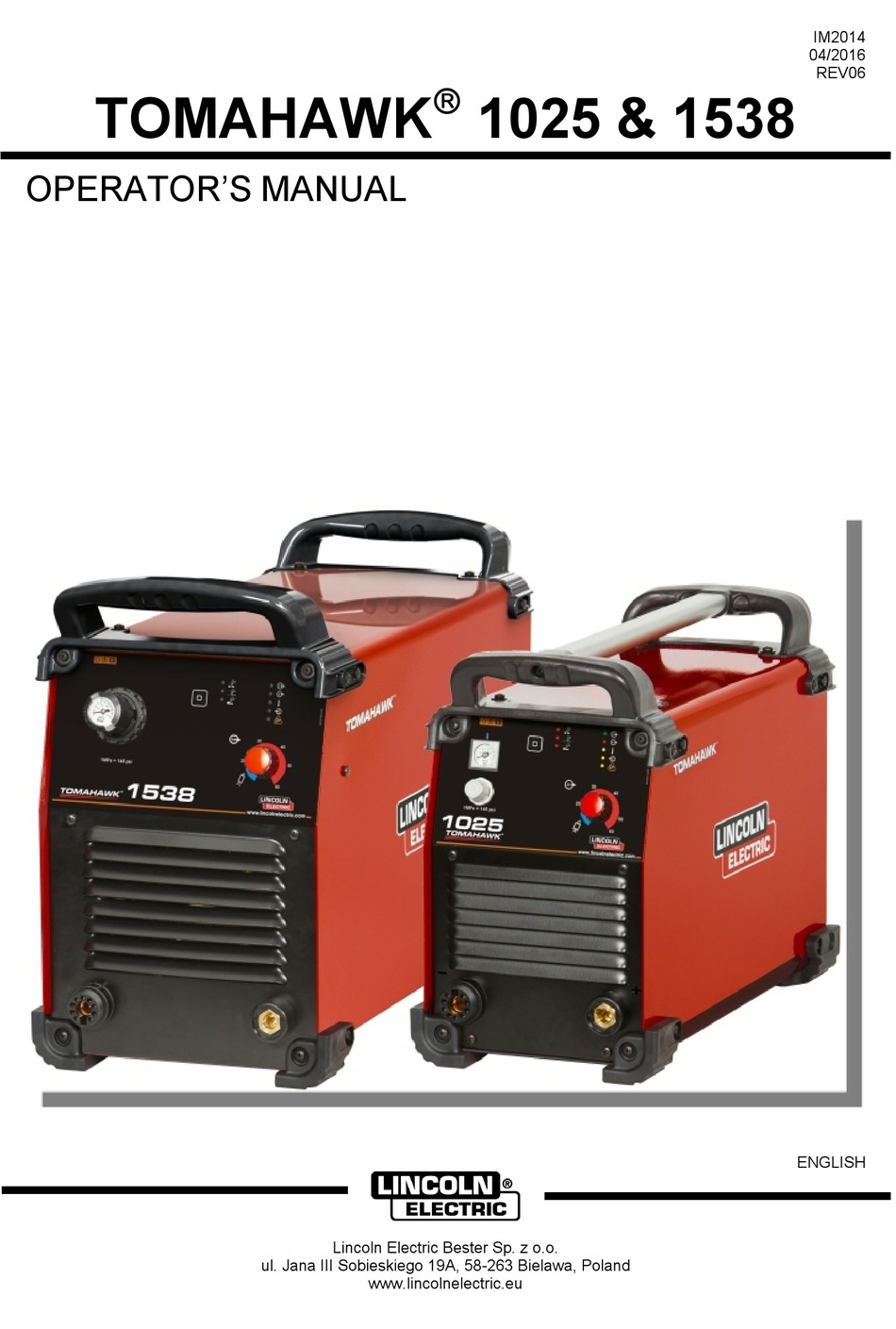

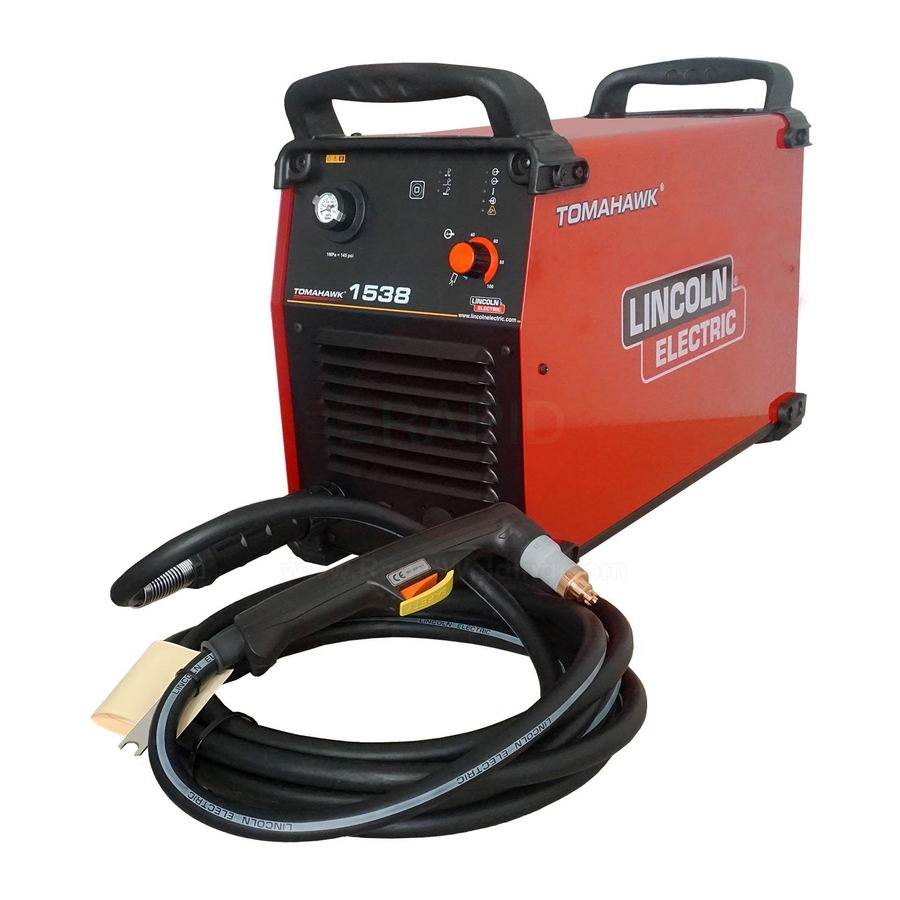

- Page 1 IM2014 04/2016 REV06 TOMAHAWK 1025 & 1538 OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Declaration Of Conformity
2014/35/EU , 2014/30/EU and has been designed in compliance with the following standards: EN 60974-1:2012; EN 60974-10:2014 20.04.2016 Piotr Spytek Operations Director Lincoln Electric Bester Sp. z o.o., ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland 07/11 English English... -
Page 3: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code &... -
Page 4: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. -
Page 5: Installation And Operator Instructions
The plasma arc can cause injury and burns. Keep your body away from nozzle and plasma arc. Turn off power before disassembling torch. Do not grip material near cutting path. Wear complete body protection. Electric shock from torch or wiring can kill. Wear dry insulating gloves. -
Page 6: Output Connections
Commands Front Panel lights up. If one or some LED remains OFF, contact the nearest technical service center or Lincoln Electric and report the LED Status WARNING found on the machine Front Panel. TORCH PROTECTION: The torch delivered with the... - Page 7 Please contact the nearest be drawn inside the machine technical service center or Lincoln Electric and report the and reduces power LED Status found on the machine Front Panel. consumption. When the machine is turned ON the fan will turn ON.
- Page 8 WARNING recommended to contact the nearest technical service A clean, dry primary gas (air or nitrogen) must be center or Lincoln Electric. Maintenance or repairs supplied to the machine. A pressure setting above performed by unauthorized service centers or personnel 7,5bar could damage the torch.
-
Page 9: Cutting Speed
Cutting Speed The cutting speed is a function of: Thickness and of material to be cut. Value of set current. The current setting affects the quality of the cut edge. Geometrical shape of the cut (whether straight or curved). In order to provide indications on the most suitable setting, the following table was established, based on tests performed on an automatic test-bench;... -
Page 10: Electromagnetic Compatibility (Emc)
Lincoln Electric. This equipment does not comply with IEC 61000-3-12. If it is connected to a public low- voltage system, it is responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator if necessary, that the equipment may be connected. -
Page 11: Technical Specifications
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine.
