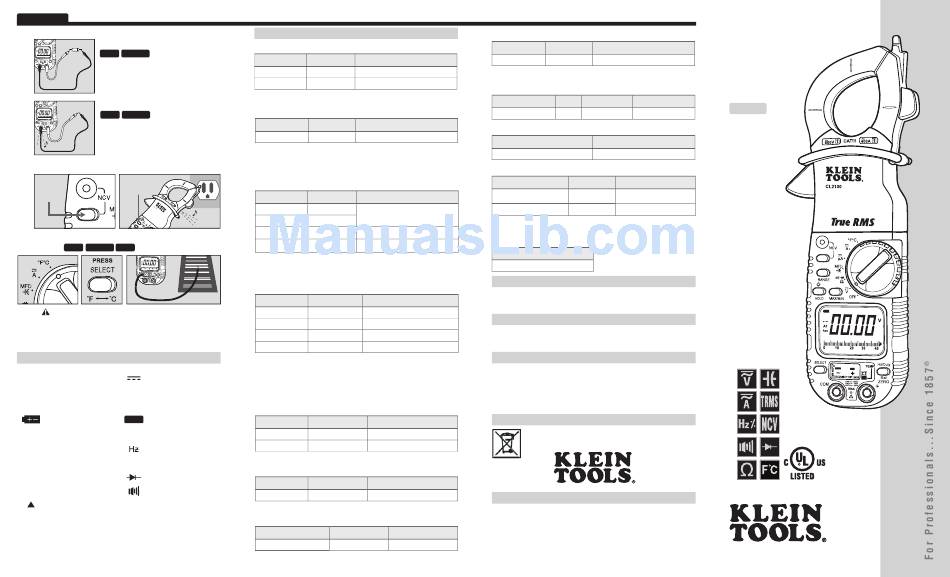

Klein Tools cl2100 Instruction Manual

ENGLISH
Diode Features:
HOLD MAX/MIN
0 10 20 30 40
Display shows:
• Forward voltage drop if forward biased.
• "O.L." if reverse biased.
Continuity Features:
HOLD MAX/MIN
0 10 20 30 40
• Display shows resistance.
• Buzzer sounds if less than 30Ω.
8. Non Contact Voltage (NCV): > 25V AC
PRESIONAR
PRESS
y RETENER
and
HOLD
9. Temperature
Features: HOLD MAX/MIN REL
• Do not apply voltage to thermocouple.
• Fahrenheit range: -22° to 752°F
• Celsius range: -30° to 400°C
SYMBOLS USED ON LCD
~
AC Measurement DC Measurement
-
AT
Negative DC Value Auto Range Active
O.L. Apo
Overload: Range Exceeded Auto Power-Off Active
Low Battery HOLD Hold Active
MIN MAX
Minimum Reading Maximum Reading
%
Duty Cycle Mode Frequency Mode
V A
Voltage Measurement Current in Amps
Ω
Resistance in Ohms Diode Test
F
Capacitance in Farads Continuity Test
n
Relative / Zero Mode Nano 10
-9
m µ
Milli 10 Micro 10
-3 -6
M k
Mega 10 6 Kilo 10 3
°F °C
Degrees Fahrenheit Degrees Celsius
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
400mV ˜ 400V 0.1mV ˜ 0.1V ± (0.5% + 4 digits)
1000V 1V ± (0.8% + 10 digits)
Overload Protection: 1000V
AC Voltage Measurement
Range Resolution Accuracy
400mV ˜ 750V 0.1mV ˜ 1V ± (2.0% + 5 digits)
Overload Protection: 750V RMS
Frequency Response: 40 to 400 Hz
Minimum Voltage for Frequency Measurement: 200mV
Response: True RMS
DC Current Measurement
Range Resolution Accuracy
400µA 0.1µA
± (1.2% + 3 digits)
2000µA 1µA
40A 0.01A ± (2.5% + 15 digits)
400A 0.1A ± (1.5% + 8 digits
Overload Protection:
Voltage: 600V RMS
•
Current: 2000µA
•
AC Current Measurement
•
Range Resolution Accuracy
400µA 0.1µA ± (2.0% + 5 digits)
2000µA 1µA ± (1.5% + 5 digits)
40A 0.01A ± (2.9% + 15 digits)
400A 0.1A ± (1.9% + 8 digits)
Overload Protection:
Voltage: 600V RMS
•
Current: 2000µA
•
Frequency: 45 to 400Hz
Minimum Current for Frequency Measurement: 400µA or 20A
Response: True RMS
Resistance Measurement
Range Resolution Accuracy
400 Ω ˜ 4M Ω 0.1 Ω ˜ 0.001M Ω ± (1.0% + 4 digits)
40M Ω 0.01M Ω
± (2.0% + 4 digits)
Overload Protection: 600V RMS
Capacitance Measurement
Range Resolution Accuracy
40nF ˜ 4000µF 0.01nF ˜ 1µF ± (3.5% + 6 digits)
Overload Protection: 600V RMS
Frequency Measurement
Range Resolution Accuracy
99.99Hz ˜ 499.9kHz 0.01Hz ˜ 0.1kHz ± (0.1% + 4 digits)
Overload Protection: 600V RMS Sensitivity: 1.8V RMS
Duty Cycle Measurement
Range Resolution Accuracy
0.1 ˜ 99.9% 0.1% ± (0.2% per kHz + 0.1% + 5 digits)
Overload Protection: 600V RMS
Diode Test
Overload Protection Range Test Current Open Circuit Voltage
< 1.6V DC
600V RMS 2.0V Appx. 0.25mA
Continuity Test
Overload Protection Open Circuit Voltage
600V RMS < 0.44V
Temperature Measurement
Range Resolution Accuracy
-22°~14°F (-30°~-10°C) 0.1°F (0.1°C) ±5.4°F (±3.0°C)
15°~752°F (-9°~400°C) 0.1°F (0.1°C) ±(1.0% + [3.6°F or 2.0°C])
Overload Protection: 30V RMS
Non Contact Voltage Detector
On Voltage
Appx. 25V AC
WARRANTY
See www.kleintools.com, contact Klein Tools at 1-877-775-5346, or visit a
distributor for warranty information.
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Caution:
This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
www.kleintools.com

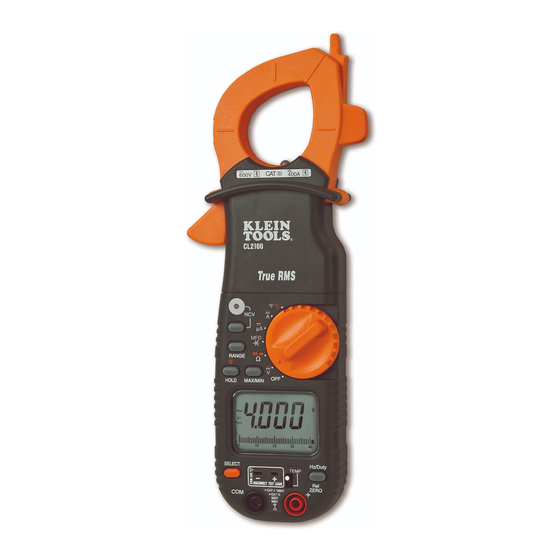

Instruction
Manual
CL2100
ENGLISH
• TRUE RMS
• DATA HOLD
• BACKLIGHT
• WORKLIGHT
• BAR GRAPH
• MAX / MIN
• 3-3/4 DIGIT
3999 COUNT LCD
• AUTO / MANUAL
RANGE
• NON CONTACT
VOLTAGE TESTER
• TEMPERATURE
www.kleintools.com
139663
