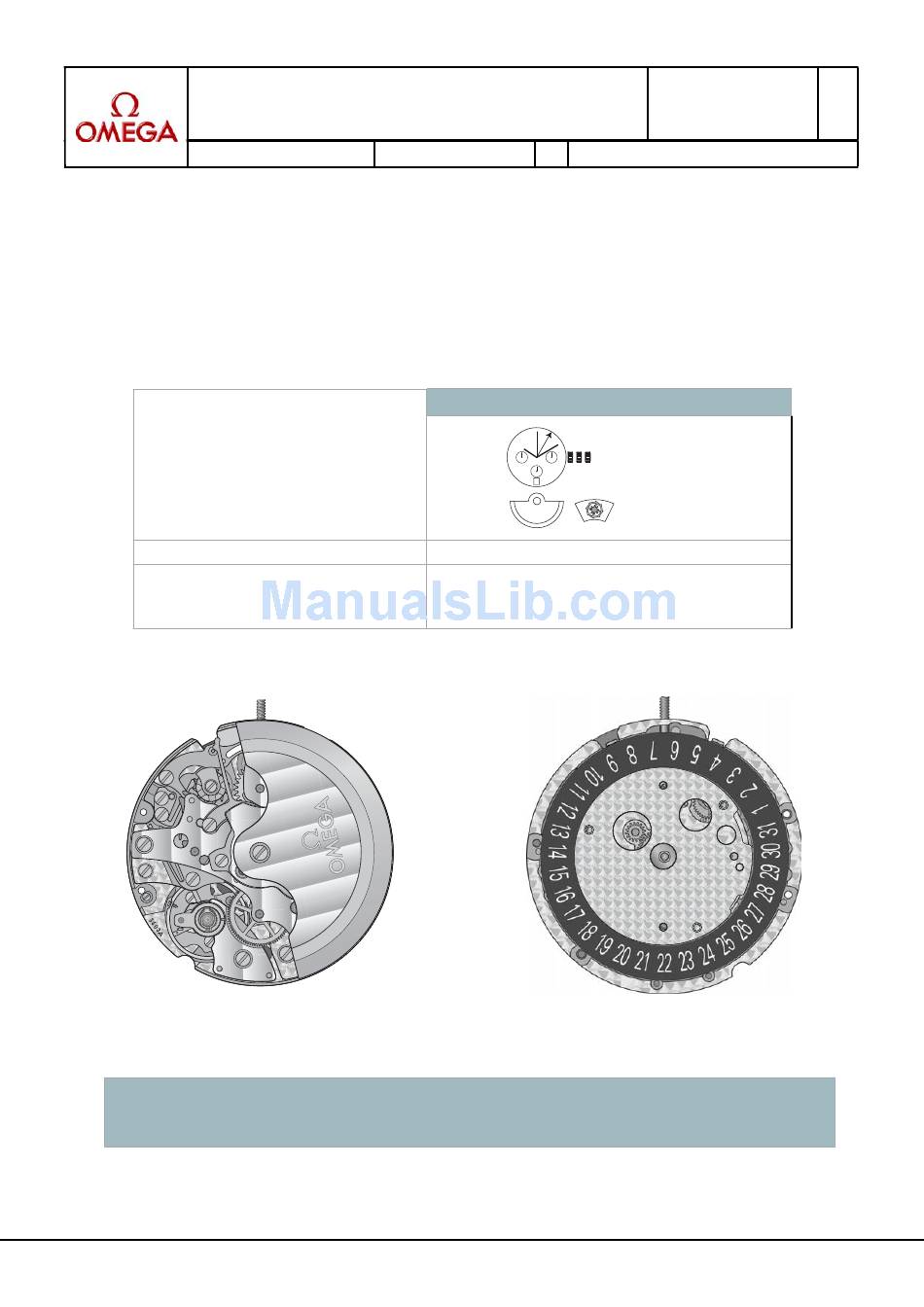

Technical Guide
TG-19-C-063-E
A
Made by : rendav
Date : 02.04.2009
3
CALIBRE
3603
Version A
12
'''
1 2 3
Ø 27 mm
j U
Height on movement
7.95 mm
Power reserve
52 h
Number of jewels
37
Frequency
4 Hz (28'800 A/h)
Automatic movement, exclusive Omega chronograph, , date, COSC-certified. Chronograph system with
column-wheel. 30-min. minute counter and 12-h hour counter . Chronograph, hour and minute display in centre.
Small second hand at 9 o'clock. GMT hand in the centre. Co-Axial escapement. Omega balance system
without index.
/1
OMEGA SA
WORLD SERVICE ORGANIZATION
GT-19-C-063-E - A - 3603
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omega Calibre 3603
Summary of Contents for Omega Calibre 3603
- Page 1 Automatic movement, exclusive Omega chronograph, , date, COSC-certified. Chronograph system with column-wheel. 30-min. minute counter and 12-h hour counter . Chronograph, hour and minute display in centre. Small second hand at 9 o’clock. GMT hand in the centre. Co-Axial escapement. Omega balance system without index.
-
Page 2: Table Of Contents
Chronograph wheel function / Description of chronograph system Escapement and Balance bridge installation Chronograph setting Hand setting for calibre 3603 / Checks, to carry out after hand-setting Principle of GMT function 25-27 Runners for hand setting and hand setting force / Epilame coating... -
Page 3: Gt-19-C-063-E - A
General information for calibre 3603 Balance bridge The bridges with serial numbers are not available (see CS-Info Calibre No 33). For exchange, see table : Exchange with serial no Balance bridge, For exchanges always sent to Omega. Version A (réf. 7223603A1005818) Engravings at Omega within 4 weeks. - Page 4 General information for calibre 3603 Customer Service lubrication of stud for crown wheel (31.023) and the 3 intermediate driving wheels for ratchet wheel (32.083): With the aim of constantly improving the performances and reliability of Omega products, the lubrication in Customer Service has been updated.
- Page 5 General information for calibre 3603 Lubrication of the 3 intermediate driving wheels for ratch- tet wheel (HP 1300 Sans Colorant) State before lubrication Insuffi cient lubrication Suffi cient lubrication = there is a ring around the stud with lubricant, easily visible...
-
Page 6: Dial Side
Exploded views - Dial side for calibre 3603 Parts listed in order of assembly 1 = 10027 7 = 61100 2 = 31121 8 = 51052 3 = 31120 9 = 33082 4 = 51010 10 = 51090 5 = 51083... -
Page 7: Movement Side
Exploded views - Movement side for calibre 3603 Parts listed in order of assembly 1 = 30012 9 = 35033 2 = 30014 10 = 56070 3 = 30025 11 = 65040 4 = 10048 12 = 6204 (1x) 5 = 7031 (2x) -
Page 8: Movement Side
Exploded views - Exploded views - Movement side for calibre 3603 Movement side for calibre 3603 Parts listed in order of assembly 1 = 31023 12 = 55130 2 = 81136 13 = 6004 (2x) 3 = 6204 (2x) 14 = 31022... -
Page 9: Movement Side
Exploded views - Movement side for calibre 3603 Parts listed in order of assembly 1 = 55240 12 = 6012 (2x) 2 = 55048 13 = 55143 3 = 6004 (1x) 14 = 6004 (1x) 4 = 30027** 15 = 30037... -
Page 10: Dial Side
Exploded views - Dial side for calibre 3603 Parts listed in order of assembly 1 = 31102 4 = 31042 2 = 36031 5 = 10062 3 = 31080** 6 = 6205 (2x) Moebius 9504 Moebius SYNT HP-1300 Sans Colorant... -
Page 11: Module Side
Exploded views - Module side for calibre 3603 Parts listed in order of assembly 1 = 13020 4 = 13040 2 = 31100 5 = 6205 (2x) 3 = 33011 Moebius SYNT HP-1300 Sans Colorant OMEGA SA WORLD SERVICE ORGANIZATION... -
Page 12: Dial Side
Exploded views - Dial side for calibre 3603 Parts listed in order of assembly 1 = 13020 2 = 6030 (3x) OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603... -
Page 13: Movement Side
Exploded views - Movement side for calibre 3603 Parts listed in order of assembly 1 = 12030 7 = 3203301 2 = 7033 (3x) 8 = 32031S2 3 = 32105 9 = 12050 4 = 32104 10 = 6033 (2x) -
Page 14: Dial Side
Exploded views - Dial side for calibre 3603 Parts listed in order of assembly 1 = 53040 8 = 53080 2 = 61100 9 = 63030 3 = 13100 10 = 33020 4 = 6205 (3x) 11 = 31047** 5 = 33029... - Page 15 Spare parts list for calibre 3603 Main plate, jewelled, Version Reference Calender plate Version Reference 3603A 7223603A10027 3603A 7223603A13020 Barrel bridge, pre-assembled Version Reference Intermediate date wheel bridge Version Reference 3603A 722330310041 3603A 7223603A13040 Wheel train bridge, jewelled Version Reference...
- Page 16 Spare parts list for calibre 3603 Great wheel Version Reference Reduction wheel Version Reference 3603A 722330330014 3603A 722330332031S2 Third wheel Version Reference Shock-absorber, upper Version Reference 3603A 722330330025 3603A 7223313B32027 Seconds wheel Version Reference Shock-absorber, lower Version Reference 3603A 7223603A30027**...
- Page 17 Spare parts list for calibre 3603 Driving wheel for date Version Reference Yoke Version Reference unlocking yoke 3603A 7223603A33029 3603A 722330351050 Date corrector intermediate Version Reference Rocking bar Version Reference setting wheel 1 3603A 7223303A33082 3603A 7223603A51052 Chronograph wheel Version...
- Page 18 Spare parts list for calibre 3603 Chronograph column wheel Version Reference Screw for stud Version Reference 3603A 722330355180 3603A 72233034002 Chronograph and Screw for automatic Version Reference Version Reference minute hammer device bridge 3603A 722330355240 3603A 72233036003 Hour hammer Version...
- Page 19 Spare parts list for calibre 3603 Screw for intermediate Version Reference date wheel bridge 3603A 72226016205 Screw for date jumper Version Reference maintaining plate 3603A 72226016205 Screw Mechanism cover Version Reference 3603A 72226016205 Screw for setting lever Version Reference 3603A...
