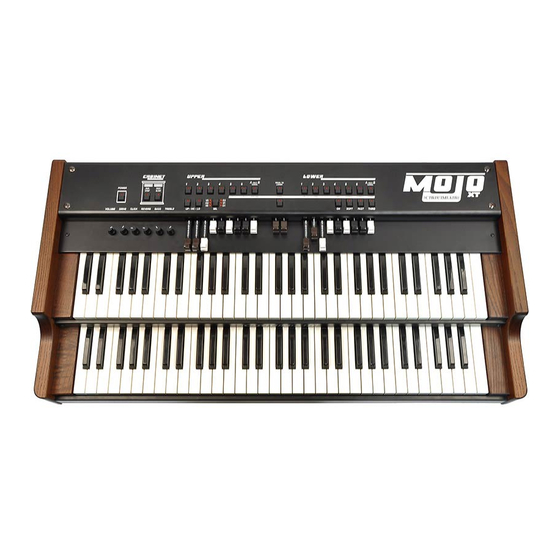

Summary of Contents for Crumar Mojo
- Page 1 User Manual Firmware Revision 1.4 MADE IN ITALY...
- Page 2 INDEX 1) GENERAL WARNINGS 2) PACKAGE AND HANDLING 3) INCLUDED ACCESSORIES 4) CONNECTIONS AND CONTROLS 5) START-UP AND SHUT-DOWN PROCEDURES 6) CRUMAR MOJO OVERVIEW 7) EDIT AND PROGRAMMING MODE 8) UPDATE 9) MAINTENANCE AND WARRANTY 10) ADDENDUM...
-
Page 3: General Warnings
• Do not touch the AC plug with wet hands. FACTORY DEFAULTS • The CRUMAR Mojo accepts voltages from 100V to 240V AC 50-60Hz through the original AC adapter. Be sure that local electrical standards are compliant with the instrument. - Page 4 • Do not place the instrument on anything containing water or other fluids. If any foreign objects enter the instrument, please contact your dealer or an authorized CRUMAR technical center. AC Power Information 1. Do not forcibly unplug the power cord.
-
Page 5: Package And Handling
Carefully remove the instrument from its packaging. The CRUMAR Mojo weighs just over 37 lbs (17 kg). Please set the CRUMAR Mojo on a stand rated at 44 lbs (20 kg). Please keep the original packaging material for future use. - Page 6 Back Panel Connections and Controls (Fig.1): Fig.1 1. Power: This plug is used to connect the CRUMAR Mojo power supply (12 Volt CC). Do not use any power supply other than the original unit that shipped with the instrument. 2. Motherboard Connections Access Slot: Connections to the motherboard can be accessed in this panel.
- Page 7 5. MIDI IN: This five-pole DIN connection is used to connect the CRUMAR Mojo to a device capable of sending MIDI data, such as a master keyboard or a pedal board. This connection is also used when updating the instrument’s firmware with MIDI Firmware Upload (MFU) technology.
- Page 8 10. Rotary Speed: This 6.3 mm stereo output jack connection is used to connect an optional foot pedal or front-mounted half-moon switch to control the speed of the internal rotary speaker simulation. Use only original CRUMAR pedals or switches. Other pedals or switches could damage the instrument.
- Page 9 The LED on the button blinks and sound is cancelled. When in “cancel” of lower manual, Mojo will start to transmit on midi channel 5 but with velocity: this will bypass all global velocity settings. This new feature is useful if you need to work with an external midi module receiving in midi channel 5.
- Page 10 For more information, see Section 7: Edit and Programming Mode. • Drawbars Section: The CRUMAR Mojo has 20 drawbars arranged into two sections of nine for the upper and lower manuals and a central section of two for the pedal tones.
- Page 11 One octave under the fundamental with repetition of first low octave 5-1/3' A fifth above the fundamental Fundamental An octave above the fundamental 2-2/3' An octave and a fifth above the fundamental Two octaves above the fundamental with repetition of the last upper octave 1-1/3' Two octaves and a third above the fundamental...
-
Page 12: Start-Up And Shut-Down Procedures
5) START-UP AND SHUT-DOWN PROCEDURES To start up the CRUMAR Mojo, the instrument needs to be powered on and the keyboards need to be synchronized with the software. START-UP PROCEDURE: 1. Connect the audio cables, expression pedal, sustain pedal and rotary speaker control cables. - Page 13 Many of these parameters can be edited from the control panel of the CRUMAR Mojo, which can be helpful to adjust the sound during live performances. Additional parameters can be edited via the Graphical User Interface (GUI),...
- Page 14 When the CRUMAR Mojo is restarted, the VB3 CE 2 software detects the values of the physical knobs and synchronizes the parameters accordingly. Even though these parameters can also be adjusted within the GUI, the values of the parameters reset to the values that match the physical settings of the controller whenever a preset is chosen, the “Manual”...
- Page 15 Percussion Volume * – This parameter controls the volume of the harmonic percussion effect when it is enabled on the panel of the CRUMAR Mojo. The Percussion Volume parameter can be adjusted from the CRUMAR Mojo control panel by pressing “Shift” and turning the “Treble”...
- Page 16 Reverb Length * – This parameter controls the duration of the spring reverb simulation. The Reverb Length parameter can be adjusted from the CRUMAR Mojo control panel by pressing “Shift” and turning the “Reverb” knob. Keyclick Length * – This parameter controls the duration of the keyclick effect. This effect simulates the attack transient when the nine key contacts on a tonewheel organ close.
- Page 17 7) EDIT AND PROGRAMMING MODE The CRUMAR Mojo’s “Edit” mode can be accessed by pressing the “Shift” button which is found just above the pedal drawbars on the top panel of the instrument. When “Edit” mode is engaged, the LED on the “Shift” button blinks. In “Edit” mode, various parameters related to sound and global functions can be controlled with buttons and knobs on the control panel.
- Page 18 This button is used to send an “all notes off” MIDI “panic” message to all 16 MIDI channels. This function also resets the CRUMAR Mojo MIDI interface. If this button is held for three seconds, the CRUMAR Mojo sends an “all notes off” message to all 16 MIDI channels and...
- Page 19 Lower Manual Preset 6 – Velocity This button is used to set the velocity mode of the two manuals of the CRUMAR Mojo. When using the CRUMAR Mojo to control external instruments or modules that are connected via MIDI, sounds that are velocity sensitive, such as pianos, will not respond as expected unless the velocity mode is set to “On.”...
- Page 20 This button is used to activate the vertical simulation output option for the rotary speaker simulation and to choose the output behavior. The CRUMAR Mojo offers six different output options when this button is used in conjunction with the “Manual Upper – Rotary Speaker On/Off”...
-
Page 21: Factory Reset
To save the assignment, click “Store” on the VB3 CE 2 interface. FACTORY RESET To reset the CRUMAR Mojo’s knobs and percussion and vibrato buttons to their original factory settings, press and hold the “Upper Manual” and “Lower Manual” buttons together for one second. - Page 22 Software updates can be used to update or replace the VB3 sound software installed in the instrument. Updates could include new features, updated parameters or bug fixes. Updates of the VB3 CE 2 are free for CRUMAR Mojo owners up to version 2. Visit www.crumar.it to find the most recent software versions.
-
Page 23: Maintenance And Warranty
CRUMAR service center or contact CRUMAR directly. Do not attempt any unassisted maintenance. The CRUMAR Mojo is covered under warranty for two years. This warranty covers all defects of the instrument not attributable to misuse by the owner. - Page 24 10) ADDENDUM CRUMAR MOJO MIDI IMPLEMENTATION CHART FUNCTION TRASMITTED RECOGNIZED REMARKS Basic Channel Default: :1-2 Changed: :1-2 4-5 : 3 with pedal to lower Mode Messages Default: Altered: Note Number 24-108 True Voice _______________ Velocity Note On Note Off Aftertouch...
- Page 26 MIDI FUNCTIONS TABLE STANDARD FUNCTIONS Controls Midi messages Type Upper Drawbar 16 Control Change Channel 1 n 12 Continuous Upper Drawbar 5-1/3 Control Change Channel 1 n 13 Continuous Upper Drawbar 8 Control Change Channel 1 n 14 Continuous Upper Drawbar 4 Control Change Channel 1 n 15 Continuous Upper Drawbar 2-2/3...
- Page 27 Crosstalk Control Change Channel 1 n 91 Continuous Keyclick Length Control Change Channel 1 n 92 Continuous Reverb Length Control Change Channel 1 n 93 Continuous Rotary Balance Control Change Channel 1 n 94 Continuous Percussion Volume Control Change Channel 1 n 95 Continuous Pedalboard Sustain Control Change Channel 1 n 96...
- Page 28 Manual Rev.6 – February, 2012 – Firmware v1.4 English Translation: Mitch Towne CRUMAR brand name and logo are trademarks of the respective owners. ASIO is a trademark of Steiberg Media Technologies GmbH Fatar and Waterfall Touch are trademarks of Fatar s.r.l.
