Summary of Contents for BEFCO CYCLONE C30-CE5

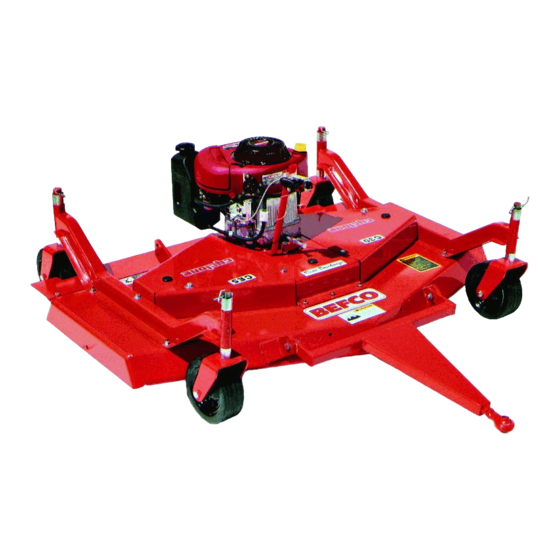

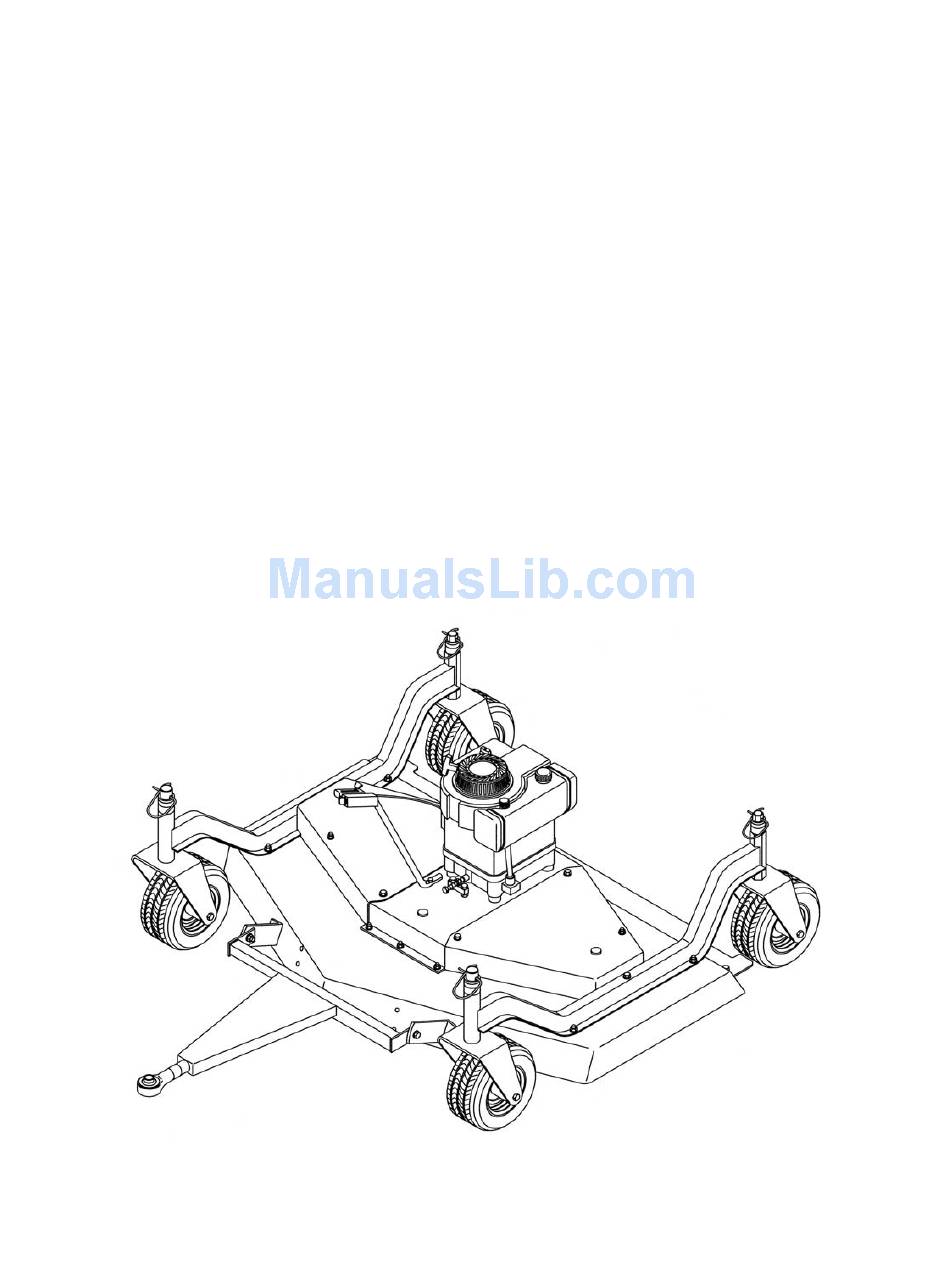

- Page 1 BEFCO ® Operator’s Manual CYCLONE Engine Driven Grooming Mower C30-CE5 The operator’s manual is a technical service guide and must always accompany the machine. Manual 960-110B April 2016...
-
Page 2: Signal Words
SAFETY Take note! This safety alert symbol found throughout this manual is used to call your attention to instructions involving your personal safety and the safety of others. Failure to follow these instructions can result in injury or death. This symbol means: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! -
Page 3: Table Of Contents
4.03 - Blade Maintenance 4.04 - Belt Tension 4.05 - Belts Replacement 5 - REPAIR PROCEDURES 5.01 - Blade Spindle 5.02 - Suggested Spare Parts 5.03 - Storage 6 - TROUBLESHOOTING 7 - PRE-DELIVERY CHECKLIST 8 - WARRANTY PARTS MANUAL BEFCO NDEX... -
Page 4: General Information
3. Normal wear items such as belts, blades, bearings, etc. 4. Depreciation or damage caused by normal wear, accidents, improper maintenance, improper protection or improper use. 5. The use of non-original spare parts and accessories. See Chapter 8 - Warranty. BEFCO ENERAL NFORMATION... -
Page 5: Model And Serial Number Id
Attached to the frame is an ID plate showing the model and the serial number. Record your implement model and serial number in the space provided below. Your dealer needs this information to give you prompt, efficient service when you order parts. BEFCO ENERAL NFORMATION... -
Page 6: Safety Precautions
10. Handle gasoline with care, it is highly flammable. Use only approved gasoline containers. 11. Never remove fuel cap or add gasoline to a running engine or a hot engine. Never fill the fuel tank indoors. If spilling occurs wipe up immediately. BEFCO AFETY RECAUTIONS... -
Page 7: Starting And Stopping
2. Before dismounting towing vehicle: allow moving parts to stop, stop both engines, set brake and remove the key of unattended equipment. 3. Keep away from rotating blades. 4. Keep guards and shields in place and in good condition. BEFCO AFETY RECAUTIONS... - Page 8 Additional warning and operating decals are available at no extra charge. Please specify model and serial number when ordering. Fig. 2 - Safety decals - implement; replace immediately if damaged. Red reflective decal right side left side BEFCO AFETY RECAUTIONS...
-
Page 9: Operation
Accidents are most likely to occur with machines that are loaned or rented to someone who has not read the operator’s manual and is not familiar with a rotary mower. BEFCO PERATION... - Page 10 22. When making tight turns, do not allow pull hitch to ride up on towing vehicle tires. 23. Inspect the entire machine periodically . Look for loose fasteners, worn or broken parts, and leaky or loose fittings. See Chapter 4 - Maintenance. BEFCO PERATION...
-
Page 11: Setup
IMPORTANT: Very low cutting heights should be avoided. Damaging shock loads occur when the blades strike the ground repeatedly. This can cause damage to the mower. See Chapter 7 - Pre-Delivery Checklist. BEFCO PERATION... -
Page 12: Pre-Operational Check
To attach the mower to the tractor do the following: 1. Back the towing vehicle up to the mower. 2. Turn off engine and set parking break of towing vehicle. 3. Attach a category 1 hitch pin to towing vehicle drawbar. See Table 1, page 25. BEFCO PERATION... -
Page 13: Start Up
11. Checking area for stones, branches and other debris that might be thrown. 12. Ensuring proper lighting is available, sunlight or good artificial lighting. 13. Ensuring the kill switch safety is properly attached. See Section 4.03 - Blade Maintenance. See Section 4.03 - Blade Maintenance. BEFCO PERATION... -
Page 14: Working Speed
6. Allow the mower blades to come to a complete stop before dismounting. 3.07 - Working Speed The mowing speed depends on ground conditions, mowing height, and grass thickness. Only a test run will enable you to gauge the optimal working speed for your conditions. BEFCO PERATION... -
Page 15: Operating Techniques
This mower has been designed to cut grass with heights from 4” to 8”. It is recommended to avoid cutting grass taller than 10”. For the best results, try cutting the grass at least once per week during growing season. Tall, dense grass should be cut at BEFCO PERATION... -
Page 16: Uneven Terrain
The following precautions should always be observed when working on uneven terrain: 1. In extremely uneven terrain rear wheel weights, front tractor weights, and/or tire ballast should be used to improve stability. See Sharpening Blades in section 4.03 - Blade Maintenance. BEFCO PERATION... -
Page 17: Transport
2. Beware of traffic on public roads. Install a SMV (Slow Moving Vehicle) sign when traveling on roads or streets. Comply with all federal, state and local laws. 3. Reduce ground speed when turning and take care that the implement does not strike obstacles such as trees, fences or buildings. BEFCO PERATION... -
Page 18: Maintenance
11. Do not attempt to mount a tire unless you have the proper equipment and experience to do the job. 12. Inflating or servicing tires can be dangerous. Whenever possible, trained personnel should be called to service and/or mount tires. BEFCO AINTENANCE... -
Page 19: Service
3. Also check blades for damage after hitting an obstruction. 4. Clean foreign material from mower deck and belt area. Fig. 5 Wheel yokes lubrication. Every 8 hours: Refer to Table 1 - Torque Specifications, page 25. See Section 4.03 - Blade Maintenance. BEFCO AINTENANCE... -
Page 20: Blade Maintenance
Installing or removing blades If the mower blades need to be installed, do the following: See Table 1, Torque Specifications, page 25. See Section 4.04 - Belt Tension. BEFCO AINTENANCE... - Page 21 WARNING: Do not substitute blades or any bolt for the blade retaining bolt. Company blades and blade retaining bolts are specially made for this application. Using non original parts can effect the quality of cut and may also cause damage to the mower. BEFCO AINTENANCE...
-
Page 22: Belt Tension
4.04 - Belt Tension The C30-CE5 mower is equipped with two belts, a main drive belt that runs from the centrifugal clutch to the center spindle pulley and a secondary belt that runs between the 3 pulleys. BEFCO AINTENANCE... -
Page 23: Belts Replacement
4. Loosen rear nuts holding central plate (do not remove them). 5. Remove front nuts holding central plate. 6. Release spring tensioner to loosen secondary belt. 7. Lift the front of the central plate and remove old belts. BEFCO AINTENANCE... - Page 24 10. Replace spring tensioner. 11. Check both belts for proper tension. 12. Reinstall the belt shields. Fig. 10 1. centrifugal clutch 2. central pulley 3. side pulleys 4. secondary belt 5. belt tensioner 6. hitch plate 7. spring 8. main belt BEFCO AINTENANCE...
- Page 25 Rotor Blades tip Cutting # Belts # Wheels & Engine width width rpm/min speed ft/min Blades height & type size C30-CE5 60” 62” 2673 14173 1” - 4” 2 BX 4 - 8.4”x3.2” Briggs & Stratton 10.5 HP BEFCO AINTENANCE...
-
Page 26: Repair Procedures
6. Cover the mower from the elements in order to have it in perfect condition for the start of the next season. See Section 4.05 - Belt Replacement. See Section 4.03 - Blade Maintenance. See Chapter 4 - Maintenance. BEFCO EPAIR ROCEDURES... -
Page 27: Troubleshooting
Cut grass Ground speed too low. Increase ground speed. windrows. Check engine speed. Mower engine Mower engine speed too slow. Increase engine speed. stalls often. Ground speed too fast. Decrease speed. Engine malfunction. Refer to Engine Operator’s Manual. BEFCO ROUBLESHOOTING... -
Page 28: Pre-Delivery Checklist
IMPORTANT: Warranty is not valid unless Pre-Delivery Checklist and Warranty Registration form in Operator’s Manual is completed in detail and mailed to the Company. Model Number: __________ Serial Number: __________ Delivery Date: __________ Dealer’s Signature: __________ BEFCO ELIVERY HECKLIST... -
Page 29: Warranty
1. LIMITED WARRANTY BEFCO, Inc. herein referred to as the Company, warrants its machines and related accessories, hereafter referred to as the Machine, to be free from defects in material and workmanship, for a period of twelve (12) months from the date of invoice to the first registered owner;... - Page 30 6. WARRANTY SERVICE Warranty Service must be performed by a dealer authorized by BEFCO. If the warranty service requested is approved, the owner shall pay only for labor beyond the rate allowed, for overtime labor, and for any mileage charge for transporting the equipment to and from the dealer’s shop.
-
Page 31: Warranty Registration
Operator’s Manual and literature published by the Company. Inspected by: Date: Date: Dealer’s Signature: Customer’s Signature: This registration along with a copy of the invoice must be sent to BEFCO, Inc. within 14 days of date of purchase. - Page 32 Place stamp here BEFCO, Inc. Warranty Department P.O. Box 6036 Rocky Mount, NC 27802-6036...
-
Page 33: Parts Manual
BEFCO ® Parts Manual CYCLONE Engine Driven Grooming Mower C30-CE5 BEFCO C30-CE5 (US).lwp Parts Manual 04/2016 Printed on April 13, 2016 C30-CE5 Ver. C... - Page 34 ’ YCLONE RAME PERATOR ANUAL C30-CE5 BEFCO ARTS ANUAL 04/2016...
- Page 35 Engine, Briggs & Stratton 000-8870 Spacer, engine adjustment 000-8851 Clutch centrifugal 503-658B Kill switch, complete 501-682B Throttle 000-8855 Bolt HH 7/16"-20x1.00" G8 Z F 000-8853 Spacer Part no longer available, customer should order part #503-891B instead. BEFCO ARTS ANUAL 04/2016...
- Page 36 ’ YCLONE RAME PERATOR ANUAL C30-CE5 BEFCO ARTS ANUAL 04/2016...
- Page 37 Washer flat Ø16 Z; Ver. C (#324153) & above 008-8658 Cap, plastic 000-5581 Nut PT M16-2.00 C6 Z TK 000-1278 Bolt HH M10-1.50x30 C8.8 Z F 000-9538 Bolt HH M20-2.50x45 C8.8 Z F 005-1570 002-3705 Nylon rope, front 2930 mm. 000-9757 U clamp complete BEFCO ARTS ANUAL 04/2016...
- Page 38 ’ YCLONE PINDLE PERATOR ANUAL C30-CE5 BEFCO ARTS ANUAL 01/2016...
- Page 39 000-8560 Disc spring 000-6659 Bolt blade SP M14-1.50x32 000-6698 Nut SP M25-1.50 Z 003-0156 Nut PT M10-1.50 C6 Z TK 000-1278 Bolt HH M10-1.50x30 C8.8 Z F 000-6626A Bearing 6205 ZZ 000-6621 Pulley SPB 130x2; C30-CE5 BEFCO ARTS ANUAL 01/2016...
- Page 40 ’ YCLONE ECALS PERATOR ANUAL C30-CE5 BEFCO ARTS ANUAL 01/2016...
- Page 41 950-298B Decal “Cyclone” 950-234B Decal “C30” 950-336B Decal “CE5” 950-226B DECAL “B” 950-106B Decal “BEFCO” 950-381B Decal “BEFCO, Inc.” address 950-358B Decal “Made in USA” 950-366B Decal, red reflective 960-110B Operator’s & Parts Manual “Cyclone C30-CE5” BEFCO ARTS ANUAL 01/2016...
- Page 42 ’ YCLONE CCESSORIES ULCHING PERATOR ANUAL C30-CE5 BEFCO ARTS ANUAL 01/2016...
- Page 43 Company. Technical information provided in this manual is approximate, the Company reserves the right to modify or improve the models shown for technical or commercial purposes. Pictures in this manual do not necessarily show the machine as delivered. BEFCO ARTS ANUAL 01/2016...
- Page 44 ® P.O. Box 6036 Rocky Mount, NC 27802-6036 Tel.: 252.977.9920 - Fax: 252.977.9718 www.befco.com ®...
