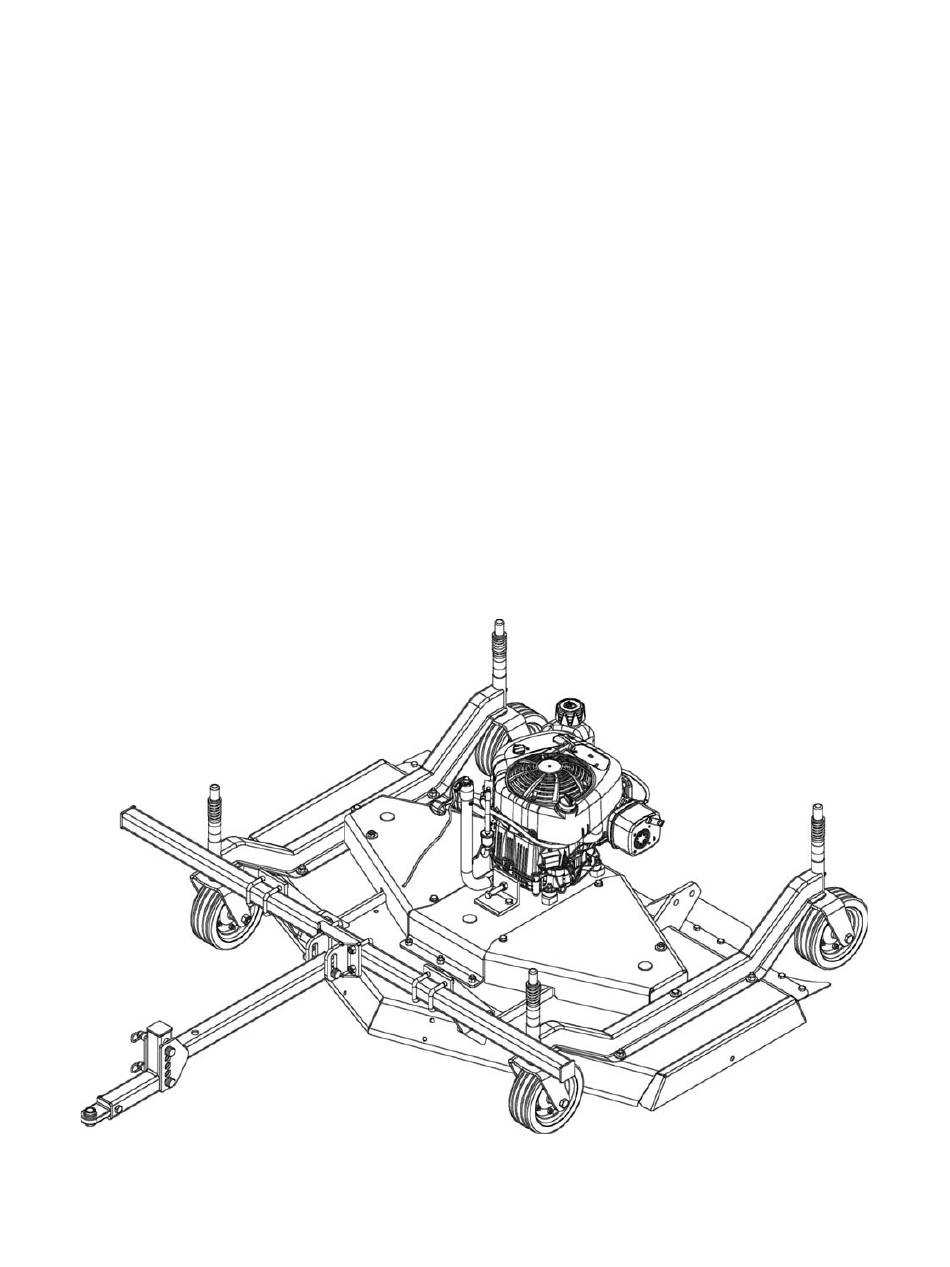

BEFCO
®
Operator's Manual
CYCLONE
Engine Driven Grooming Mower
C30-CE5H
(serial #345293 & above)
The operator's manual is a technical service guide and must always accompany the machine.
Manual 960-395B
January 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CYCLONE and is the answer not in the manual?

Questions and answers

Related Manuals for BEFCO CYCLONE

Summary of Contents for BEFCO CYCLONE

  • Page 1 BEFCO ® Operator’s Manual CYCLONE Engine Driven Grooming Mower C30-CE5H (serial #345293 & above) The operator’s manual is a technical service guide and must always accompany the machine. Manual 960-395B January 2021...

  • Page 2: Signal Words

    SAFETY Take note! This safety alert symbol found throughout this manual is used to call your attention to instructions involving your personal safety and the safety of others. Failure to follow these instructions can result in injury or death. This symbol means: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
  • Page 3 4.03 - Blade Maintenance 4.04 - Belt Tension 4.05 - Belts Replacement 5 - REPAIR PROCEDURES 5.01 - Blade Spindle 5.02 - Suggested Spare Parts 5.03 - Storage 6 - TROUBLESHOOTING 7 - PRE-DELIVERY CHECKLIST 8 - WARRANTY PARTS MANUAL BEFCO NDEX...

  • Page 4: General Information

    3. Normal wear items such as belts, blades, bearings, etc. 4. Depreciation or damage caused by normal wear, accidents, improper maintenance, improper protection or improper use. 5. The use of non-original spare parts and accessories. See Chapter 8 - Warranty. BEFCO ENERAL NFORMATION...

  • Page 5: Model And Serial Number Id

    Attached to the frame is an ID plate showing the model and the serial number. Record your implement model and serial number in the space provided below. Your dealer needs this information to give you prompt, efficient service when you order parts. BEFCO ENERAL NFORMATION...

  • Page 6: Safety Precautions

    10. Handle gasoline with care, it is highly flammable. Use only approved gasoline containers. 11. Never remove fuel cap or add gasoline to a running engine or a hot engine. Never fill the fuel tank indoors. If spilling occurs wipe up immediately. BEFCO AFETY RECAUTIONS...

  • Page 7: Starting And Stopping

    2. Before dismounting towing vehicle: allow moving parts to stop, stop both engines, set brake and remove the key of unattended equipment. 3. Keep away from rotating blades. 4. Keep guards and shields in place and in good condition. BEFCO AFETY RECAUTIONS...
  • Page 8 Additional warning and operating decals are available at no extra charge. Please specify model and serial number when ordering. Fig. 2 - Safety decals - implement; replace immediately if damaged. Placed under belt shields Red reflective decal right side left side BEFCO AFETY RECAUTIONS...

  • Page 9: Operational Safety

    3. Keep all helpers and bystanders at least 300 feet from a rotary mower. Only properly trained people should operate this machine. 4. The majority of accidents involve injury of bystanders by objects thrown by the rotating blades, and operators being knocked off the towing vehicle by low hanging BEFCO PERATION...
  • Page 10 21. Reduce speed on slopes and sharp turns to minimize tipping or loss of control. Be careful when changing directions on slopes. Do not start or stop suddenly on slopes. Avoid operation on steep slopes. 22. When making tight turns, do not allow pull hitch to ride up on towing vehicle tires. BEFCO PERATION...
  • Page 11 C30-CE5H mowers are shipped almost completely assembled. Follow the instructions below to assemble remaining items on the mower (see fig. 3). Fig. 3 - Assembly. drawbar attachment bracket hairpin cotter drawbar pins hitch bracket ball joint See Chapter 4 - Maintenance. See Chapter 7 - Pre-Delivery Checklist. BEFCO PERATION...

  • Page 12: Cutting Height Adjustment

    Before working under mower install blocks under the deck to prevent it from falling. Fig. 4 The cutting height is adjusted by moving the height adjustment spacers on the wheel yokes above or below the wheel arm. BEFCO PERATION...
  • Page 13 15. Disconnect drawbar from the height adjustment stand. 16. Reassemble hitch bracket to the drawbar using two Ø19 pins and two Ø4 cotter pins. 17. Secure the drawbar to the mower using the remaining Ø19 pin and Ø4 cotter pin. BEFCO PERATION...

  • Page 14: Pre-Operational Check

    3.06 - Attaching to the Vehicle The hitch on the C30-CE5H allows the mower to be set up to be either towed behind the vehicle or pushed in front of the vehicle. See Table 1, page 29. BEFCO PERATION...
  • Page 15 Tightening the bolt will remove any slack between the male and female part of the receiver. This will allow for the mower to track better and remove any slack that can be noticed when turning. 2. Turn off engine and set parking break of vehicle. BEFCO PERATION...
  • Page 16 In other cases, offsetting the mower allows the operator to safely mow closer to obstacles (for example, near the edge of a pond or under trees). BEFCO PERATION...
  • Page 17 10. Making sure the proper attire is worn. Avoiding loose fitting clothing which can become entangled. Wearing sturdy, tough-soled work shoes and protective equipment for eyes, hands, ears and head. Never operate mower in bare feet, sandals or sneakers. See Section 4.03 - Blade Maintenance. See Section 4.03 - Blade Maintenance. BEFCO PERATION...
  • Page 18 1. Idle the engine down. 2. Set parking brake. 3. Pull out kill switch plug. 4. Stop the engine of the towing vehicle. 5. Close fuel valve. 6. Allow the mower blades to come to a complete stop before dismounting. BEFCO PERATION...

  • Page 19: Working Speed

    4. Type of terrain. 5. Grass condition, wet or dry. This mower has been designed to cut grass with heights from 4” to 8”. It is recommended to avoid cutting grass taller than 10”. For the best results, try cutting the BEFCO PERATION...

  • Page 20: Uneven Terrain

    1. In extremely uneven terrain rear wheel weights, front tractor weights, and/or tire ballast should be used to improve stability. 2. Observe the type of terrain and develop a safe working pattern. See Sharpening Blades in section 4.03 - Blade Maintenance. BEFCO PERATION...
  • Page 21 (see fig. 12). Make sure that the lift point is directly above the engine to keep the weight balanced. Slowly raise the unit to make sure the weight is balanced correctly. See Table 2 - page 29. BEFCO PERATION...

  • Page 22: Maintenance Safety

    11. Do not attempt to mount a tire unless you have the proper equipment and experience to do the job. 12. Inflating or servicing tires can be dangerous. Whenever possible, trained personnel should be called to service and/or mount tires. BEFCO AINTENANCE...
  • Page 23 Use a good quality SAE multipurpose type grease for all locations shown. Be sure to clean fittings thoroughly before using grease gun. Refer to engine manufacturer’s operator’s manual for service requirements on engine. Refer to Table 1 - Torque Specifications, page 29. BEFCO AINTENANCE...

  • Page 24: Blade Maintenance

    3. With a wrench, block the spindle and tighten the bolt to 103 lb.ft. (see fig. 15). 4. To remove the blades reverse the procedure. See Section 4.03 - Blade Maintenance. See Table 1, Torque Specifications, page 29. See Section 4.04 - Belt Tension. BEFCO AINTENANCE...
  • Page 25 7. blade 2. hexagonal nut 8. cup washer 3. pulley 9. blade bolt 4. rotor support 10. cutting edge close to ground 5. cover 11. lift wing 6. shaft Fig. 15 1. spindle 2. blade 3. blade bolt BEFCO AINTENANCE...

  • Page 26: Belt Tension

    The belt deflection should be between ”- ”. 2. Check the secondary belt tension by applying a force of 12-15 lb. pushing against the belt halfway between the pulleys. The belt deflection should be between ”- ”. BEFCO AINTENANCE...
  • Page 27 Fig. 17 - Secondary belt positioning. 1. tensioner 2. secondary belt 3. side pulley 4. spring 5. hitch plate BEFCO AINTENANCE...

  • Page 28: Belts Replacement

    10. Replace spring tensioner. 11. Check both belts for proper tension. 12. Reinstall the belt shields. Fig. 18 1. centrifugal clutch 2. central pulley 3. side pulleys 4. secondary belt 5. belt tensioner 6. hitch plate 7. spring 8. main belt BEFCO AINTENANCE...
  • Page 29 Rotor Blades tip Cutting # Belts # Wheels & Engine width width rpm/min speed ft/min Blades height & type size C30-CE5H 60” 65” 2673 14173 1” - 4” 2 BX 4 - 8.4”x3.2” Briggs & Stratton 11.5 HP BEFCO AINTENANCE...
  • Page 30 ’ YCLONE PERATOR ANUAL TABLE 3 - OVERALL DIMENSIONS 24" 60" 91" 65" BEFCO AINTENANCE...

  • Page 31: Repair Procedures

    6. Cover the mower from the elements in order to have it in perfect condition for the start of the next season. See Section 4.05 - Belt Replacement. See Section 4.03 - Blade Maintenance. See Chapter 4 - Maintenance. BEFCO EPAIR ROCEDURES...

  • Page 32: Troubleshooting

    Blades worn down, preventing Change blades. overlap. Cut grass Ground speed too low. Increase ground speed. windrows. Check engine speed. Mower does not Front wheel yokes loose. Tighten nuts on front yokes to tow straight prevent wheels from pivoting. behind tractor. BEFCO ROUBLESHOOTING...
  • Page 33 Engine out of gasoline. Refill engine. does not start. Safety kill switch disengaged. Re-insert safety kill switch. Throttle lever not on "CHOKE". Place lever on "CHOKE" Carburetor flooded. Clean out carburetor. Engine not grounded. Check wiring for correct grounding. BEFCO ROUBLESHOOTING...

  • Page 34: Pre-Delivery Checklist

    IMPORTANT: Warranty is not valid unless Pre-Delivery Checklist and Warranty Registration form in Operator’s Manual is completed in detail and mailed to the Company. Model Number: __________ Serial Number: __________ Delivery Date: __________ Dealer’s Signature: __________ BEFCO ELIVERY HECKLIST...

  • Page 35: Warranty

    1. LIMITED WARRANTY BEFCO, Inc. herein referred to as the Company, warrants its machines and related accessories, hereafter referred to as the Machine, to be free from defects in material and workmanship, for a period of twelve (12) months from the date of invoice to the first registered owner;...
  • Page 36 6. WARRANTY SERVICE Warranty Service must be performed by a dealer authorized by BEFCO. If the warranty service requested is approved, the owner shall pay only for labor beyond the rate allowed, for overtime labor, and for any mileage charge for transporting the equipment to and from the dealer’s shop.

  • Page 37: Warranty Registration

    Operator’s Manual and literature published by the Company. Inspected by: Date: Date: Dealer’s Signature: Customer’s Signature: This registration along with a copy of the invoice must be sent to BEFCO, Inc. within 14 days of date of purchase.
  • Page 38 Place stamp here BEFCO, Inc. Warranty Department P.O. Box 6036 Rocky Mount, NC 27802-6036...

  • Page 39: Parts Manual

    BEFCO ® Parts Manual CYCLONE Engine Driven Grooming Mower C30-CE5H (serial #345293 & above) BEFCO C30-CE5H, 345293+(US).lwp Parts Manual 0121 Printed on January 11, 2021 C30-CE5H Ver. D...
  • Page 40 & S ’ YCLONE ELTS PINDLES PERATOR ANUAL C30-CE5H BEFCO ARTS ANUAL 0121...
  • Page 41 000-6636 Cover 000-6606 Shim Ø25x35x2 000-6626A Bearing 6205-ZZ 000-8538 Support, spindle shaft 000-8536 Spacer 000-6634A Bearing 6205-Z 000-8533 Spindle assembly 000-8807 Shaft, central spindle; C30-CE5H 000-8533M Central spindle assembly, complete; C30-CE5H 025-1501P Frame, rear discharge 60" BEFCO ARTS ANUAL 0121...
  • Page 42 & T ’ YCLONE OTOR HROTTLE SWITCH PERATOR ANUAL C30-CE5H BEFCO ARTS ANUAL 0121...
  • Page 43 Kill switch, complete 000-8824 Ring Ø25 002-3705 Nylon rope, front 2930 mm. 501-682B Throttle 000-8730 Bolt CR M06-1.00x80 C4.8 Z 005-0166 Washer flat Ø06 Z 005-0165 Nut ES M06-1.00 Z TK 000-8825 Throttle & kill switch assembly, complete BEFCO ARTS ANUAL 0121...
  • Page 44 & W ’ YCLONE ELT SHIELDS HEEL ARMS PERATOR ANUAL C30-CE5H BEFCO ARTS ANUAL 0121...
  • Page 45 Nut PT M14-2.00 C6 Z TK 020-8817 Belt shield 60” 000-6647 003-3176 Bolt HH M10-1.50x25 C8.8 Z F 000-8818 Bolt HH M10-1.50x110 C8.8 Z F 001-4106 Nut ES M10-1.50 Z TK 001-5237 Nut ES M10-1.50 Z TN 005-1570 BEFCO ARTS ANUAL 0121...
  • Page 46 ’ YCLONE RAWBAR PERATOR ANUAL C30-CE5H BEFCO ARTS ANUAL 0121...
  • Page 47 Bolt "U" M12-1.75x76x51 Z 009-4139 Nut ES M12-1.75 TN Z 000-8748 Offset bar 000-8750 Mounting bracket, offset bar 000-6578 Bolt HH M16-2.00x45 C8.8 Z F 000-5581 Nut PT M16-2.00 C6 Z TK 000-8780 Height adjustment stand BEFCO ARTS ANUAL 0121...
  • Page 48 ’ YCLONE ECALS PERATOR ANUAL C30-CE5H BEFCO ARTS ANUAL 0121...
  • Page 49 Decal “CAUTION - To avoid serious injury” 950-298B Decal “Cyclone” 950-234B Decal “C30” 950-336B Decal “CE5” 950-226B Decal “B” 950-106B Decal “BEFCO” 950-358B Decal “Made in USA” 950-366B Decal, red reflective 937-0194 Decal, "grease" 960-395B Operator’s & Parts Manual “Cyclone C30-CE5H” #345293+ BEFCO ARTS ANUAL 0121...
  • Page 50 ’ YCLONE CCESSORIES RONT OLLER AND ULCHING PERATOR ANUAL C30-CE5H BEFCO ARTS ANUAL 0121...
  • Page 51 Front roller 3” 011-2087 Cotter pin Ø4x50 Z 000-8923 Roller support, right 020-8924 Roller support, left 000-2034 Washer flat Ø10 Z 003-3176 Bolt HH M10-1.50x25 C8.8 Z F 001-600 Front roller, complete 005-600 Mulching kit 60”, complete BEFCO ARTS ANUAL 0121...
  • Page 52 ® P.O. Box 6036 Rocky Mount, NC 27802-6036 Tel.: 252.977.9920 - Fax: 252.977.9718 www.befco.com ®...
